| Prod Model: |
SZB5T-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Brine Pool 380V 5t Ice Block Maker |
| Refrigeration Capacity: |
45.2kw |
| Ice Machine Running Power: |
22.8kw |
| Recommended Generator: |
100kVA |
| Unit Ice Weigt: |
20kg |
| Ice Can Quantity: |
88PCS |
| Ice Block Making Time: |
8h |
| Compressor Brand: |
Copeland |
| Ice Mold Material: |
Stainless Steel |
| Control System: |
Schneider Electrical Part |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
| Condition: |
New |
Product Description
Product Detailed Description:

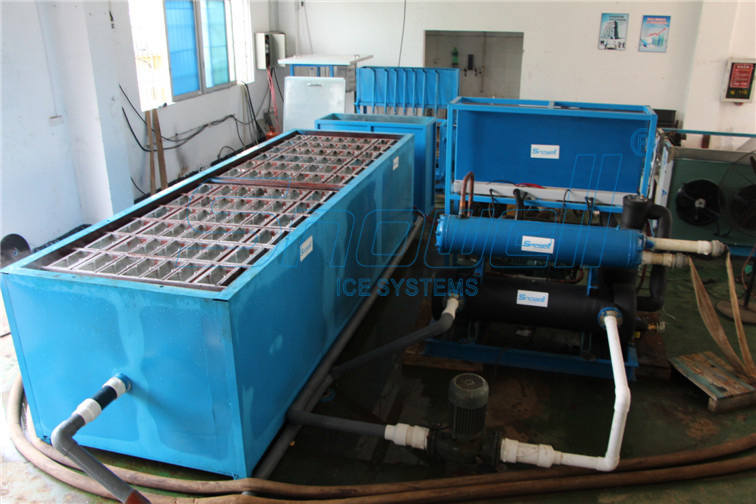

Brine Pool 380V 5T Ice Block Maker
Additional Detailed Specifications for the ice block machine:
| NO. | Description | Specs. |
| 1 | Product Name | Snowell 5T Ice Block Making Machine |
| 2 | Refrigeration capacity | 45.2 kW |
| 3 | Running Current | 43.4A |
| 4 | Cooling mode | Water cooling |
| 5 | Block Ice Weight | 20 KG |
| 6 | Evaporating temp. | -15°C |
| 7 | Condensing temp. | 45°C |
| 8 | Flake ice temp. | -5°C |
| 9 | Thickness of flake ice | 1.5-2.2mm |
| 10 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 11 | Design ambient temp. | 25°C |
| 12 | Design water inlet temp. | 18°C |
SNOWELL small ice block machine has adopted the newest international ice machine making technology. We use and only use world famous components like Bitzer,Bock, Danfoss,Schneider and so on.
Compare to other supplier of ice block machine machinery in the industry, SNOWELL ICE SYSTEMS owns its unique technology and get much more better performance.
1. Superb Stability and reliability, long use life.
2. User-friendly design, intellectualized PLC touch-screen controller
* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.
* The intellectualized historical failure record
* Function and guidance of trouble shooting makes easier and simple operation and maintenance.
* Running time setting function convenience operator,
* Saving energy and reduce cost for the ice block machine.
3. Sub-cooled ice, excellent fast cooling
Super cold, 100% sub cooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost for the ice block machine
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. Energy-efficient and cost saving for the ice block machine
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines (like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2: What is the payment terms and trder terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
