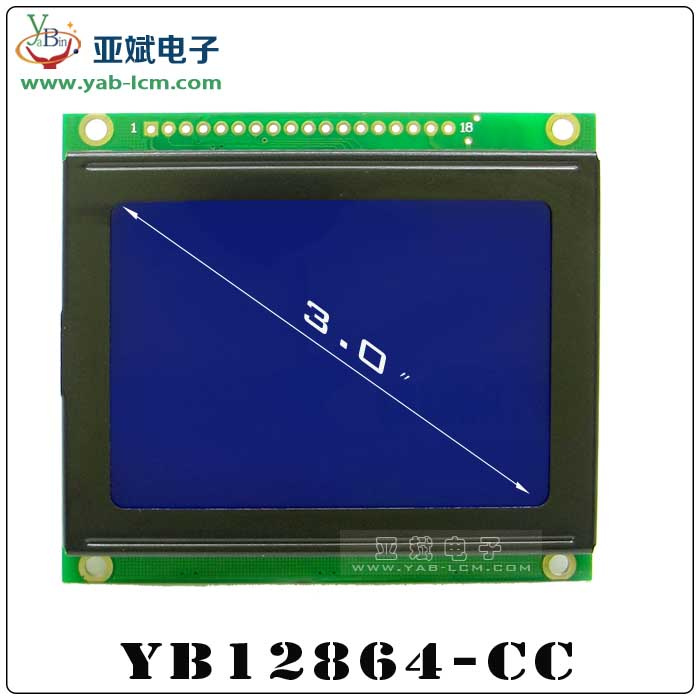

Blue 128 * 64 Graphic Liquid Crystal Display (3.3V/5Voptional)
| Price: |
US $ 6.59-7.74/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
YB12864CC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
128*64 Dots |
| Outline Dimension: |
78(W)*70(H)*12.11(T)Mm |
| Visual Area: |
62*44 Mm |
| Active Area: |
56.27(W)*38.35(H)Mm |
| Diagonal Size: |
3.0 Inch |
| IC Or Equivalent: |
Ks0107/S6b0107/Sbn6400 or Eqv |
| Interface: |
6800 8-Bitparallel |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Grey |
| Power Supply(Typ): |
3.3V/5V |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
6.0 |
Product Description
1.The product description
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB12864CC |
| Display Format | 128*64 Dots |
| Outline Dimension | 78(W)*70(H)*12.11(T)mm |
| Visual Area | 62*44 mm |
| Active Area | 56.27(W)*38.35(H)mm |
| Character Size | NO |
| Diagonal Size | 3.0 inch |
| Dot (Pixel) Size | 0.39*0.55mm |
| Dot (Pixel) Pitch | 0.44*0.6mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Grey |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
2.the interface definition
| ITEM | SYMBOL | LEVEL | FUNCTIONS |
| 1 | VSS | 0V | Power Ground |
| 2 | VDD | 5.0V | Power Supply For Logic |
| 3 | V0 | - | Negative Voltage output for LCD |
| 4 | RS(CS) | H/L | H:Data L:Instruction Code | Serial Chip Selection |
| 5 | R/W(SID) | H/L | H:Read L:Write | Serial Data Signal |
| 6 | E(SCLK) | H,H->L | Enable Signal | Serial Clock Signal |
| 7-14 | DB0-DB7 | H/L | Data Bus | No Connection |
| 15 | PSB | H/L | H:Parallel mode L:Serial mode |
| 16 | NC | - | No Connection |
| 17 | RST | L | Reset Signal |
| 18 | NC/VEE | - | No Connection/Negative Voltage Output |
| 19 | BLA | +5V | Power Supply For LED Backlight |
| 20 | BLK | 0V |
3.product introduction
| All kinds of graphic liquid crystal display |
Series
Number | inch | Display
Format | Outline
Dimension | Active
Area | mounting
dimension | Point
size | Driver
IC | voltage /V |
| 3.3 | 5 |
| 12232-A | 2.4 | 122x32 | 84x44 | 60x18 | 79x36 | 0.35x0.4 | SED1520 |
| √ |
| 12232-B | 2.4 | 122x32 | 84x44 | 60x18 | 79.1x36 | 0.35x0.4 | SED1520 |
| √ |
| 12832-A | 3.1 | 128x32 | 110x65 | 76x25 | 105x61 | 0.52x0.52 | KS0108 | √ | √ |
| 12832-D | 3.1 | 128*32 | 110x65 | 76x25 | 105x61 | 0.52x0.52 | KS0108 | √ | √ |
| 12864-A | 3.27 | 128x64 | 113x65 | 73.4x38.8 | 105x57 | 0.48x0.48 | KS0108 | √ | √ |
| 12864-D | 3.1 | 128x64 | 93x70 | 70X38.8 | 88x65 | 0.48x0.48 | KS0108 | √ | √ |
| 12864-G | 4.2 | 128x64 | 107x85 | 88x60 | 100x78 | 0.6x0.8 | KS0108 | √ | √ |
| 12864-I | 2 | 128x64 | 54x50 | 43.5x29 | 49x45 | 0.28x0.35 | KS0108 | √ | √ |
| 12864-J | 2.7 | 128x64 | 75x54.7 | 60x32.6 | 70x49.7 | 0.4x0.4 | KS0108 | √ | √ |
| 12864-L | 3 | 128x64 | 78x70 | 62X44 | 68x65 | 0.39X0.55 | KS0108 | √ | √ |
| 16080-D | 5.6 | 160x80 | 152.5x72.5 | 128x64 |
| 7.1x6.8 | KS0086 | √ | √ |
| 19264-A | 4.4 | 192x64 | 130x65 | 104x39 | 121x53 | 0.458x0.458 | KS0108B | √ | √ |
| 19264-B | 3.5 | 192x64 | 100X60 | 84x31 | 93x55 | 0.37x0.37 | KS0108B | √ | √ |
| 19264-E | 4.4 | 192x64 | 122x62 | 115x57 | 115x57 | 0.458x0.458 | KS0108B | √ | √ |
| 160128-C | 5.1 | 160x128 | 129x102 | 101x82 | 122x96 | 0.54x0.54 | RA6963 | √ | √ |
| 24064-B | 5.4 | 240x64 | 180x65 | 132x39 | 176x54 | 0.49x0.49 | RA6963 | √ | √ |
| 240128-A | 5.1 | 240x128 | 144x104 | 114x64 | 138x97 | 0.4x0.4 | RA6963 | √ | √ |
| 240128-B | 5.1 | 240x128 | 144x104 | 114x64 | 138x97 | 0.4x0.4 | RA6963 | √ | √ |
| 320240-A | 5.7 | 320x240 | 160x109 | 122x92 | 152.3x104.7 | 0.33x0.33 | RA8835 | √ | √ |
| 320240-B | 5.7 | 320x240 | 160x109 | 122x92 | 152.3x104.7 | 0.33x0.33 | RA8835 | √ | √ |
| 320240-D | 5.1 | 320x240 | 139x100 | 103x79 | 131x97.5 | 0.27x0.27 | RA8835 | √ | √ |
|
|
|
|
|
|
|
|
|
|
4.sphere of application
| 1. Used for temperature humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter. |
| 2. The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie. |
| 3. The massager, treadmill, fat meter. |
| 4. Air conditioning, microwave ovens, remote control. |
| 5. Learning machine, electronic dictionaries, calculators. |
| 6. Nc tanker, industrial computer. |
| 7. Video games, calendar, clock and watch all sorts of instruments and meters, such as financial communications, health care instrument. |
