| Prod Model: |
YB12864G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Character Dots: |
128*64 |
| Visual Angle: |
6h |
| Color: |
Blue, Yellow, Green, Gray |
| Contrast: |
Adjustable |
| Power Supply(Typ): |
5V |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
China guangdong, shenzhen alex electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises.
Products cover the TN, HTN, the STN, FSTN, TFT LCD series products, including COB, TAB, COG, etc. Series of liquid crystal display module.The main products are: character lattice, the graph lattice, character and period of code standard or non-standard modules, and can customize according to the requirements of your company processing all kinds of liquid crystal display module.Products can be widely applied to the temperature and humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter;The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie;Massager, treadmill, fat instrument;Air conditioning, microwave ovens, remote control;Learning machine, electronic dictionary, calculator;Nc tanker, industrial control;Game consoles, perpetual calendar, watches, instruments and meters, finance, communications, health care instrument and with the domestic and foreign many well-known manufacturers to establish a long-term good cooperative partnership.
The company has the first-class high quality talent team of science and technology and scientific management mode and perfect pre-sale and after-sale service system.Technology development ability;Development cycle is short, fast respond to customer feedback.Companies with advanced technology advantage, strong human resource base, in the fierce competition keep advantage. Good reputation has won the broad masses of users groups.
"Quality first, strives for perfection," take honestly as industry, sincere cooperation "!
The company in a professional design, development, customization, processing!Now emphatically recommended products: TFT1.5 inch LCD display advantage supply

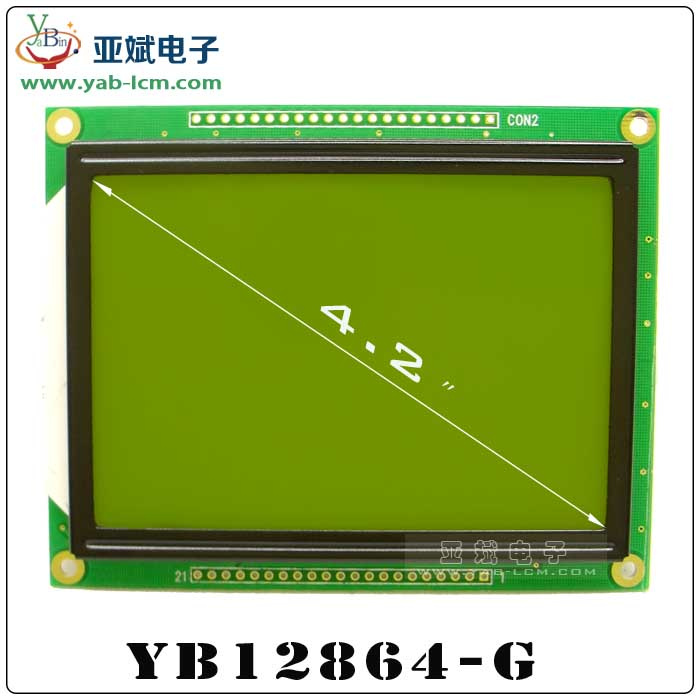

| 12864G |
|
|
|
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB12864G |
| Display Format | 128*64 Dots |
| Outline Dimension | 107.0*85.0*12.0mm |
| Visual Area | 88.0*60.0mm |
| Active Area | 83.15*54.35mm |
| Diagonal Size | 4.19 inch |
| Dot (Pixel) Size | 0.6*0.8mm |
| Dot (Pixel) Pitch | 0.65*0.85mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bit Parallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
| pin | symboy | level |
| 1 | VDD | 5.0V |
| 2 | VSS | 0V |
| 3 | VO | Negative pressure |
| 4 | RS | H/L |
| 5 | R/W | H/L |
| 6 | E | H.H→L |
| 7-14 | DBO-DB7 | H/L |
| 15 | CS1 | L |
| 16 | CS2 | L |
| 17 | /RST | L |
| 18 | Vout | Negative pressure |
| 19 | LEDA | 5.0V |
| 20 | LEDK | 0V |
| 21 | ON/OFF |
|
Shenzhen YABIN Electronics Co., Ltd., set up in the year of 2008, is a high-tech enterprise specialized in producing LCD and LCM. Our company has more than 1000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. Moreover, our company has passed ISO9001 certification and specialized in producing all kinds of LCD with the thickness of 1.1mm, 0.7mm, 0.55mm and 0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT and OLED models.
We are famous for our superior quality, competitive prices, first-class craftwork, safe package and prompt delivery. Therefore, we can fully meet your demands. Apart from our own products, we also provide OEM & ODM services.
The products in our company are widely used in electricity, acoustic equipment, communication, industrial equipment, car acoustic and other fields. Over 60% of our products have been sold to Japan, Korea, Hong Kong and Taiwan area. We always insist on the dealing theory of "excellent quality, and superb service", taking innovative technology and science management very seriously, and strengthening quality, technology, environment and management system. We will keep working hard to achieve success with customers.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
