| Prod Model: |
B1T-R4A |
| Product Name: |
Ice Block Maker Machine From Snowell |
| Ice Machine Refrigeration Capacity: |
8.35kw |
| Ice Machine Running Power: |
5.4kw |
| Recommended Generator: |
12kVA |
| Uint Ice Weigt: |
10kg |
| Ice Can Quantity: |
28 Pieces |
| Ice Block Making Time: |
6h |
| Compressor Brand: |
Copeland |
| Ice Mold Material: |
Stainless Steel |
| Warranty: |
2 Years |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
| Condition: |
New |
Product Description
Detailes Description:

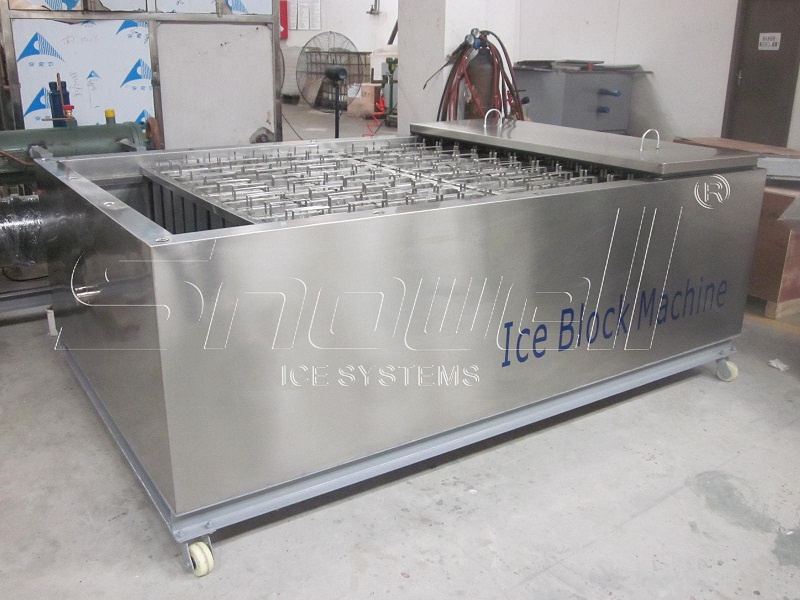

Block Ice Making Maker for Making 1t Ice Block within One Day.
SNOWELL block ice machine has adopted the newest international ice machine making technology. We use and only use world famous components like Bitzer,Bock, Danfoss,Schneider and so on.
Additional Detailed Specifications for the block ice machine:
| NO. | Description | Specs. |
| 1 | Product Name | Snowell 1T block ice machine |
| 2 | Refrigeration capacity | 8.35kW |
| 3 | Total input | 5.4kW |
| 4 | Cooling mode | Air cooling |
| 5 | Block Ice Weight | 10KG |
| 6 | Evaporating temp. | -15°C |
| 7 | Condensing temp. | 45°C |
| 8 | Flake ice temp. | -5°C |
| 9 | Thickness of flake ice | 1.5-2.2mm |
| 10 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 11 | Design ambient temp. | 25°C |
| 12 | Design water inlet temp. | 18°C |
Compare to other supplier of block ice machine in the industry, SNOWELL ICE SYSTEMS owns its unique technology and get much more better performance.
1. Superb Stability and reliability, long use life.
2. User-friendly design, intellectualized PLC touch-screen controller
* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.
* The intellectualized historical failure record
* Function and guidance of trouble shooting makes easier and simple operation and maintenance.
* Running time setting function convenience operator,
* Saving energy and reduce cost.
3. Sub-cooled ice, excellent fast cooling
Super cold, 100% sub cooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost for the block ice machine
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. Energy-efficient and cost saving for the block ice machine
Applications fields of this block ice machine:
1. Large concrete pouring project
2. Man-Made snow making project
3. Chemical Industry
4. Fishery. aquatic products processing and vegetables & fruits preservation
5. Food Fermentation
6. Meat, dairy products processing and the other food industries.
Block Ice Features:
1. Directly formed at low temperatures,block ice are as cold as minus 8°C.
2. Big contact area and good mobility ensure the full contact with refrigerated objects, like fish, concrete and so on.
3. No acute edges or Conner. No damage to fish skin or else.
After-sales Service for all the block ice machine
1. Two years warranty
2. Offer Spare parts free of charge within the warranty period.
3. Technical Documents
When beyond the warranty, Snowell will supply the parts and service only for factory price.
Company Profile
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2. What is the payment terms and trade terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
