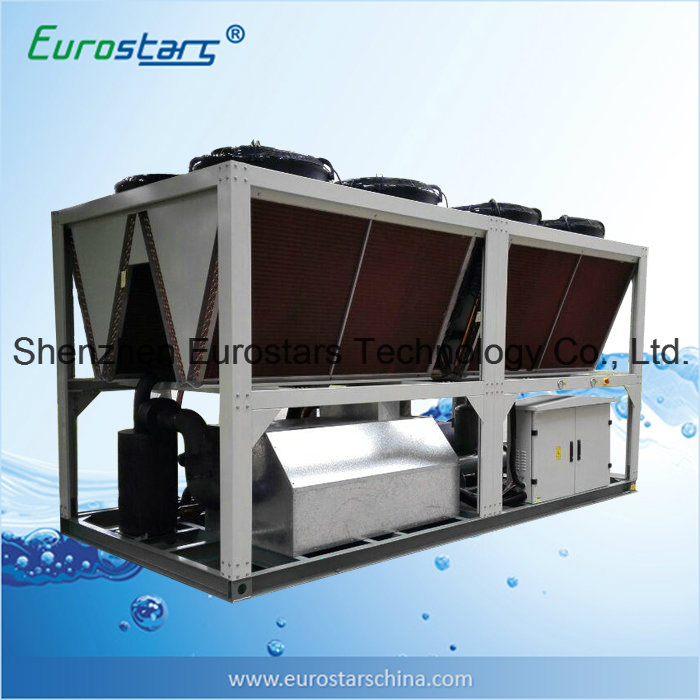

Bitzer Compressor Air to Water Heat Pump Water Heater

Prod Model:	ESGA-55SHTN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor 1:	Taiwan Hanbell
Compressor 2:	Germany Bitzer
Heat Pump Expansion Valve:	Emerson
Heat Pump Dry Filter:	Danfoss
Heat Pump Heat Exchanger:	Eurostars
Controller:	Scm/PLC
Heat Temperature:	50-70??C
Work Environment:	Low-temperature Heat Pump
Heat Source:	Air-source
Application:	Beauty Salons
Certification:	CE

Product Description

1.Brief introduction-Eurostars air cooled air source heat pump
a)Ambient temp range:-5~43C(-25C~43C)
b)Intellectualized control system and Low Noise
c)High Efficient and Energy Saving
d)Easy Operation and Installation
e)Compact Exterior
f)High quality
g)Competitive price

2.Unit Features-Eurostars air cooled air source heat pump
1).Heating capacity ranged from 130Kw to 790 Kw.
2). Adopt good quality famous brand Hanbell screw compressor,high efficiency, low noise, less wearing and long life
3).Both Evaporator and Condenser are high quality and high efficiency
4). World famous brand parts: such Emerson expansion valve, FUJI contactor other brand like PUNP, Schneider.
5). Can be widely used in different area,such as Massage center, Hospital, Hotel, School, etc
6). Strong unit base frame ensured the equipment stable operation
7). Adopt leading brand PLC or SCM controller
8). Multi-capacity regulation, energy saving, cost cut down greatly for operation and maintenance.


3.Technical parameter-air cooled air source heat pump
Please ask salesman for detailed complete data or visit our website.

Air Cooled Chiller Unit Heat Pump (Screw Type Compressor-one compressor)
Model     ESGA-			30SHTN	40SHTN	55SHTN	65SHTN	75SHTN	85SHTN	90SHTN
Rated Cooling Capacity	Cooling Capacity (KW)		111	161	215	254	294	321	346
	Cooling Capacity (USRT)		31.57	45.79	61.15	72.24	83.62	91.30	98.41
	Comp. Input Power (KW)		34.6	48.2	63.8	70.5	82.4	90.2	98.9
Rated Heating Capacity	Heating Capacity (KW)		122	174	232	269	311	341	369
	Heating Capacity (USRT)		34.70	49.49	65.98	76.51	88.45	96.99	104.95
	Comp. Input Power (KW)		34.1	47.4	62.8	69.2	80.8	88.4	97.2
Refrigerant			R407C
Power Supply			3φ-380V/50HZ
Safety Protection			Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp.  protection, Low & High pressure protection,  Low temp.  protection, Reserved water flow protection interface.
Number of Refrigeration Circuit			1
Capacity Control (%)			0, 66, 100		0, 50, 75, 100
Refrigerant Charge (Kg)			30	42	56	68	78	84	93
Air Cooled Heat Exchanger			Ripple Aluminum Fins Around Copper Pipe
Water Cooled  Heat Exchanger	Dia.of Pipe (inch)		2-1/2"	3"	3"	3"	4"	4"	4"
	Water Side Max Pressure  (MPa)		1
	Chilled  Water Flow(m3/h)		19.09	27.69	36.98	43.69	50.57	55.21	59.51
	Water Pressure Drop (kPa)		28	33	48	55	61	64	66
	Flow of Hot Water(m3/h)		20.98	29.93	39.90	46.27	53.49	58.65	63.47
Axial Fan	Air Flow×1000m3/h		56.8	80.4	85.2	120.6	120.6	160.8	160.8
	Power×Qty (KW)		1.2×4	2.0×4	1.2×8	1.2×8	1.2×8	2.0×8	2.0×8

Air Cooled Chiller Unit Heat Pump (Screw Type Compressor-two compressor)
Model     ESGA-			100DHTN	110DHTN	130DHTN	140DHTN	150DHTN	165DHTN	180DHTN
Rated Cooling Capacity	Cooling Capacity (KW)		392	439	509	537	588	642	693
	Cooling Capacity (USRT)		111.49	124.86	144.77	152.73	167.24	182.59	197.10
	Comp. Input Power (KW)		116.4	127.6	141.0	148.2	164.8	180.4	197.8
Rated Heating Capacity	Heating Capacity (KW)		424	464	538	568	624	682	740
	Heating Capacity (USRT)		120.59	131.97	153.01	161.55	177.47	193.97	210.47
	Comp. Input Power (KW)		114.4	125.6	138.3	145.4	161.7	176.9	194.4
Refrigerant			R407C
Power Supply			3φ-380V-50HZ
Safety Protection			Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp.  protection, Low & High pressure protection, Low temp.  protection, Reserved water flow protection interface.
Number of Refrigeration Circuit			2
Capacity Control (%)			0, 25, 37.5, 50, 62.5, 75, 87.5, 100
Refrigerant Charge (Kg)			114	122	146	150	164	178	196
Air Cooled Heat Exchanger			Ripple Aluminum Fins Around Copper Pipe
Water Cooled  Heat Exchanger	Dia.of Pipe (inch)		5"	5"	3"×2	3"×2	4"×2	4"×2	4"×2
	Water Side Max Pressure  (MPa)		1
	Chilled  Water Flow(m3/h)		67.42	75.51	87.55	92.36	101.14	110.42	119.20
	Water Pressure Drop (kPa)		42	54	44	52	54	55	65
	Flow of Hot Water(m3/h)		72.93	79.81	92.54	97.70	107.33	117.30	127.28
Axial Fan	Air Flow×1000m3/h		160.8	160.8	172.8	241.2	230.4	321.6	321.6
	Power×Qty (KW)		1.2×12	1.2×12	2.0×12	2.0×12	1.2×16	2.0×16	2.0×16

1. Rated Cooling Capacity Based on: DB Temperature 35ºC/WB Temperature 24ºC;Chilled water in/outlet temp. 12ºC/7ºC,  Fouling factor: 0.088.°C/KW.
 2. Rated Cooling Capacity Based on: DB Temperature 7ºC/WB Temperature 6ºC;Hot water in/outlet temp. 40ºC/45ºC;  Hot water range: 45ºC~50ºC;

4.Quotation Remarks-air cooled air source heat pump
1.Packing: Standard export package
2.Delivery Day: 35 working days after deposit is confirmed
3.Delivery term: CIF,FOB or CNF EX-Work are welcomed
4.Payment term: 30% deposit by TT, the balance will be paid by TT before delivery;
  Or 100% Irrevocable non-transferred LC at sight
5.Warranty: 12~18 months after Bill of Lading date. Any unartificial failure occurred within the period, we'll supply you the spare parts for free, and permanent technical support & consultation all life long for the machines.
6.Validity: 20 days
7.Payment currency:USD
