Big Capacity 5 Ton Solar Powered Ceiling Cassette Air Conditioner

Name: Big Capacity 5 Ton Solar Powered Ceiling Cassette Air Conditioner
Brand: ec-portal.com
SKU: 790286215
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 1550-1746/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	cassette air conditioner 60000btu
Power:	Solar
Compressor:	Gmcc/Hitachi
Inverter To 110/220V:	No Need
100% Off Grid:	No
Warranty:	1 Years for Whole System
Solar Panels:	No Need
Batteries:	No Need
Solar Controller:	No Need
Manufacturer:	Yes
Color:	White
Type:	Window Mounted Air Conditioners
Capacity:	48000-60000 BTU
Usage:	Room
Indoor Machine Noise:	36-49dB
Certification:	CCC
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Solar
Power Type:	AC
Condition:	New

Product Description

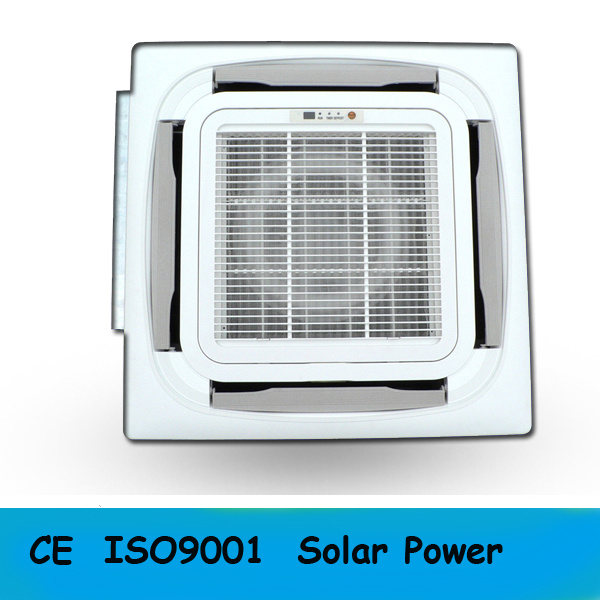

Big Capacity 5 Ton Solar Powered Ceiling Cassette Air Conditioner

Hybrid Solar Air Conditioner
(9000BTU-24000BTU) for Wall Mounted range
Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series.
Features:
1.on Grid Working with 50% solar energy
2.Vacuum thermal tube solar collector ,with easy installation and affordable cost
3.Supreme high efficiency rating reach to 4.0
4.International famous brand compressor
5.R410A environment friendly gas

Specifications:

Cassette Type Hybrid Solar AC
Model No.			SGC-72QW	SGC-100QW	SGC-120QW	SGC-140QW
Power Supply:220-240VAC, 1PH, 60Hz
Performance
Capacity	Cooling	Btu/h	24000	36000	41000	48000
	Cooling	W	7200	10000	12000	14000
	Heating	Btu/h	27000+1700	40000+1700	46000+1700	55000+1700
	Heating	W	7900+500	12000+500	14000+500	16000+500
Noise	Indoor	dB(A)	≤49	≤49	≤50	≤50
Noise	Outdoor	dB(A)	≤58	≤58	≤60	≤60
Air Circulation		m³/h	1250	1700	1800	1900
Suitable Area		m²	30~48	42~67	50~80	58~93
EER		W/W	3.82	3.87	3.96	3.87
EER		Btu/h/w	13.03	13.2	13.51	13.2
Power Consumption
Power Input	Cooling	W	1700~1900	2400~2640	2900~3150	3500~3740
Power Input	Heating	W	1700~1950+500	2470~2650+500	2900~3180+500	3500~3760+500
Rated Current	Cooling	A	7.73~8.64	10.91~11.95	13.18~14.32	15.91~17
Rated Current	Heating	A	7.73~8.66+2.2	11.23~12.05+2.2	13.18~14.45+2.2	15.91~17.09+22
Vacuum Tube	DiameterLengthPcs		47mm620mm11	47mm700mm13	47mm1200mm13	47mm1200mm13
Dimensions
Indoor Unit	Net	mm	850850250	850850250	850850280	850850280
Indoor Unit	Shipping	mm	890880290	890880290	890880320	890880320
Panel	Net	mm	96096060	96096060	96096060	96096060
Panel	Shipping	mm	10101010110	10101010110	10101010110	10101010110
Outdoor Unit	Net	mm	940300755	950355835	9503551255	9503601255
Outdoor Unit	Shipping	mm	990400770	1140460910	11404601340	11404601340
Water Tank	Shipping	mm	980400370	1120400400	1120400400	1120400400
Vacuum Tube	Shipping	mm	980400370	1120400400	1270280210	1270280210
Weight
Indoor Unit	Net/Gross	kg	28/34	30/45	53/57	53/57
Outdoor Unit	Net/Gross	kg	55/58	73/76	95/100	97/102
Solar Collector	Net/Gross	kg	16/17	18/21	23/26	23/26
Loading Qty	in 20feet	sets	36	31	22	22
Loading Qty	40HQ	sets	88	75	53	53

Meet CE &CCC Standard

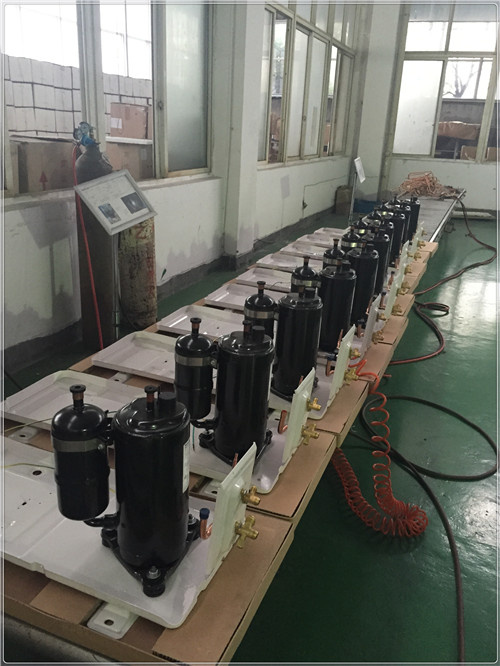

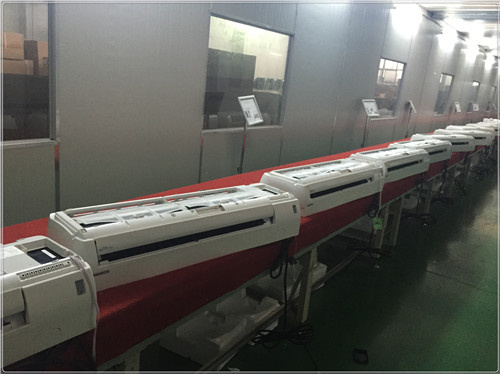

indoor Production line

outdoor production line

Supergreen Renewable Energy Technology Co., Ltd, is the leading company of the renewable energy technology application in China. It is a professional manufacturer of solar pest control lamp, Solar air conditioner, solar refrigerator and so on. With strong R&D team, We are committed to energy conservation and environmental protection for new energy career and to provide the latest technology and best solution for users.

The company has a set of advanced equipment for R&D, production, quality Control, gathers a group of professional technicians to engaged in product research and development. It can provide various kinds of special specification products and technology service for customers. Products and technology have been exported to many countries and area, such as Western Europe, North America, Eastern Asia Middle East, etc.

"Quality, Sincerity, Practical, Innovation" is our objective for enterprise management. Sincerely welcome friends domestic and abroad to visit us to cooperate and develop together.
