Product Description

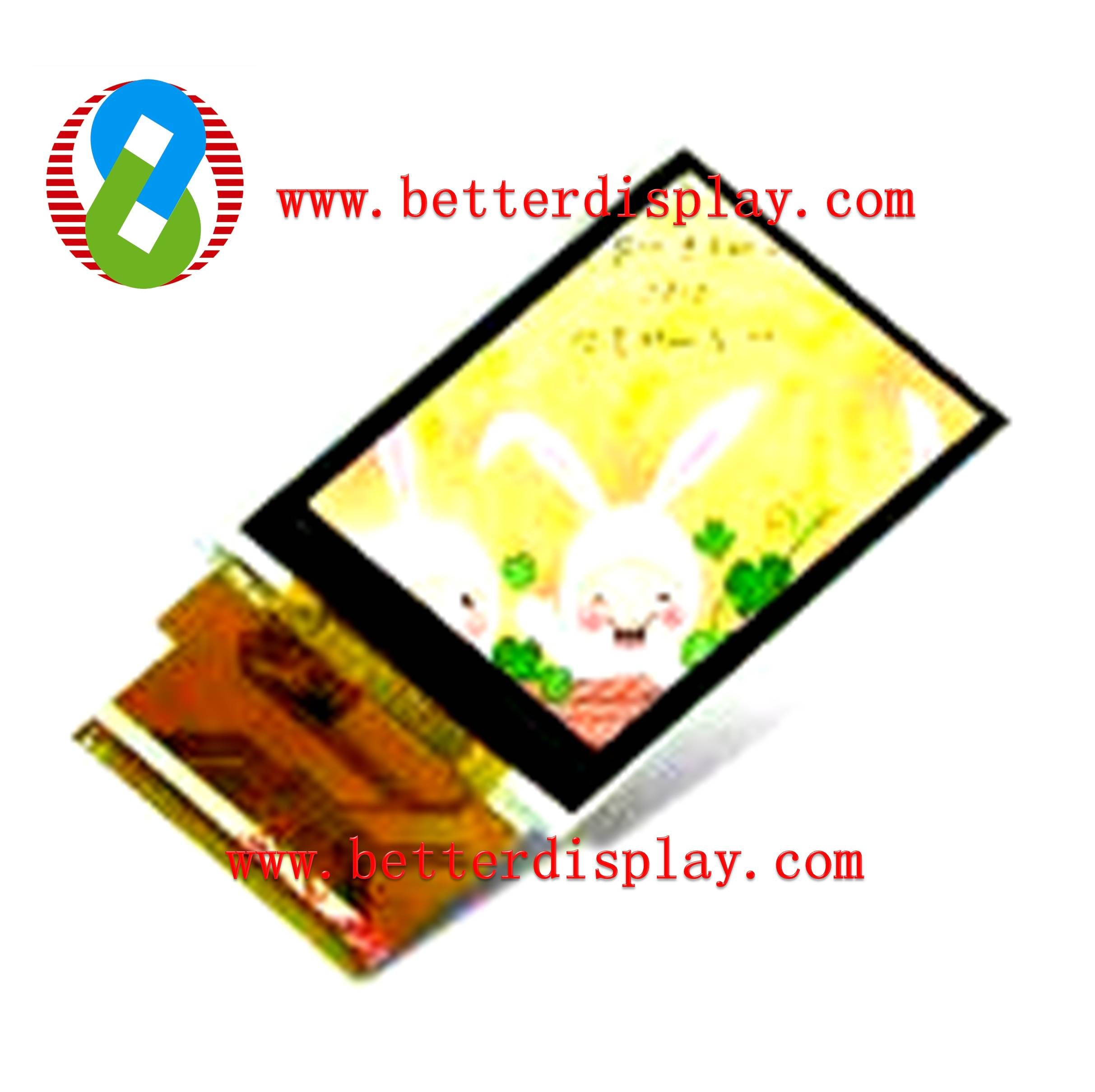

Better touch 3.4 inch TFT lcd display
Specifications
Applied: For instrument, Equipment Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc Music keyboard.
Product name: LCD polarizer Graphic LCD module
Brand Name: Better
Cerificate: Rohs
Manufacturing Experience: 20 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Glass thickness: 1.1mm, 0.7mm, 0.55mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC Heat seal
Cob Cog Cof
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY
Backlight (Custmer Design ): Yellow Green Blue Amble red, green blue, violet, yellow
Controller: SPLC780/KS0066U or eqv.
Backlight: EL, LED, CCFL
TN STN FSTN
Main parameters concerned:
(1, Outline size, viewing area, connection style
(2, What to display? !
(3, How to drive?
Standard character modules
Whole product series for 8*2 / 16*1/ 16*2/16*4/20*2/ 20*4/ 40*2/ 40*4 characters each in ther format or 5*8 dot matrix
Standard graphic modules
Including 96*26 dots 122*32dots 128*32 dots, 128*64 dots 192*64 dots, 160*160 dots, 240*128 dots, 240*160 dots, 320*240 dots series, suitable for graphic display.
Segment lcd modules
(1, Module structures: Such as outline size, positioning holes viewing area, etc
(2, Wwhat kind of backlight to use
(3, what to display, elements to be displayed
(4, Driver to be used, and in which protocol for data transfer.
Dot matrix lcd modules
(1, Module structures: Such as outline size, positioning holes viewing area, etc
(2, what kind of backlight to use
(3, what to display, elements to be displayed
(4, Driver to be used, and in which protocol for data transfer.
Va LCD panel feature:
(1, High-contrast, when power on you 'll see the clear segment and black ground contrast, but power off all black
(2, Wide viewing angle >270 degree.
(3. Wide temperture: High temp reached -20-70for Operatiion temp /-30-80 storge temp.
(4: Wide used vehicle DVD, audio products and meters, home appliance such as microwareoven, medical instrument.
(5. Color showing for silk printing added.
(6. Can be designed by customers
Debugging a brief description LCD TFT
Model size: 1.44 / 1.77/ 2.0 / 2.2 / 2.3 / 2.39 / 2.4 / 2.6 / 2.8 / 3.0 / 3.2 / 3.5 / 4.3 / 5.0 / 7.0 / 8.0 /9.0 /10 / 12 inch
***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage
1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
Packaging & Delivery:
Packaging Detail: Sdandard package for alphanumeric lcd: Anstatic tray or EPE cotton inside, carton outside
Delivery Detail: Alphanumeric lcd lead time is 3.5weeks. Urgent order is 20days
Items per Carton: 1 Pieces/Carton
Package Measurements: 16X12X13 cm
Gross Weight: 0.5 kg
Package Type: Natural packaging
Strength:
1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ
Welcome to our website for more information: (www.betterdisplay.com)
|
Pin NO. |
Symbol |
Function |
Remark |
|
1 |
Vss |
Power Supply |
0V |
|
|
2 |
Vdd |
+5V |
|
|
3 |
Vo |
For LCD |
Variable |
|
4 |
RS |
Register Select (H: Data L: Instruction) |
|
|
5 |
R/W |
L:MPU to LCM H:LCM to MPU |
|
|
6 |
E |
Enable |
|
|
7-14 |
DB0-DB7 |
Data Bit 0-7 |
|
|
15 |
CS1 |
Chip Select 1 |
|
|
16 |
CS2 |
Chip Select 2 |
|
|
17 |
/RST |
RESET |
|
|
18 |
Vee |
Negative Power Supply |
|
|
19 |
NC/A |
Anode of LED Unit |
|
|
20 |
NC/K |
Cathode of LED Unit |
|
|
Materials |
|
Materials |
Supply |
|
IT O glass |
CSG, Lai Bao, Samsung |
|
Liquid cystal |
The strength of Ke, Mo Ke |
|
IC |
Xichuang, wonders |
|
Backlight |
Baoming photoelectric |
TFT glass
T F T |
CMO
LG\CPT\HSD |
|
Capacity |
|
TYPE |
Capacity |
2012 |
2013 |
|
LCD |
1000K/M |
2500K/M |
3000K/M |
|
COB |
400K/M |
400K/M |
500K/M |
|
COG(TFT&STN) |
2000K/M |
2000K/M |
4000K/M |
|
Touch Panel |
500K/M |
800K/M |
1000K/M |
