Product Description
COB HTN lcd display for Micro-Wave Oven Treadmill Lift

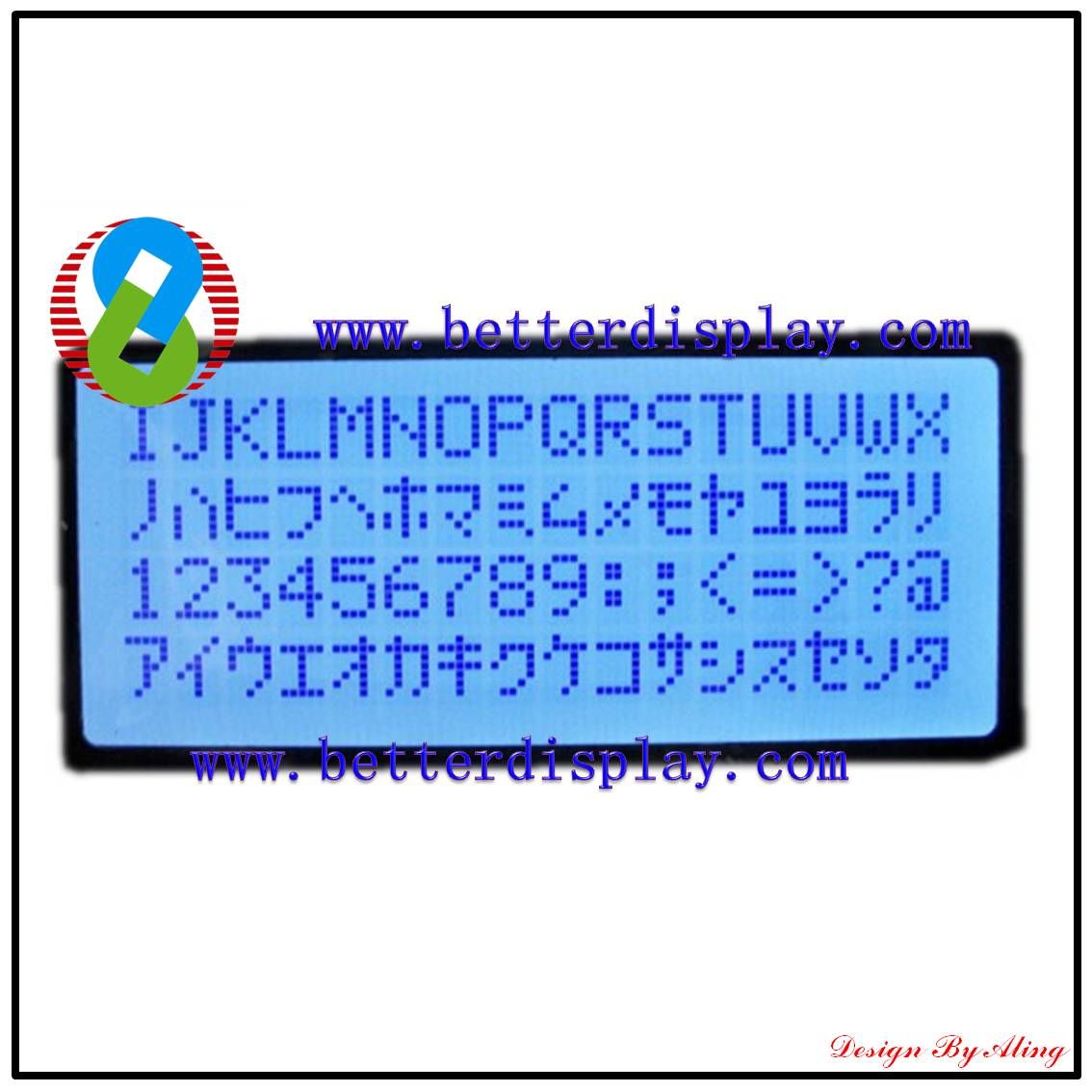

HTN -blue background LCD displaySpec:
NOTES:
1. Display type: HTN /positive
2. Operation Voltage: 5.0v
3. Drive Mode: 1/4duty, 1/3bias
4. Viewing Direction: 12H
5. Polarizer Type: Transmissive Oranger special
6. Operating Temperature: -10-60 degree
7. Storage Temperature: -20-70 degree
8. Connector: PIN
We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,
We had at least 50 people for research and development, Quality control, 300 workers on the production lines.
Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.
Quality control By: IQC -IPQC-OQC
Quotation FOR
LCD: 1-2days
LCM: 1-2days
Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days
Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days
Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;
Best Services
Our commitment is 24 hours to solve customer complain and give the solution
|
Pin NO. |
Symbol |
Function |
Remark |
|
1 |
Vss |
Power Supply |
0V |
|
|
2 |
Vdd |
+5V |
|
|
3 |
Vo |
For LCD |
Variable |
|
4 |
RS |
Register Select (H: Data L: Instruction) |
|
|
5 |
R/W |
L:MPU to LCM H:LCM to MPU |
|
|
6 |
E |
Enable |
|
|
7-14 |
DB0-DB7 |
Data Bit 0-7 |
|
|
15 |
CS1 |
Chip Select 1 |
|
|
16 |
CS2 |
Chip Select 2 |
|
|
17 |
/RST |
RESET |
|
|
18 |
Vee |
Negative Power Supply |
|
|
19 |
NC/A |
Anode of LED Unit |
|
|
20 |
NC/K |
Cathode of LED Unit |
|
