| Prod Model: |
A10-39 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Htn Negative |
| Driving Method: |
1/4duty,1/3bias |
| Driving Voltage: |
4.8V |
| Polarizer: |
Transmissive |
| Operatiing Temp: |
-10-60 |
| Storge Voltage: |
-20-70 |
| Connector: |
Pin |
| Customerized: |
Yes ,Acceptable |
| Cetification: |
SGS |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Capacitive |
| Type: |
Character |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description

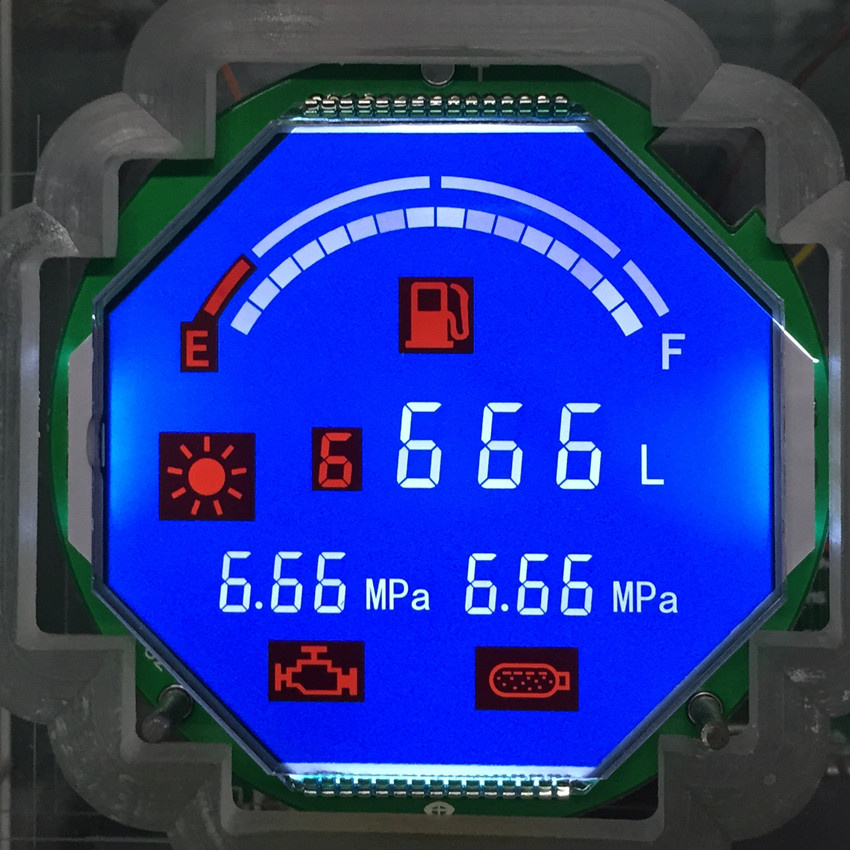

COB HTN lcd display for Micro-Wave Oven Treadmill Lift
HTN -blue background LCD displaySpec:
NOTES:
1. Display type: HTN /positive
2. Operation Voltage: 5.0v
3. Drive Mode: 1/4duty, 1/3bias
4. Viewing Direction: 12H
5. Polarizer Type: Transmissive Oranger special
6. Operating Temperature: -10-60 degree
7. Storage Temperature: -20-70 degree
8. Connector: PIN
We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,
We had at least 50 people for research and development, Quality control, 300 workers on the production lines.
Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.
Quality control By: IQC -IPQC-OQC
Quotation FOR
LCD: 1-2days
LCM: 1-2days
Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days
Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days
Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;
Best Services
Our commitment is 24 hours to solve customer complain and give the solution
| Pin NO. | Symbol | Function | Remark |
| 1 | Vss |
Power Supply | 0V |
|
| 2 | Vdd | +5V |
|
| 3 | Vo | For LCD | Variable |
| 4 | RS | Register Select (H: Data L: Instruction) |
|
| 5 | R/W | L:MPU to LCM H:LCM to MPU |
|
| 6 | E | Enable |
|
| 7-14 | DB0-DB7 | Data Bit 0-7 |
|
| 15 | CS1 | Chip Select 1 |
|
| 16 | CS2 | Chip Select 2 |
|
| 17 | /RST | RESET |
|
| 18 | Vee | Negative Power Supply |
|
| 19 | NC/A | Anode of LED Unit |
|
| 20 | NC/K | Cathode of LED Unit |
|
BETTER DISPLAY GROUP LIMITED is a High-tech enterprise which established in 2010 and specializing in the production and sales of LCD and LCM.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
