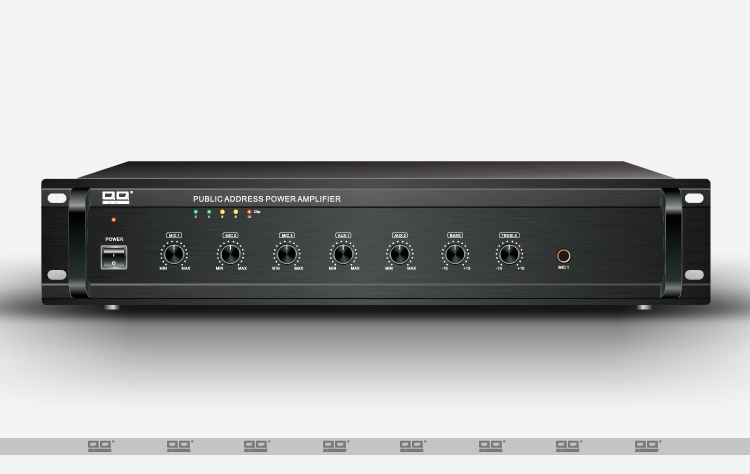

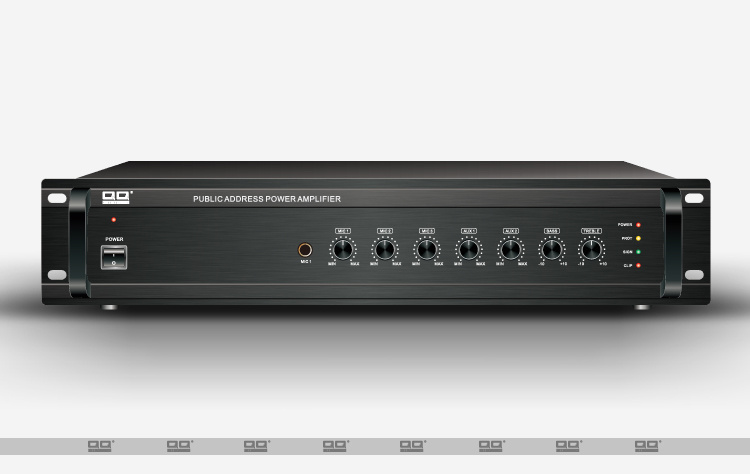

Background Music Amplifier for Smart Home Systems

Prod Model:	LBA-280
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Guangzhou, Cn
Brand Name:	Qqchinapa
Use:	Hotel, School, Airport, Departmen, Church
Certificate:	CE, FCC, RoHS, CB
Protetion:	High Temp, Overload&Short-C
Factory History:	More Than 10 Years
Warranty:	3 Years
Factory Ability:	OEM ODM
Delivery Time:	2-20 Days
Factory Place:	Guangzhou
Used For:	Professional
Tube Type:	Transistor Amplifier
Sound Channel:	2.1
Output Number:	8
Voltage:	AC 110V
Element Number:	Push-Pull Amplifier
Conductive Mode:	D
Function:	PA Amplifier
Type:	PA Amplifier
Usage:	Public Address System

Product Description

Product Advantages:
1. Stable quality,Good price
2.Short product period
3. On time delivery
4. OEM Ability
5. Excellent R&D team
Since2005, over 10 years OEM /ODM experience in Pulic Address System and Professional Audio System ,strict quality control and good price

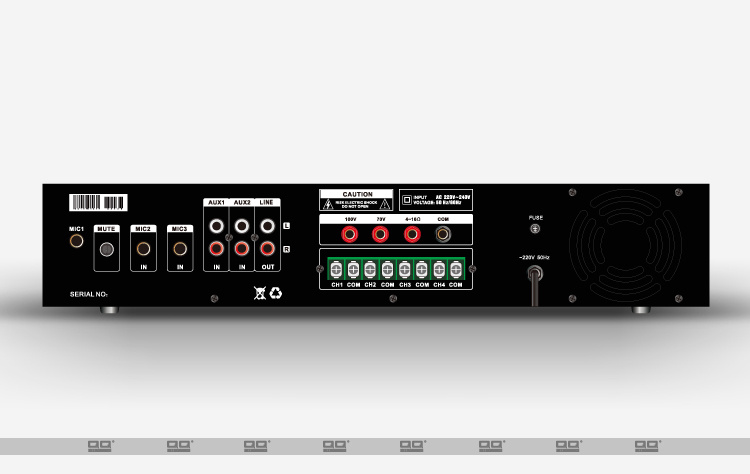

1: Three microphone inputs. Two auxiliary inputs and one auxiliary outputs for link.
2: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
3: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
4: Muting function.
5: Individual volume control, low and high tone control
6: Short circuit protection & alarm
7:Panel colour :Black or White

Model	LBA-60	LBA-100	LBA-150	LBA-200	LBA-280
Rated power	60W	100W	150W	200W	280W
Line voltage	70-100V	70-100V	70-100V	70-100V	70-100V
Impedance	4-16Ω	4-16Ω	4-16Ω	4-16Ω	4-16Ω
Dimension(mm)	485*360*90	485*360*90	485*360*90	485*395*90	485*395*90
GW(kg)	8.4	9.6	10.4	10.7	13.1

Model	LBA-280	LBA-380	LBA-480	LBA-680	LBA-880	LBA-1000
Line voltage	70-100V	70-100V	70-100V	70-100V	70-100V	70-100V
Sensitivity	230mv\15mv	230mv\15mv	230mv\15mv	230mv\15mv	230mv\15mv	230mv\15mv
Sensitivity	> 80db	> 80db	> 80db	> 80db	> 80db	> 80db
Harmonic distortion	< 0.3 %	< 0.3 %	< 0.3 %	< 0.3 %	< 0.3 %	< 0.3 %
FREQ. RESP	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz
Rated power	280W	380W	480W	680W	880W	1000W
Fuse	F5AL	F5AL	F8AL	F8AL	F10AL	F10AL
Dimension(mm)	435*390*90	435*390*90	435*390*90	435*390*90	435*390*90	435*390*90
Weight(KG)	13	14.5	16	18.5	20	21.5

 Our Service:
1.Products design:  we will help our customers to design the full products line .
2.Quality Stability : we assure the quality stability ,once there is quality problem happen, we will withdraw the cargoes unconditionally .
3.pre-production
sample confirmation-after get customers 30% deposit . within 7 days we will provide pre-production sample to customers for confirmation before mass production.
4.Quick and intimate service: quickly provide all the files which necessary for handling enrtrance formalities;assist our customers to make certificate
5.On time delivery : for the first order ,we can ship within 25 days ,and for the repeated orders ,15 days in need .
6.Protect our customers privacy of ingredient and market information :
 making usre that for the same our brand of products,in each country ,we only sell to one customer.

Our Advantage:

1.OEM Ability  ---Over10 years speakers and amplifiers product manufacturer experience .
2.Famous factory ---- We have been the supplier of  2008 Beijing Olympics   China .
3.Quality--- We have strict quality control system with  5 steps of inspection to assure the stability of quality. Certificated with CE,CCC,ROHS,FCC,CB and so on .
4.Competitive    ----  we focus on help our customers to build their brand name to be the famous brand  in their country .
5.Excellent R&D team---Lead by 2 engineers who has more than 15 years R&D experiences and 3 engineers who has 6 years R&D experiences.
6.Professional and mature sales team : the operation experience is rich , good english level , familiar with each foreign trade process which ensures no error in order process .
 7. Products positioning : with several years experience in brands operation and been to many countries for market researching , we can help our customer do exactly prouducts positioning toghether .

Our Products:
Speaker :Ceiling speaker,wall speaker,horn speaker,column speaker,garden speaker,project speaker, professnial speaker and so on .
Amplifer:Mixer amplifier, power amplifier,pure amplifier,professianl amplifier and so on .

our market :
get a high reputation all around the world.

Why choose us:
1.We focus on speakers and amplifiers product over 10years
2.Your reliable speakers and amplifiers OEM /ODM partner .You can be confident ,because we are trusted in quality .
3.We have gained many international certificates ,.Such as CE,CCC,ROHS,FCC,CB and so on .
4.Our Factory covers an area of12,000 square meters and has more than 200 employees.
