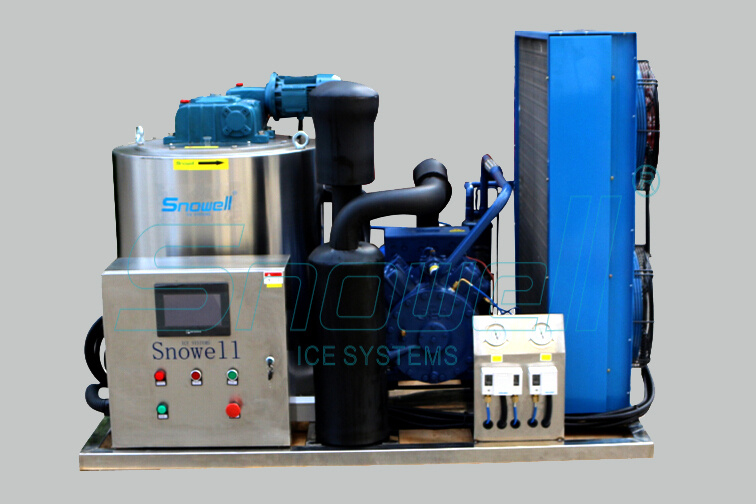

Automatic Operation 2t Flake Ice Maker (PLC Control)
| Price: |
US $ 8350/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SB2T-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Automatic Operation 2t Flake Ice Maker(PLC Control |
| Refrigeration Capacity: |
12 Kw |
| Flake Ice Maker Refrigerant: |
R404A |
| Ice Maker Total Input: |
7.5kw |
| Power Supply: |
380V/50Hz/3p or Else |
| Nominal Current: |
14A |
| Thickness Of Flake Ice: |
1.5-2.2mm |
| Cooling Mode: |
Air Cooling |
| Evaporator Structure: |
Spiral Groove |
| Warranty: |
2years |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Product Detailes Description:Model: SF2T-R4A
Flake Ice Maker Daily Capacity: 2000kg
Ice Maker Compressor: Copeland from USA
Cooling way: Air Cooled
Production Capacity Available: 1-60T Per DaySNOWELL flake ice maker has adopted the newest international ice machine making technology. We use and only use world famous components like Bitzer,Bock, Danfoss,Schneider and so on.
Compare to other supplier of flake ice maker machinery in the industry, SNOWELL ICE SYSTEMS Owns its unique technology and get much more better performance.
1. Superb Stability and reliability, long use life.
2. User-friendly design, intellectualized PLC touch-screen controller
* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.
* The intellectualized historical failure record
* Function and guidance of trouble shooting makes easier and simple operation and maintenance.
* Running time setting function convenience operator,
* Saving energy and reduce cost.
3. Sub-cooled ice, excellent fast cooling
Super cold, dry, crisp, 100% sub cooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost for the flake ice maker
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. Energy-efficient and cost saving
Additional Detailed Specifications for the 2T flake ice maker:
| NO. | Description | Specs. |
| 1 | Product Name | 2T industrial flake ice maker with bock compressor |
| 2 | Refrigeration capacity | 12kW |
| 4 | Total input | 7.5kW |
| 12 | Cooling mode | Air cooling |
| 13 | Evaporator structure | Spiral groove |
| 14 | Evaporating temp. | -20°C |
| 15 | Condensing temp. | 45°C |
| 16 | Flake ice temp. | -5°C |
| 17 | Thickness of flake ice | 1.5-2.2mm |
| 18 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 20 | Design ambient temp. | 25°C |
| 21 | Design water inlet temp. | 18°C |
Applications fields of this flake ice maker:
1. Large concrete pouring project
2. Man-Made snow making project
3. Chemical Industry
4. Fishery. aquatic products processing and vegetables & fruits preservation
5. Food Fermentation
6. Meat, dairy products processing and the other food industries.
Flake Ice Features:
1. Directly formed at low temperatures, ice flakes are as cold as minus 8°C.
2. Ice Flakes are dry, powerless, and not like to lump.
3. Big contact area and good mobility ensure the full contact with refrigerated objects, like fish, concrete and so on.
4. No acute edges or Conner. No damage to fish skin or else.
After-sales Service
1. Two years warranty
2. Offer Spare parts free of charge within the warranty period.
3. Technical Documents
All Snowell flake ice makers come out with 24 months full warranty. If the machine breaks down in 24 months, Snowell will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Snowell will supply the parts and service only for factory price.
Company Profile
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2. What is the payment terms and trade terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
