| Prod Model: |
601010037 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ms908 |
| Other Name: |
Maxisys Ms908 |
| Type: |
Auto Diagnostic Scanner |
| Brand: |
Autel |
| Software Update: |
Online Update |
| Connection: |
with WiFi |
| Display: |
9.7 Inch LED Capacitive Touch Screen |
| Operating System: |
Androidtm 4.0, Ice Cream Sandwich |
| Warranty: |
12 Months |
| Weight: |
10kg |
| Update Method: |
by Internet |
| Certification: |
CE |
Product Description

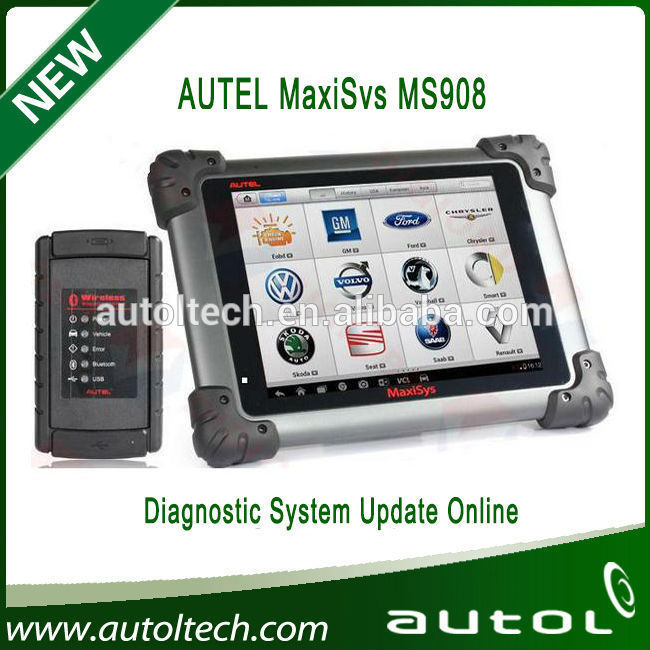

AUTEL MaxiSys MS908 MaxiSys Diagnostic System Update Online
AUTEL MaxiSys MS908 has evolved far beyond the original capabilities of DS708.
It can be updated Online. the MaxiSys is the perfect diagnostic solution for shops and technicians
who demand unrivalled smart technology and smart repairs.
MaxiSys MS908 Features and Functions:
1. Extraordinarily powerful Cortex-A9 quad-core processor
2. 9.7" 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
3. Internal reliable and fast 32GB Solid State Drive for better performance
4. Built-in 5-megapixel rear camera with autofocus and flashlight
5. Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
6. Unique shop tough ergonomic design features strong rubber protection and housing;
7. Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
8. USB, audio and auxiliary ports make it easy to connect accessories
9. The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
10. Open source Android Operating System for fast boot-up and multitasking
11. Easy and intuitive navigation makes finding what you need simple and fast
12. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
13. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
14. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
15. Configures display options, sets triggers, records and playbacks results with one touch
16. Records and playbacks live data to pinpoint troubles of sensors and components
17. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
18. Remote technical support for convenient demonstration, training and increased customer satisfaction
19. Print out recorded data anytime and anywhere with Wi-Fi technology
20. Automatic Wi-Fi updates available in new software releases
MaxiSys MS908 Specifications:
| Operating System | AndroidTM 4.0, Ice Cream Sandwich |
| Processor | Samsung Exynos Quad-Core Processor 1.4GHz |
| Memory | 2GB RAM & 32GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 1024x768P resolution |
| Connectivity Ethernet | RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA |
| Camera (rear) | Rear-facing, 5.0 Mexgapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temperature | -10 to 55 ºC (14 to 131 ºF) |
| Storage Temperature | -20 to 70 ºC (-4 to 158 ºF) |
| Housing | Strong plastic housing with protective rubber boot |
MaxiSys MS908 Package List:
Quick reference guide
Main cable
GM/Daewoo-12 adaptor
PSA-2 adaptor
Fiat-3 adaptor
Audi-2+2 adaptor
BMW-20 adaptor
Benz-38 adaptor
Kia-20 adaptor
Mitsubishi/Hyundai-12+16 adaptor
Nissan-14 adaptor
Honda-3 adaptor
Carry case
USB Cable
User"s Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Chrysler-16
Benz-14
Mini USB Cable
