| Prod Model: |
AUTEL MaxiSYS Pro MS908P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Car Model List: |
Most Cars |
| With WiFi: |
with WiFi |
| Autel Maxisys PRO Ms908p: |
Autel Maxisys PRO Ms908p |
| Ms908p: |
Ms908p |
| Autel Maxisys PRO: |
Support Program |
| Program: |
Benz and BMW |
| Maxisys PRO: |
Maxisys PRO |
| Diagnostic Tool: |
Diagnostic Tool |
| ECU Programming: |
ECU Programming |
| Testing Equipment Type: |
Car Computer Detector |
| Diagnostic Tool Type: |
Automotive Fault Diagnostic |
Product Description

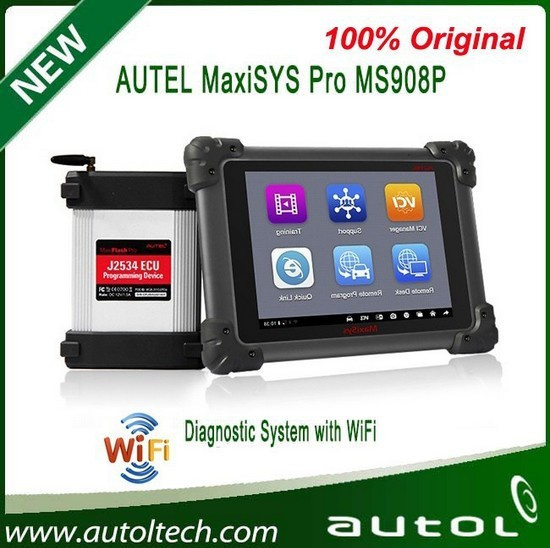

AUTEL MaxiSYS Pro MS908P Diagnostic System with WiFi
The MaxiSYS Pro has been designed to be the go-to tool for the professional technician who performs J-2534 reprogramming on a regular basis.
Autel Maxisye Pro can do online programming, at the same time it"s compatiable for diagnosis and online programming for part of the original software.
MaxiSYS Pro
The MaxiSYS Pro includes the J-2534 reprogramming box and special MaxiSYS Pro software needed for shops and technicians who demand a comprehensive diagnostic system capable of completing even the most complicated and demanding tasks. The MaxiSYS Pro comes with all of necessary adaptors for 1996 & newer vehicles, software for Domestic, Asian, & European vehicles (J-2534 manufacturer updates sold separately) and cables needed to get the job done, as well as one year of FREE updates.
Product Features & Functions
Extensive vehicle coverage for more than 40 US, Asian and European vehicle makes
Complete function capability for codes, live data, actuation tests, adaptations, coding, and even ECU programming
Extraordinarily powerful Cortex-A9 quad-core processor
9.7 inch 1,024x768 LED-backlit glossy widescreen Multi Touch display with IPS technology
Built-in 5-megapixel rear camera with autofocus; Virtual on-screen keyboard· Wi Fi wireless to access your favorite web resources & automatically update new software
Unique shop tough ergonomic design features strong rubber protection and housing
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio, and auxiliary ports make it easy to connect accessories
Internal Reliable and fast 32GB Solid State Drive for better performance
The VCI connects wirelessly to the main unit with ultra-range Bluetooth
Software Advantage:
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Displays live data in text, graph and analog for easy data review and analysis
Configure live data display options, set alarms, record, and playback data frames with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
Prints out recorded data anytime and anywhere with Wi-Fi technology
Maxisys Pro Specification:
Operating System:AndroidTM 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 9.7 inch LED capacitive touch screen with 1024x768P resolution
Connectivity: Ethernet: RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA
Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery: 11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temperature: -10 to 55 ºC (14 to 131 ºF)
Storage Temperature: -20 to 70 ºC (-4 to 158 ºF)
Housing: Strong plastic housing with protective rubber boot
Packing List:
Maxisys Pro
Quick reference guide
Main cable
GM/Daewoo-12 adaptor
PSA-2 adaptor
Fiat-3 adaptor
Audi-2+2 adaptor
BMW-20 adaptor
Benz-38 adaptor
Kia-20 adaptor
Mitsubishi/Hyundai-12+16 adaptor
Nissan-14 adaptor
Honda-3 adaptor
Carry case
USB Cable
User"s Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Packing List
Chrysler-16
Benz-14
Mini USB Cable
Lighter Fuse
