| Prod Model: |
WZ3 24: 4: 2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| THD: |
<0.005% |
Product Description

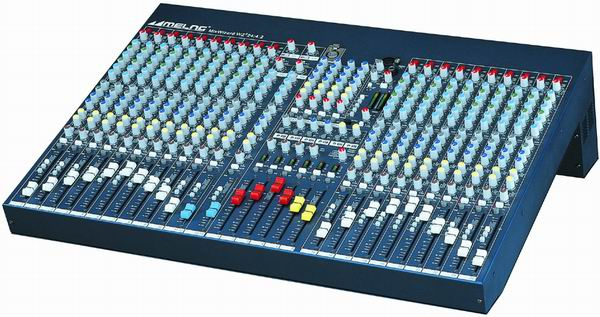

Audio mixer, WZ3 24: 4: 2
With 20 Mic inputs, 4 bands EQ, HM and LM swept;
2 Stereo inputs, 4 bands EQ;
6 Aux sends, 4 groups, 2 Stereo, 2 mixed matrix outputs;
Built-in pink noise generator and 1KHz sine wave signal generator;
Additional with jacks for lamp and DJ Mic.
TECHNICAL SPECIFICATIONS
Operating Levels
Channels: 0dBu Headroom +21dB
Mix: -2dBu Headroom +23dB
Main Outputs: +4dBu Headroom +22dB
Maximum output: +26dBu
Mic Pre-Amp Sensitivity: -60 to +10dBu
Stereo input sensitivity: -16 to +20dBu
Frequency Response (20Hz-30KHz)
Mic to Main output (+40 dB): +0/-0.5dB
Line to Main output (0dB): +0/-0.5dB
Distortion at 1KHz +14dBu out
THD + Noise (mic in +40dB gain): <0.004%
THD + Noise (mic in 0dB gain): <0.004%
Common Mode Rejection @1KHz
Mic Input +40dB gain: >80dB
Mic Input with Pad 0dB gain: >50dB
Crosstalk @1KHz
Adjacent Channel: <-90dB
Mute Shutoff: <-100dB
Fader Shutoff: <-90dB
Noise Performance (22Hz-22KHz unweighted)
Mic EIN with 150ohm source: -128dB
Residual output noise - main outputs <-95dBu
Main Mix noise: <-83dBu (87dB S/N)
Connection Impedances
Mic Inputs: 2k ohms
Line Inputs: >10k ohms
Ouputs: <75 ohms
Equalisation
Gain (each band): +/- 15dB
Mono Channel Low Frequency: 60Hz Shelf
Mono Channel Low MID Frequency: 35Hz -1KHz Q=1.8
Mono Channel High MID Frequency: 500Hz -15KHz Q=1.8
Mono Channel High Frequency: 12KHz Shelf
Filter (mono input): 100Hz switchable
Metering
Reading referred to Main outputs0VU = + 4dbu
Peak indication threshold: 5dB before clipping
System
Lamp connectors: 1*4 pin XLR-F
Power supply: Internal / MPS12 option
Power Consumption: 90W Max.
