| Prod Model: |
EPM6/EPM8/EPM12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| THD: |
<0.005% |
Product Description

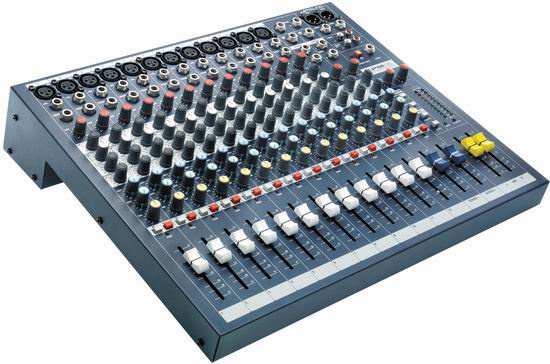

Audio Mixer,
The EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.
* Frame sizes 6+2, 8+2 and 12+2
* 2 configurable auxiliary buses
* XLR-type and metal jack connector sockets
* RCA phono stereo playback inputs and record outputs
* 3-band EQ with a swept MID on mono inputs
* 2-band EQ on stereo inputs
* TRS insert sockets and inserts on all mono inputs and mix output
* Ten-segment LED output metering
* Intuitive and comprehensive solo system
* Headphone output
* Easily rack mountable
EPM6 / EPM8 / EPM12 TYPICAL SPECIFICATIONS
Noise (22Hz-22KHz measurement bandwidth)
Mic EIN @ max gain, 150 ohms source impedance -128dBu
Mix @max, faders down <-85dBu
Crosstalk (typ. @ 1KHz)
Channel mute >96dB
Fader cut-off (rel +10 mark) >96dB
Aux send pot offness >86dB
Frequency response
Mic/Line input to any output +/- 0.5dB 20Hz-20KHz
THD+Noise
Mic gain 30dB, -30dBu input
Mix out, fader max @ 1KHz <0.007 %
Input & output Impedances
Mic input 2.4kΩ
Line input 11kΩ
Stereo input 100kΩ
Outputs 75Ω
Input & output levels
Mic input max level +17dBu
Line input max level +30dBu
Stereo input max level +30dBu
Mix output max level +20dBu
Headphones (@ 200Ω) 300mW
