| Prod Model: |
Gc039B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
10.1 Inch All in One Android POS Terminal with The |
| Brand Name: |
Haodexin |
| 3G: |
Support GSM,Edge,Wcdm |
| WiFi: |
IEEE802.11b/G/N Compatible Wapi |
| SIM: |
Support The Main Operationer |
| USB: |
2.0 |
| Serial Port: |
1 |
| TF: |
1 |
| OTG: |
1 |
| Color: |
Black |
| Type: |
Barcoder |
| Touch Screen: |
Touch Screen |
| Printer: |
Thermal |
| Certification: |
CE |
| CPU: |
Dual CPU ARM 9 200MHz |
| System: |
Android |
Product Description

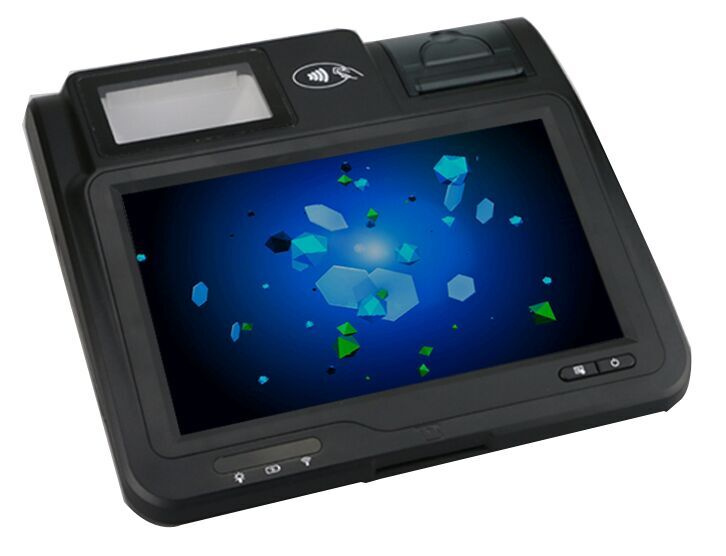

Android RFID POS Terminal 10.1 inch screen with android os,barcode scanner,thermal printer----Gc039B
CPU:RK3168 ARM Doule Cortex-A9 Processor,1.2Ghz Frequency
Built-in memory:RAM:DDR3 1GB 2*(256*16) Chip cache Nand Flash:MLC Nand Flash 4GB,24bit ECC can be extended to 32GB
System:Android 4.2 Version above
Display screen size:10.1 inch colorful RGB TFT Screen,16:9 wide screen image format
Display screen touch:G+F Capacitive Multi touch screenSolution:1024*600
Language:Chinese and English
Printer:support 58mm thermal printing
Camera:640*480 pixel(gray scale)CMOS camera 2 000 000 pixel+LED Backlightling light degress electrodes less adjustment
Camera range:82*51mm,can identify your ID card low distortion of wide-Shot fixed focusangle lens
GPRS:2 frequency 900/1800MHZ
3G:3G module 5 frequency:WCDMA HSDPA/EDGE/GPRS Compatible WM100
WiFi:IEEE802.11b/g/n compatible WAPIEnthernet(RJ45):Ethernet interface(RJ45) Support TCP/IP HTTP and other commonly used protocols
RFID:Frequency:13.65Mhz Mirafe card read/write module,meet with ISO1443A standard can support Mifare1 s5 Mifare 1 s70,Mifare light,Mifare ultra light,Mifare pro,ISO 10536,ISO7816 standard
IC Card:can read-write Class A/B and C(5V/3V/1.8V) Card in compliance with ISO-7816.To,T1 Protocol,in line with the EMV1/2 SpecificationSIM card:Meet the standard of three operators
Port:2 USB,1 RS232,1 RJ11,1 TF card,one DC power,one Mini USB OTG
Battery:7.4V 2000mAh
Power adapter:input 100-240V output DC 9V 5A with the power code
ShenZhen Hao Dexin Electronic Technology Co., Ltd., which was established in 2008, is a two-dimensional code recognition terminal / 3G wireless intelligent terminal / multimedia intelligent terminal researcher, manufacturer.
Our factory size is more then 3000 square meters, we have more than 30 QC, more than 30 engineer, and more than 300 workers.
More than 500 contract customers (including: China Mobile, China Telecom, China Unicom; Ping An Bank and property insurance and other financial institutions; China Southern Airlines, Xiamen Airlines, McDonald' S, Taobao, Shengda, Beijing travel online and other well-known e-commerce website
Our Main products:
1. All-in-one 2D Bar Code Android/Windows POS
2. Handheld 2D Bar Code Android/Windows POS
3.2D Bar Code Scanner
4. Terminal Bluetooth printer
5. Industry Tablet PC: For the ordering system, belief propagation, insurance, logistics, security, smart home, advertising systems, home entertainment, civil aviation, entertainment, personal entertainment, cultural transmission and other industries;
