Android Navigation System for Volkswagen Touareg 8" with Touch Navigation, Voice Navigation, WiFi, HD 1080P, Google Map, Play Store, Voice

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	LLT-W-VER1.3.1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Definition:	Original Car Screen(800*480)
Navigation:	800(GHz), 256(Storage), 800*400(HD Dispaly).
Map:	Google Map/Igo
Working Voltage:	9-12V
Type:	GPS Navigator
Use:	Automotive
Screen Size:	7"
Brand:	Lsailt

Product Description

Android navigation System for Volkswagen Touareg 8" with Touch Navigation,Voice Navigation , WIFI,HD 1080P,Google MAP, Play Store,Voice

Brand: Lsailt Model: LLT-W-VER1.3.1

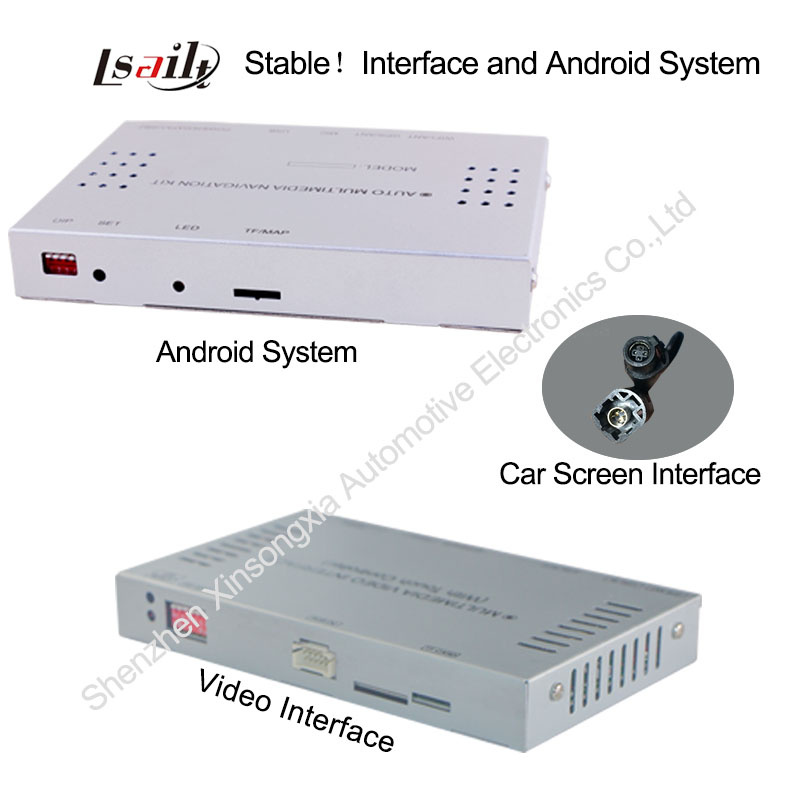

Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;

Suitable car model: 2010-2015 Volkswagen Touareg 8" (Car RNS850 System);

Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TMPS etc.

Product Description

1.Apply to: 2010-2015 Volkswagen Touareg 8" (Car RNS850 System);

2.Supports external video input,full touch DVD,Android system;

3.Multiple Switching ways:long press screen,double sliding,party control,etc;

4.Full-digital circuit, LVDS signal processing, achieve high-definition images;

5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;

6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;

7.It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;

8.Optional external RGB (800 x480) input,Andrews system connection,HD display;

9.UI of the original car UI,matching the original car style,integrated the original car system;

10.Full pull-in installation,realize nondestructive installation;

Applications

1.Vehicle:Original car with screen models;

2.Suitable for car Brand: 2010-2015 Volkswagen Touareg 8" series(Car RNS850 System);

3.Sales channels:Super auto supplies supermarket,car audio modification store,automobile service factory,standard 4S shop;

4.Suitable type:Original car with screen,support for touch control,HD display models.

Competitive advantages

1.Convenient installation,all on the plug;DO not destroy the original vehicle lines,simple operation;

2.Random installation,without secondary installation;

3.Simple functions,strong stability,more useful;

4.Convenient to upgrading map;

5. Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.

6.Why not produce all-in-one machine ? Because Android system heat badly.
To prevent against crashes,break down,we produce split to work more better and stable.

Product Accessories
Host Interface	1(standard configuration)
Host Android	1(standard configuration)
LVDS IN	1(standard configuration)
LVDS OUT	1(standard configuration)
AV IN/OUT	1(standard configuration)
POWER Line	1(standard configuration)
ANT	1(standard configuration)
Specification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(standard configuration)
SPK	1(standard configuration)
Map card	1(standard configuration)

Specifications
Model	LLT-W-VER1.3.1
Brand	(Lsailt)
Car Screen Size	8 "
Type	Silver interface box
Display	LVDS/GVIF Signal transmission(MiNi 4PIN)
RGB Input	One
AV Input	Two
DVR Input	One
Front View	One
Rear View	Track Reversing and Video
Customization	Negotiated
General Parameters Andrews
CPU	1.2G~1.6G Hz
Model	Cortex A9 dual-core processor,car rule MST786
RAM	DDR3 1GB
Flash	Inand standard equipped,8GB or 16GB
Navigation Storage	TF card
OS	Android 4.2/4.4
HVGA	800X480
WIFI	Support
Operating Voltage	DC(9-15)V
Operating Current	Normal 400 mA@12V
Operating Temperature	-20°C-+70°C
Storage Temperature	-30°C-+80°C
Audio Output	Left and right channels,stereo,distribute the signal and analog output

Function Parameters Andrews
USB Function
USB Interface	Two-way interface,can external connect a stern line of USB HUB,USB.
	Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA)
	Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0
Audio File Format	MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U
Functions of Audio Media	Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs
Format of Video File	MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM.
Functions of Video Media	Select video from list,Play, pause,the last one,the next one(Don't support background)
Format of Picture File	JPEG,JPG,GIF,PNG,BMP,WBMP
Functions of Picture Media	Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper.
Internet
WIFI	After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual)
3G	3G/WCDMA/CDMA2000/TD-SCDMA standard
	Support surf the Internet through 3G USB dongle or 3G mobile share next work
MAP (GPS Navigation)
Supportable navigation software		Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC
Map Upgrading		Through TF card
		Support 3D live navigation,(Need navigation software to support)
		Support navigation sound mixing/sound sent back
		Support real-time traffic(Need navigation software to support,internet)
		Support multiple navigation software
EQ
Audio Setting		More EQ simulation control
		balancing control
		Acoustic control
		Spectrum collection and variety shows
File Manager
Functions		Support to copy, move files between different storage medium and different folders
		Support to delete files
Task Manager
Functions		Support the task list of activities
		Support to switch the activities task
		Support to close the activities task
System with Google		The browser,calculator,calendar and send E-mail,Google store
Software Upgrading		TF or U flash disk
Voice Recognition		Support
System Language		Multi language
