| Prod Model: |
TP4130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier Speaker |
| Application: |
Commercial |
| Certification: |
CCC |
Product Description
1. High quality and good price!
2. Loudspeaker power amplifier and line array PA system are our strong points
3. Selling to 95 countries and regions
4. Most are CE and RoHS certified.

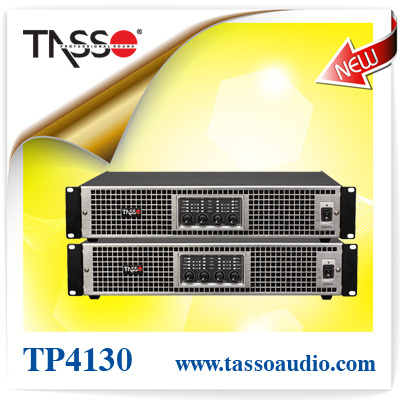

Using the most internationally advanced and efficient SMPS and CLASS TD power amplifier circuit, TP4130 was designed to a high-powered performance-based power amplifier.
Adopting the efficient and numerous tempered CLASS TD amplifier circuit, offering the 10000W (4Ω Bridged) huge output in a very limited 2U space, this kind of CLASS TD amplifier is close to the efficiency of CLASS D amplifier and it represents the highest technology of the industry. TP 4130 power amplifier adopts the patented design high quality porous-bronze heat sink, which processes the advantages of rapid cooling and without energy storage. What's more, this kind of copper heat sink can effectively ensure this highly efficient amplifier work in a low.
Contact information
Tel: +86-20-39141508
Fax: +86-20-31190966
Website: Www. Tassoaudio. COM
|
Model |
TP4130 |
|
8Ω stereo power(RMS) |
4× 1300W |
|
4Ω stereo power(RMS) |
4× 2200W |
|
2Ω stereo power(RMS) |
4× 2400W |
|
8Ω Bridged Monon power |
2× 4400W |
|
4Ω Bridged Monon power |
2× 4800W |
|
Frequency Response |
20HZ~20KHZ |
|
THD+N(Rated power; 4Ω /KHZ)% |
0.1% |
|
Signal Noise Ration (dB) |
110dB |
Amplifier gain selectable
(all channel)-real-panel swithches |
23, 26, 29, 32, 35, 38, 41, 44dB |
|
Input connectors(per ch) |
3-Pin XLR, electronically balanced |
|
Input Impedance |
20KΩ Balanced
10KΩ UnbaInaced |
|
Output Connectors |
Speakon Connectors(NEUTRIK) |
|
Power Requirement |
200-240V-50-60HZ |
|
Minimun power-up voltage, 220V |
180-260V-50-60HZ |
|
Dimension HWD(mm) |
95× 483× 378 |
|
Shipping HWD(mm) |
145× 575× 555(0.05CBM) |
|
NW/GW(Kg) |
13.5/17 |
Guangzhou TASSO PRO Audio Co., Ltd. is specialized in research, development and manufacture of PRO audio products (stage audio products) including Professional Speaker, PA Louspeaker, Line Array Speaker system, Professional Audio, PA Amplifier, Power Amplifiers, Professional Amplifier, Digital Amplifier, Switching Power Amplifier, Professional Sound, Professional Mixers, Processors, PA System, Karaoke Equipment, etc.
Rapid growth in export business recent years thanks to strict QA managment, effective marketing and excellent product image.
Products have been exporting to over 50 different countries and regions. TASSO, which is for export only, has become a well-recognized brand name in the industry worldwide.
