| Prod Model: |
XY-3101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Current: |
10mA |
| Working Voltage: |
12V DC (8V~16V) |
| Weight: |
120g |
| System Signal: |
PAL/NTSC |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
AC 220V |
| Audio Output: |
Digital Audio Coaxial |
| Video Output: |
Video |
| Screen Size: |
Driving Aid Camera System |
| Combination: |
All Around Control |
| Support Format: |
Driving Aid Camera System |
Product Description

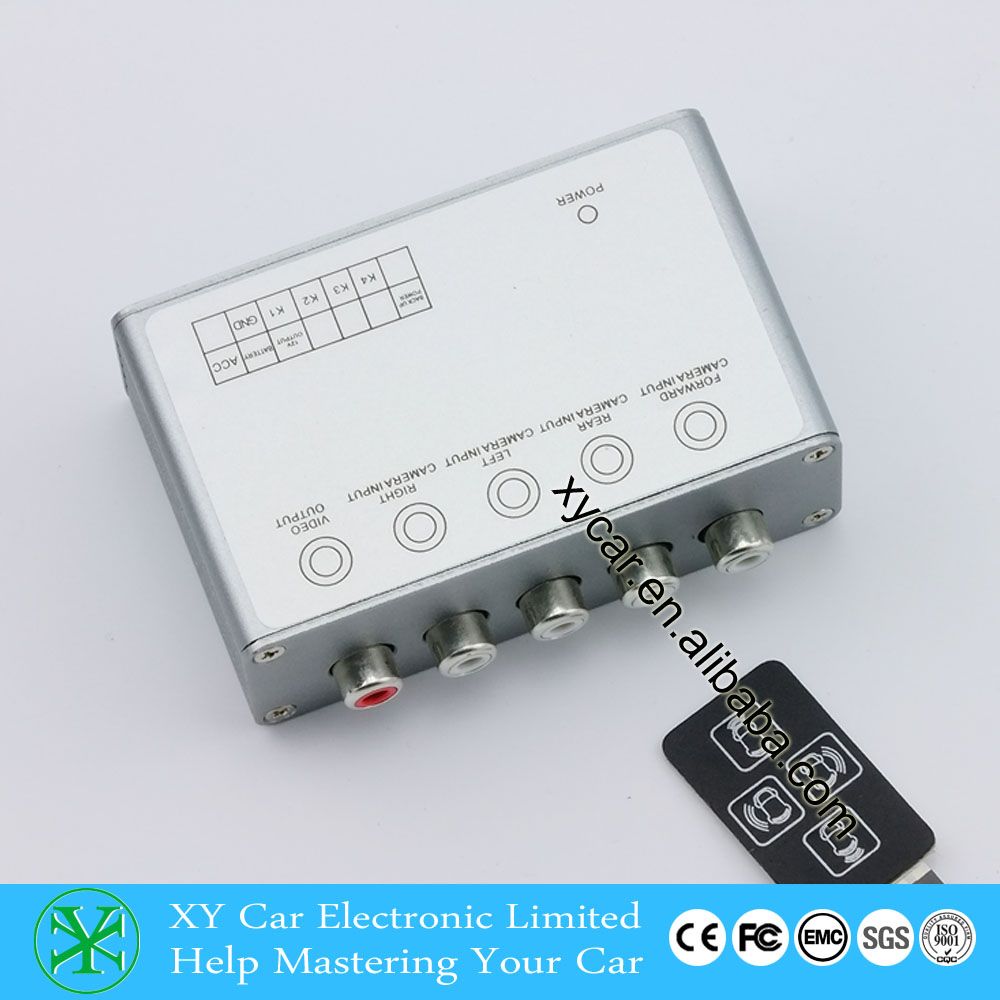

4 channel input special for 12V car cameras control box ,blind spot assist 360 view camera system,with mirror switch for each camera,help parking and realtime monitoring
Description:
4 channel camera video controled by 1 combined switch
Front/Rear/Left/Right each camera video could be sellected
To monitoring the car blind area.
Help driving safely.
Product feature
Easy for camera video selecting and switching.
High quality camera video.
Simple for wire connection.
Could supply +12V DC power to all the cameras or monitor.
Automatically shut down all the camera or monitor power when no camera triggered.
Protect cameras and monitor from long time working.
Easy to install on cars.
Specifications:
Working current: 10mA
Working voltage: 12V DC (8V~16V)
Weight: 120g
System signal: PAL/NTSC
Video output: 1.0VPP/75Ω
Working temperature: -20~80
Operation Temperature: -40~85
Functions:
1. Automatical front view when starting and reversing finished:
When car engine starts, the system will activate the car monitor and display the front camera view for 10 seconds, then turn off.
After reversing, the system will activate the car monitor and display the front camera view for 10 seconds(only when revserse trigger wire connected), then turn off.
2. Automatically rear view:
When you pull the reverse gear (reverse trigger wire connected), the system will activate the monitor and display rear camera view till the reverse gear back.
3. Front/Rear view control:
Press the Front/Rear control switch, car monitor will display the Front/Rear camera view for 10 seconds, then turn off.
4. Side view control:
Press the Left/Right control switch, car monitor will display the Left/Right camera view for 10 seconds, then turn off.
5. System shut down:
The system will automatically shut down 10 seconds after the last control button pressed and reversing finished.
User could also shut down the system within 10 seconds, by press the corresponding button again(when reversing not triggered).
Camera display priority:
Last pressed switch camera has the priority(when reversing not triggered).
When reversing wire is triggered, rear view camera has the highest priority.
Packing list:
Control box * 1PCS
Adapt cable with combined control switch*1PCS
User's manual *1PCS
| Working current: | 10mA |
| Working voltage: | 12V DC (8V~16V) |
| Weight: | 120g |
| System signal: | PAL/NTSC |
| Video output: | 1.0VPP/75Ω |
| Working temperature: | -20~80 |
| Operation Temperature: | -40~85 |
