| Prod Model: |
XY-3028 |
| The System Working Current: |
Max: 50mA |
| System Signal: |
PAL/NTSC/Secam |
| Working Temperature: |
-20~80 |
| Operation Temperature: |
-40~85 |
| Combination: |
Bluetooth |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
| Audio Output: |
Digital Audio Coaxial |
| Video Output: |
Video |
| Screen Size: |
Controller Box |
| Resolution: |
Controller Box |
| Support Format: |
Controller Box |
Product Description
4 channel input special for 12~24V vehicle cameras control box ,blind spot assist 360 view camera system,with mirror switch for each camera,help parking and realtime monitoring

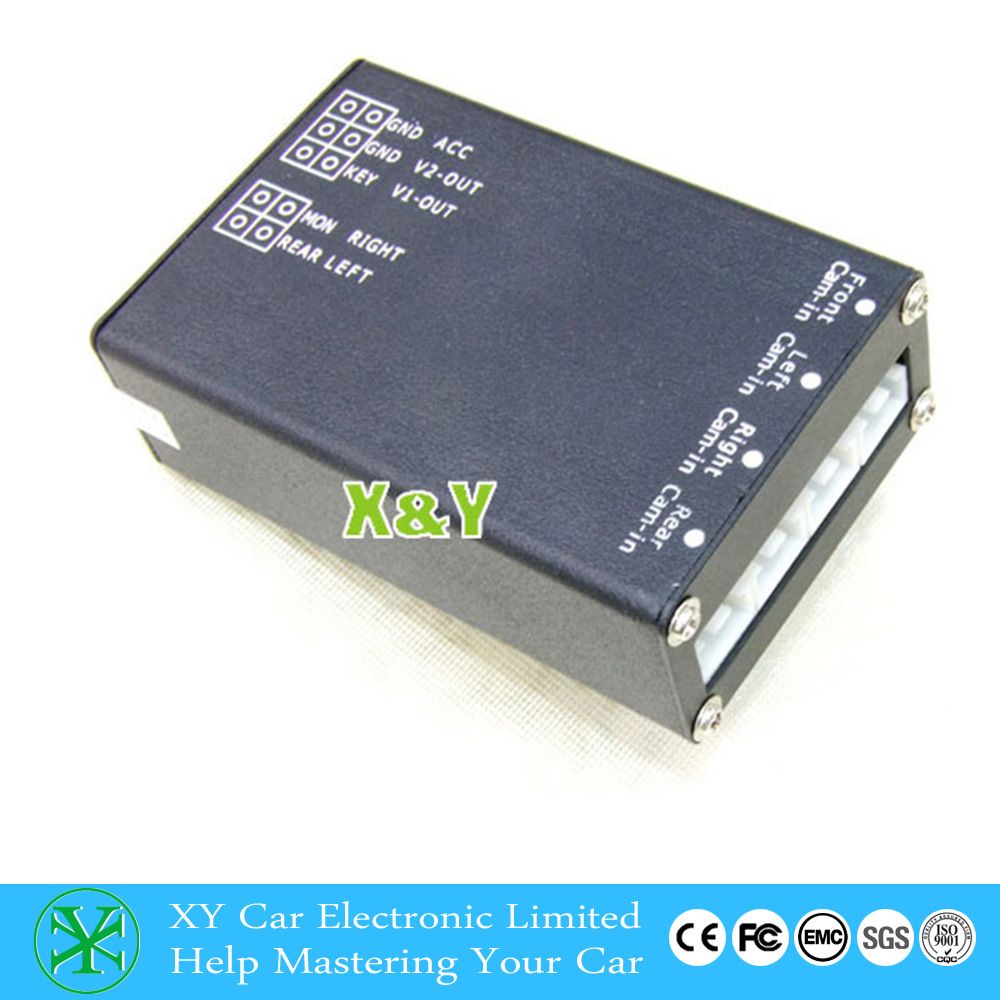

All round view car camera control box(XY-3028)
Description:
Video output: Two videos output, one for car monitor, the other for car DVR.
Front view camera power: Supplied by control box system.
Rear view camera power: Supplied by control box system, or could be supplied by reverse lamp power.
Left/Right side view camera power: Supplied by control box system
Functions:
1. Automatically rear view and front view:
When you pull the reverse gear (Left/Right turning no triggered), the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera for 10 seconds then shut off.
2. Front view mode:
Front view controlled by switch(included). Press the control switch for 2 seconds, car monitor and car front view camera will be working all the time, if no other trigger working. And then you could shut off the front view video by press the control switch again.
3. Side view mode:
Press the control switch less than 1 second to enter/quit Side View Mode.
When you turn on the turning switch, this system will activate Monitor and Side view camera (Left/Right side view camera is controlled by Left/Right steering lamp). The monitor and camera will turn off after 1.5 seconds when steer turning is finished.
Trigger priority:
Left View>Back View>Right View>Front View
Switch function:
Press for less than 1 second: Enter/Quit Side View mode
Press for 2seconds: Front View always working
Parameters:
The system working current: Max: 50MA. (Excludes working current of cameras)
The system working power: 9-30V. (Power supply to cameras is the same as the system input voltage, in 24V vehicle, please use 24V cameras)
System signal: PAL/NTSC/SECAM
Video output: 1.0VPP/75Ω
Working temperature: -20~80
Operation Temperature: -40~85
Packing list:
Control box * 1pcs
Front view control switch *1pcs
Adapt cable *6pcs
User's manual *1pcs
| Working current: | 10mA |
| Working voltage: | 12V DC (8V~16V) |
| Weight: | 120g |
| System signal: | PAL/NTSC |
| Video output: | 1.0VPP/75Ω |
| Working temperature: | -20~80 |
| Operation Temperature: | -40~85 |
