| Prod Model: |
A10-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Brightness: |
Fresh Color |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Touch Screen Type: |
Capacitive |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Display Technology: |
FSTN/CSTN |
| Usage: |
Notebook LCM |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
1ms |
| Customized: |
Customized |
Product Description
Specification:
Over size(W*H): 84*44/58*32
Viewing area: 63*25/38*16
DOT size: 1.15*1.36/0.56*0.66
DOT pitch: 0.51*0.51
Driving method: 1/64
Controller LSI or Equiv: S6B0108A
ICPackage: COB
Viewing Angle: 12H/6H
LCD panel: TN /STN
Operation TEMP: 0-50C
Storage TEMP: -10-60C

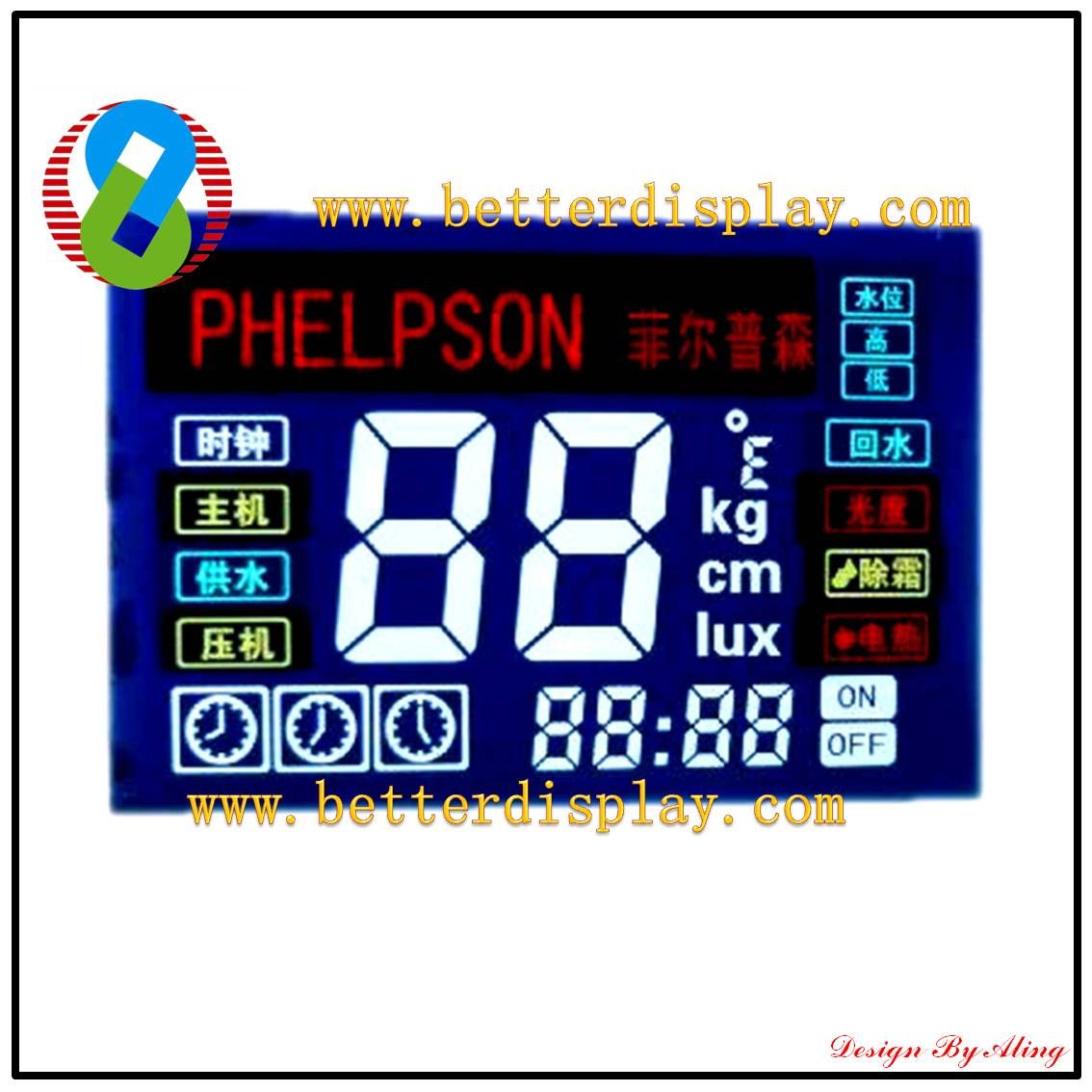

Graphic type FS-LCD is the first phase products of FS-LCD technology; We have applied this patent product to Flight Information Display in airport, which is the first color FS LCD for public information display in the world. It has got great reputation in LCD industry, features on high quality color display, super wide view angle, high brightness, low power consumption(eco-friendly) and cost saving. Its technology principle is superior to the traditional one, using a series of RGB backlight to show the image color instead of traditional color filter. More and more airport, metro or station hall will use our FS-LCD to upgrade their information display.
High brightness (can be used in strong illumination occasion)
Fresh color (more and much clearer with bland display)
High speed response (never leave traces at any speed)
Wide viewing angle(can identify active contents distinctly at any view direction)
High contrast (more darkness compared with traditional LED)
Low power consumption (1/5 of traditional LED)
We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,
We had at least 50 people for research and development, Quality control, 300 workers on the production lines.
Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.
Quality control By: IQC -IPQC-OQC
Quotation FOR
LCD: 1-2days
LCM: 1-2days
Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days
Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days
Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;
Best Services
Our commitment is 24 hours to solve customer complain and give the solution
|
Pin NO. |
Symbol |
Function |
Remark |
|
1 |
Vss |
Power Supply |
0V |
|
|
2 |
Vdd |
+5V |
|
|
3 |
Vo |
For LCD |
Variable |
|
4 |
RS |
Register Select (H: Data L: Instruction) |
|
|
5 |
R/W |
L:MPU to LCM H:LCM to MPU |
|
|
6 |
E |
Enable |
|
|
7-14 |
DB0-DB7 |
Data Bit 0-7 |
|
|
15 |
CS1 |
Chip Select 1 |
|
|
16 |
CS2 |
Chip Select 2 |
|
|
17 |
/RST |
RESET |
|
|
18 |
Vee |
Negative Power Supply |
|
|
19 |
NC/A |
Anode of LED Unit |
|
|
20 |
NC/K |
Cathode of LED Unit |
|
