| Prod Model: |
TC-802 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speaker Size: |
13mm |
| Audio Output: |
30MW |
| Microphone Size: |
6.0*5.2mm |
| Style: |
In-ear |
| Microphone: |
With Microphone |
| Function: |
for Two Way Radio |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
All Kinds of Connector |
| Type: |
Wired Earphone |
| Use: |
All |
Product Description

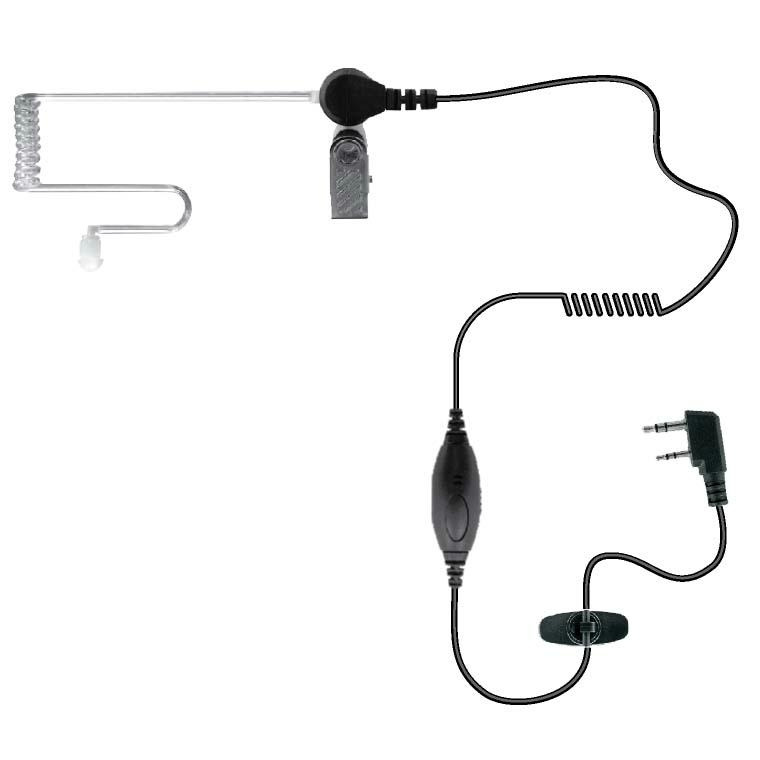

Audio Tube Earphone/Earpiece/Headset For Walkie Talkie
TC-802
Air tube Microphone for Two-Way Radio.
1.Acoustic tube ear/microphone for two-way ..
2.Talk and listen without holding the radio. VOX/PTT switch.
3.High-quality transparent acoustic earphone made of durable,surgical grade tubing for great comfort and a low-profile cook.
4.Clear sound performance.
5.The unite provides and discreet communication.
6.Available for Icom,standard,Yaesu,Motorola, transceivers and other brands.
Speaker:
Speaker size:13mm
Sound pressure level:96dB±3dB
Impedance:32 Ω ±15%
Audio output:30mW
Microphone:
Microphone size:6.0*5.2mm
Frequency response:20-16000Hz
Sensitivity:-36dB±2dB
Impedance:2.2K Ω
Note
1)We will offer you quotation based on your specific request and Quantities
So pls kindly let us know the specific connector. And other requirements that you prefer then we are able to quote accordingly.
2)We are able to tune various connector for an earphone as per need, and if
Necessary, we will give your our best recommendations.
3)The picture and specification above are just for your reference.
4)Sample available. | Connector Code | Connector Figure | | Radio Models |
| K | |
| KENWOOD:TK-272G/372G,TK3130 ProTalk XLS, TK-3131 Free Talk XLS, TK-220/320,240/340, 240D/340D,TK208/308,430/431,250/350/353, TK260/270,260G/360G,360/370,270G/370G, 248/348, 2100/3100, 2160/3160 ProTalk, 3101
FreeTalk XL 2102/3102 ProTalk... etc. Radio |
| K1 | |
| KENWOOD: TK480/481, 290/390/280/380,
TK-2140/3140...etc. Radio |
| M | |
| MOTOROLA: GP300, SP50, P110, P-1225/P1225LS, LTS2000, CP88,
CP150, CP200, CT150, CT250, CT450, CT450LS, GP308, P080,
P2000, PRO2150, PRO3150, P040, P080, GP68, GP88, PR400,SP10,
Sp21, XTN500, XTN600, PRO1150, CP100, PMR446, XTN446,
XU1100, CLS1110, CLS1410, XU2600 ... etc. radio,HLN9716,
HLN9482A... etc. Adaptor |
| M1 | |
| MOTOROLA: VISAR radio, BDN6676, HLN9717, PMLN4455 adaptor
Plug type: Ø 3.5mm S/P thread |
| M2 | |
| MOTOROLA: Spirit GT/ Spirit GT+/ Talkabout 270, 280/T289,
T5100, T5200, T5600, T5620, T5700, T5720, T5800, T5820,
T7200, fr50/f60... etc. FRS radio |
| M3 | |
| MOTOROLA: XTS3000/Astro, XTS3500, XTS2500/XTS5000
and HT-1000 Series (HT-1000, MT2000, MTS3000, MTX8000,
MTX838, MTX9000, MTX-LS, JT1000), Gp900... etc. Radio |
| M4 | |
| MOTOROLA: HT750, HT1250, HT1250LS, HT1550/HT1550XLS,
MTX850/MTX850LS, MTX8250/MTX8250SL, MTX950/MTX9250,
GP140, GP320, GP328, GP338, Gp340,GP360, GP380, GP640,
GP1280, PRO5150, PRO9150... etc. Radio |
| M5 | |
| MOTOROLA: GP-344/388, GP-328+/338+, EX-500/600, GL-2000... etc. Radio |
| M6 | |
| MOTOROLA: MTH500, MTH650, MTH800, MTP850... ect. radio.
Plug type: Ø 2.5mm S/P with copper ring |
| |
| MOTOROLA: MTH500, MTH650, MTH800... Etc. radio.
Plug type: Ø 2.5mm S/P with copper ring |
| M7 | |
| Motorola Multiple-Pin
Motorola Mototrbo DGP4150/4150+/6150/6150+
Motorola Mototrbo DP3400/3401/3600/3601
Motorola Mototrbo XiR P8200/8208/8260/8268
Motorola Mototrbo XPR6300/6500/6550 |
| M8 | | | |
| Y | |
| VERTEX/YAESU: VX-400, VX-410, VX-420... etc. radio
Plug type: Ø 3.5mm S/P 4C |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
