| Prod Model: |
KF80-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Air to Water Heat Pump |
| Compressor: |
Rotary/Scroll |
| Refrigerant: |
R314A//R410A/R417A |
| Ambient Temperature: |
-7 to 43 Degree Celsius |
| Power Supply: |
220-240V |
| Max Outlet Water Temperature: |
60 Degree Celsius |
| Cabinet: |
Stainless Steel |
| Throtting Device: |
Electrical Expansion Valve |
| Brand: |
New Times Heat Pump |
| Use: |
Domestic Hot Water Water Heater |
| Heat Source: |
Air-source + Water-source |
| Certification: |
RoHS |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Villa Family |
Product Description

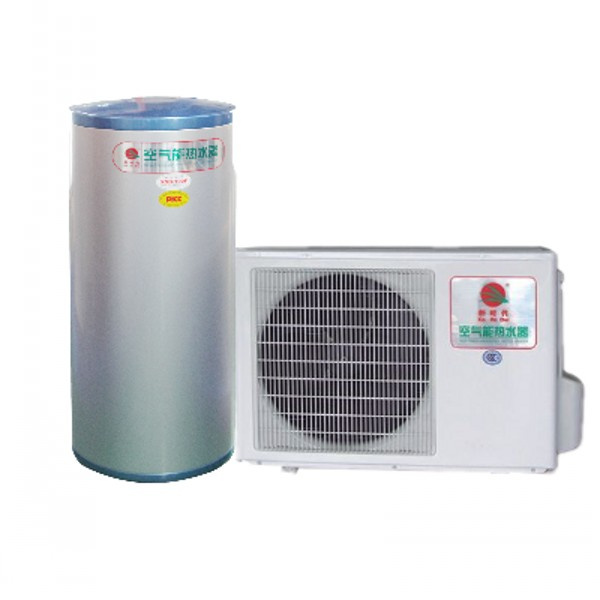

Air source split heat pump water heater for home use
Features
Eco-friendly, save energy & cost
Base frame and external panels made of galvanized powder coated steel
Intelligent digital controller
Japanese Panasonic Compressor
Stable water flow
Automatic adjustment for water pressure &pressure unloading protection
All weather running
Automatic defrosting & desludging function
Water-electricity separation
Easy to install & maintain
|
Model |
|
KF80-A/100F |
KF80-A/150F |
KF120-A/100F |
KF120-A/200F |
KF120-A/320F |
|
Power supply |
V/Ph/Hz |
208~230V/1PH/50Hz |
|
Heating capacity |
kW |
3.71 |
3.71 |
4.95 |
4.94 |
4.93 |
|
Btu/h |
12658.52 |
12658.52 |
16889.4 |
16855.28 |
16821.16 |
|
Rated power input |
kW |
0.9 |
0.9 |
1.25 |
1.25 |
1.25 |
|
COP |
|
4.12 |
4.12 |
3.96 |
3.95 |
3.94 |
|
Water feed speed |
L/h |
80~100 |
80~100 |
120~150 |
120~150 |
120~150 |
|
Rated outlet water temp. |
Degree Celsius |
55 |
|
Max outlet water temp. |
Degree Celsius |
60 |
|
Ambient temperature |
Degree Celsius |
(-7~+43) |
|
Compressor |
|
Rotary×1 |
|
Fan discharging |
|
Horizontal |
|
Refrigerant |
|
R22/R407c/R410a |
|
Level against electric shock |
|
I |
I |
I |
I |
I |
|
Water proof grade |
|
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
|
Pressured water tank capacity |
L |
100 |
150 |
100 |
200 |
320 |
|
Water tank dimension |
mm |
470/1121 |
470/1592 |
470/1121 |
555/1333 |
555/1839 |
|
Tank shipping dimension |
|
560/540/1100 |
560/540/1600 |
560/540/1100 |
650/630/1420 |
794/774/1235 |
|
Heat pump dimension |
mm |
850/260/540 |
|
Heat pump shipping dimension |
mm |
930/360/610 |
|
Test condition |
Heating: Ambient temp. (DB/WB): 20 /15 Degree Celsius, water temp.(inlet/outlet): 15/55 Degree Celsius. |
|
The design and specifications are subject to change without prior notice. |
