| Prod Model: |
HLRC5-YC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Source: |
Air-source |
| Certification: |
CB |

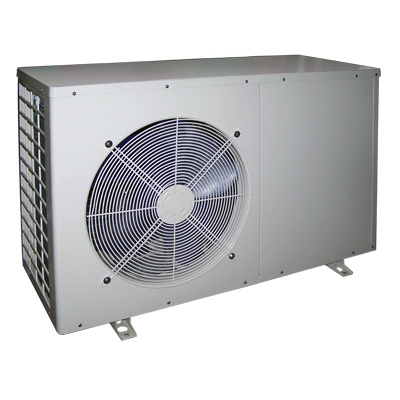

Product Description
Our products include air source heat pumps, air to water heaters, solar water heater, flat plate solar collectors, water tanks etc., which is energy-saving and eco-friendly.
Japanese Copeland Compressor
Titanium heat exchanger
Stainless steel piping inside
Evaporator is larger than usual size to keep its high efficiency
Refrigerant R407c: - ODP = 0, GWP=1610
36 patents with self-developed
Heating in winter and cooling in summer
Normal operation in estra-low temperature of -15~20º C with COP1.5~2.
|
Technical parameters |
|
Model |
|
HLRC5-YC |
|
HP |
|
2HP |
|
heating capacity |
KW |
6.34 |
|
BTU/h |
22000 |
|
COP |
|
4.25 |
|
cooling capacity |
KW |
5.08 |
|
BTU/h |
17000 |
|
EER |
|
2.82 |
|
water flow rate |
L/h |
300 |
|
outlet-temp |
ºC |
40 |
|
Max outlet-temp |
45 |
|
Power input-heating |
kw |
1.5 |
|
-cooling |
1.8 |
|
current input-heating |
A |
9.1 |
|
-cooling |
10.2 |
|
Max power input |
KW |
2.3 |
|
Max current input |
A |
10.8 |
|
Power supply |
V/PH/HZ |
220V~1N~50Hz |
|
Ambient temp |
ºC |
(-12 ºC~ + 43 ºC) |
|
Rated water pressure |
Mpa |
0.2~0.6 |
|
Compressor type |
rotary*1 |
|
Net weight |
kg |
67 |
|
Package weight |
kg |
85 |
|
Dimension |
mm |
930*370*700 |
|
Package size |
mm |
1190×480×720 |
|
Refrigerant Charge |
Type |
R 407C |
Heating: Ambient temp.(DB/WB): 7 ºC/ 6 ºC, water temp.(in/out): 30 ºC/ 35 ºC;
Cooling: Ambient temp.(DB/WB): 35 ºC/ 24 ºC, water temp.(in/out): 12 ºC/ 7 ºC. |
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
