| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Source: |
Air-source + Water-source |
| Certification: |
CE |
Product Description

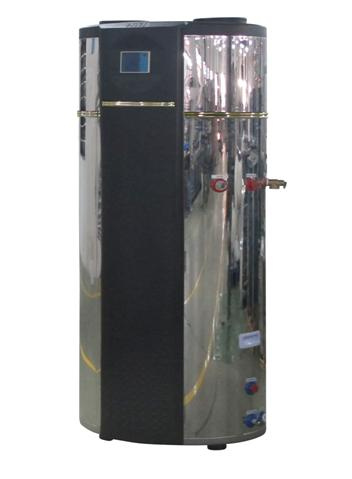

This series of Domestic Monobloc Heat Pump adopts high efficiency heat exchanger and built-in water pump inside the heat pump, which ensures not only high efficient performance of the system but also easy installation.
Features
1. Famous brand compressor
2. Water pump built in monobloc
3. Automatic defrosting
4. Intelligent control
5. Safe, reliable, stable running
6. Long working life
7. Low noise & vibration
8. Easy to install & operate
Optional:
1. Refrigerant: R22, R410A, R134A, R417A, R407C
2. Cabinet: Stainless steel/galvanized power coated steel, plastic
3. Heating exchanger: Tube-in-shell, tube in tube
|
Model |
|
KF120-B |
|
Heating capacity |
KW |
5.58 |
|
COP |
|
4.46 |
|
Rated heated water output |
L/h |
120 |
|
Rated outlet water temp. |
° C |
55 |
|
Maxoutlet water temp. |
° C |
60 |
|
Rated power input |
kw |
1.25 |
|
Rated current |
A |
5.89 |
|
Power supply |
Voltage/Hz/Phase |
220-240V/50Hz/1Ph |
|
Compressor type |
|
Rotary |
|
Number of Compressors |
|
1 |
|
Heat exchanger type |
|
High efficiency tube in tube heat exchanger |
|
Throttling device |
|
Capillary |
|
Fan type |
|
Low noise high efficiency axial type |
|
Fan discharging |
|
Horizontal |
|
Fan quantity |
|
1 |
|
Fan input |
W |
60 |
|
Fan speed |
RPM |
830 |
|
Ambient temperature |
° C |
(-10° C~43 ° C ) |
|
Refrigerant |
|
R22/R410A/R134A |
|
Noise in 1 meter distance |
dB |
≤ 54dB(A) |
|
Water pipe size |
inch |
Rc3/4 |
|
Suggested water tank capacity |
L |
200-300 |
|
Cabinet |
|
Add plastic |
|
Low pressure protection system |
|
|
|
High pressure protection system |
|
|
|
Water flow switch |
|
|
|
Automatic defrosting system |
|
|
|
Product Dimensions |
mm |
710/310/940 |
|
Packaging Dimensions |
mm |
850/450/1020 |
|
Net weight |
kg |
62 |
|
Gross weight |
kg |
74 |
|
Testing condition |
Heating: Ambient temp. (DB/WB): 20° C/15° C, water inlet/outlet Temp: 15° C° C/55° C. |
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.
Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.
The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.
Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
