| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
380v 50/60Hz |
| Optional: |
220v 50/60Hz |
| Usage: |
Industry |
| Purifying Technology: |
Cleaning Room |
| Type: |
HEPA Filter |
| Structure: |
Floor Standing |
Product Description

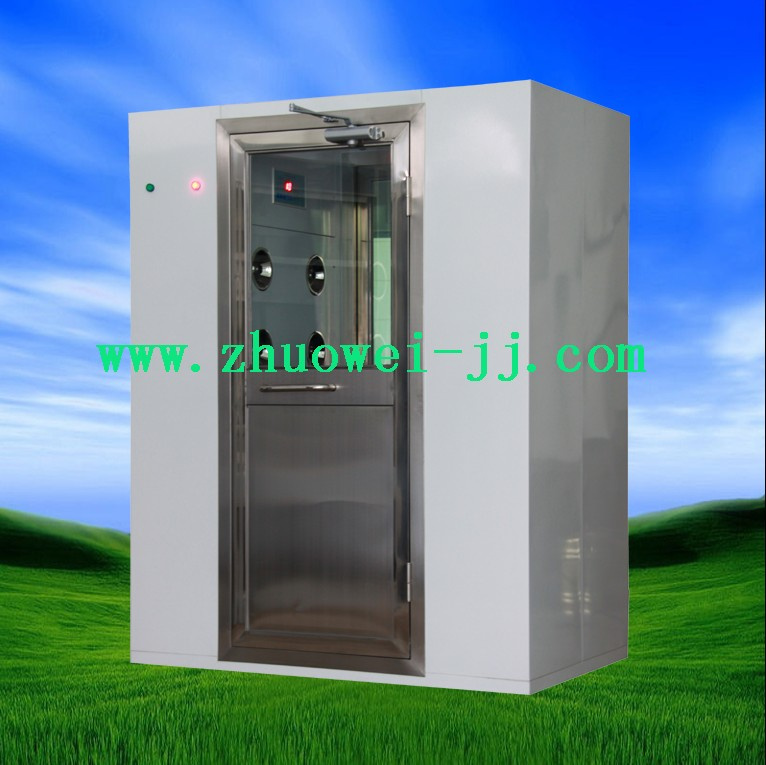

Air shower is a necessary passage for person or goods entering into the clean room in order to minimize contamination. As moving through the air shower, particle and dust are removed. The air velocity of 15-20m/s ensures the efficiency.
Features: Being Installed in clean room entrance for removing dust from the surface of the body and goods:
1. Photoelectric sensor, automatic blow
2. Stainless steel electric interlock with two-door
3. Stainless steel nozzles
Model,dimensions
¶meters
Target | 1 person with one side blowing | 1 person with two sides blowing | 2 persons with two sides blowing | 3 persons with two sides blowing | 4 persons with two sides blowing | Air Shower Passage |
| Person/persons per cycle | 1 | 1 | 2 | 3 | 4 | |
| Air shower time | 0-99S Adjustable |
| Nozzles | 6 (one side) | 12 (two sides) | 24(two sides) | 36 (two sides) | 48(two sides) | 60 (two
sides) |
| Nozzle Diameter | φ38mm |
| Spurt wind speed | 15-20m/s |
| Filter efficiency | ≥99.99% @ 0.5 micron |
Internal work area dimensions
W×H×D (mm) |
800×1875×860 |
800×1875×860 |
800×1890×1860 |
800×1890×2360 |
800×1890×2860 |
800×1890×4860 |
| External dimensions(mm) | 1300×2050×1000 | 1600×2050×1000 | 1600×2050×2000 | 1600×2050×2500 | 1600×2050×3000 | 1600×2050×5000 |
| Power | 3Phase 380V 50Hz |
| Max. power(w) | 700 | 1400 | 1400 | 1400 | 2800 | 5600 |
| Weight(kg) | Appro.250 | Appro.300 | Appro.350 | Appro.500 | Appro.600 | |
| HEPA filters’ dimensions | 610×610×120
One piece | 610×610×120
Two pieces | 800×610×120
Two pieces | 915×610×120
Two pieces | 610×610×120
Four pieces | 610×610×120
|
