| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industry |
| Purifying Technology: |
Cleaning Room |
| Type: |
HEPA Filter |
| Structure: |
Floor Standing |
Product Description

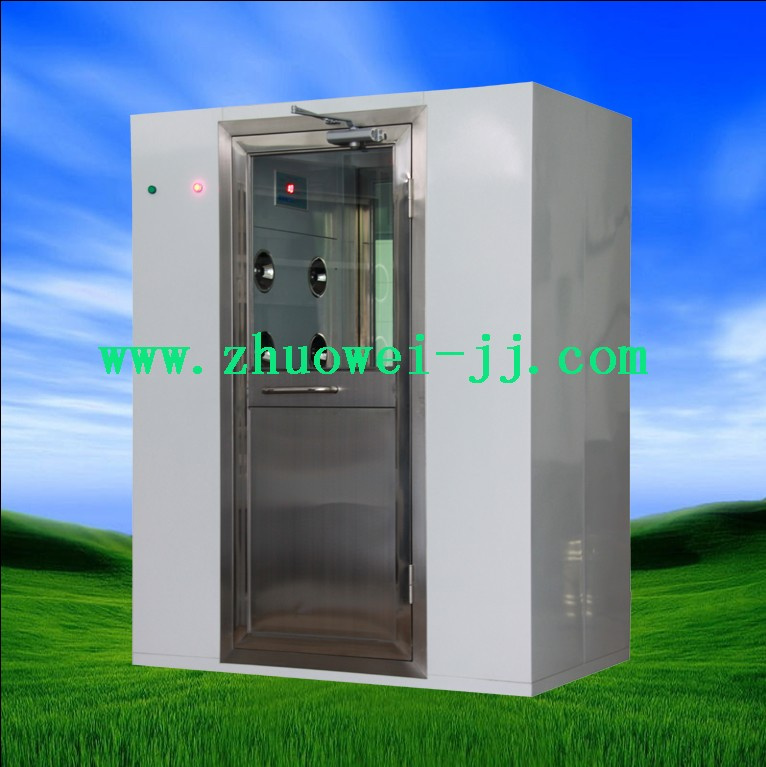

As clean room equipment, installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, automatic air shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside, and all stainless steel (SS201 or SS304; Thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.
Features:
1. Photoelectric sensor, automatic blow
2. Electronically interlocked with double stainless door
3. Stainless nozzles
4. Audio system
5. With Auto, Stop, Manual, Emergency Stop function keys
6. An Emergency Stop push button: Will override the operating cycle to release the door locks immediately
7. Custom sizes are possible
Model,dimensions
¶meters
Target | 1 person with one side blowing | 1 person with two sides blowing | 2 persons with two sides blowing | 3 persons with two sides blowing | 4 persons with two sides blowing | Air Shower Passage |
| Person/persons per cycle | 1 | 1 | 2 | 3 | 4 | |
| Air shower time | 1-99S Adjustable |
| Nozzles | 6 (one side) | 12 (two sides) | 24(two sides) | 36 (two sides) | 48(two sides) | 60 (two
sides) |
| Nozzle Diameter | φ38mm |
| Spurt wind speed | 15-20m/s |
| Filter efficiency | ≥99.99% @ 0.5 micron |
Internal work area dimensions
W×H×D (mm) |
800×1875×860 |
800×1875×860 |
800×1890×1860 |
800×1890×2360 |
800×1890×2860 |
800×1890×4860 |
| External dimensions(mm) | 1300×2050×1000 | 1600×2050×1000 | 1600×2050×2000 | 1600×2050×2500 | 1600×2050×3000 | 1600×2050×5000 |
| Power | 3Phase 380V 50/60Hz, 1 phase 220V 50/60Hz |
| Max. power(w) | 700 | 1400 | 1400 | 1400 | 2800 | 5600 |
| Weight(kg) | Appro.250 | Appro.300 | Appro.350 | Appro.500 | Appro.600 | |
| HEPA filters’ dimensions | 610×610×120
One piece | 610×610×120
Two pieces | 800×610×120
Two pieces | 915×610×120
Two pieces | 610×610×120
Four pieces | 610×610×120
|
