| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Heating and Cooling |
| Min.Water Outlet Temp.: |
7 Degree C |
| Max.Water Outlet Temp.: |
60 Degree C |
| Working Condition: |
-7 C to 43 C |
| Compressor: |
Copeland |
| Evaporator: |
Blue Hydrophilic Aliuminium Foil\Wavy Fin and Cop |
| Condenser: |
Double-Pipe Heat Exchanger |
| Expansion Valve: |
Danfoss |
| OEM: |
Available |
| HVAC Solution: |
Available for Your Special Project |
| Certification: |
CCC |
| Condition: |
New |
| Type: |
Air-Cooled |
Product Description

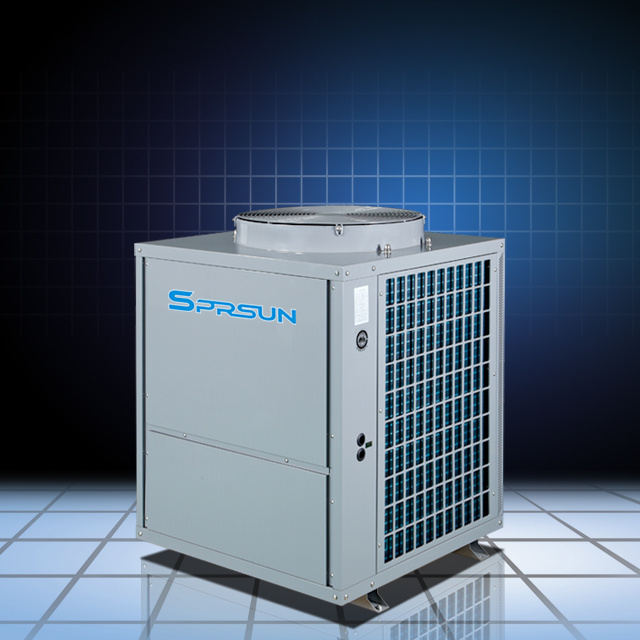

CE Approved Air cool Chiller (8.1~ 75.6KW)
Features
1. House heating and cooling Heating and cooling mode can be changed
2. Working condition range: -7 to 43 Degree C
3. Max outlet water temp for heating: 60 Degree C and min outlet water temp for cooling is 7 Degree C
4. Copeland scroll compressor
5. LCD display controller
6. Multiple protection and query function
7. Easy to install, installed on outdoor wall or in yard or on the top of house
8. Refrigerant: R407C, R410A, R404C, R417A can be an option.
9. Heating capacity: 8.1~ 75.6KW
|
Model |
CGK/C-12(HC) |
CGK/C-12(HC) |
CGK/C-18(HC) |
CGK/C-22(HC) |
CGK/D-36(HC) |
CGK/D-42(HC) |
CGK/D-52(HC) |
CGK/D-72(HC) |
CGK/D-95(HC) |
|
Heating input power |
Heating mode |
KW |
2.03 |
2.29 |
4.09 |
4.9 |
8.24 |
9.84 |
10.6 |
14.2 |
18.8 |
|
Heating capacity |
KW |
8.1 |
9.1 |
16.4 |
19.5 |
32.8 |
39.1 |
43.4 |
57.2 |
75.6 |
|
COP |
|
3.99 |
3.97 |
4.01 |
3.98 |
3.98 |
3.97 |
4.09 |
4.03 |
4.02 |
|
Heating current |
A |
10.2 |
4.5 |
7.5 |
8.5 |
14.5 |
17 |
20 |
26 |
33 |
|
Water flow when heating |
L/h |
2000 |
2200 |
4000 |
4600 |
8000 |
9200 |
10500 |
13800 |
18500 |
|
Cooling input power |
Cooling mode |
KW |
2.32 |
2.62 |
4.71 |
5.42 |
9.42 |
10.6 |
12.3 |
15.9 |
22.3 |
|
Cooling capacity |
KW |
6.3 |
7.1 |
12.8 |
15.1 |
25.6 |
29.6 |
33.4 |
43.8 |
60.2 |
|
EER |
|
2.72 |
2.71 |
2.72 |
2.79 |
2.72 |
2.79 |
2.72 |
2.75 |
2.7 |
|
Cooling current |
A |
10.7 |
4.8 |
8 |
9.3 |
16 |
18.5 |
22 |
28 |
36 |
|
Water flow |
L/h |
1400 |
1600 |
2800 |
3400 |
5600 |
6700 |
7500 |
10200 |
13500 |
|
Water pressure drop |
Kpa |
≥ 70 |
≥ 70 |
≥ 70 |
≥ 80 |
≥ 80 |
≥ 80 |
≥ 70 |
≥ 70 |
≥ 70 |
|
Noise |
dB(A) |
50 |
50 |
60 |
60 |
65 |
65 |
65 |
75 |
75 |
|
Net weight |
kg |
102 |
102 |
148 |
158 |
288 |
306 |
380 |
492 |
594 |
|
Gross weight |
kg |
108 |
108 |
158 |
168 |
301 |
326 |
420 |
542 |
654 |
|
Pipe size |
mm |
25 |
25 |
25 |
25 |
32 |
32 |
50 |
50 |
65 |
|
Power supply |
V |
220V ~ 240V |
380V ~ 415V |
380V ~ 415V/50Hz/3ph |
380V ~ 415V/50Hz/3ph |
|
Dimension |
mm |
830*490*1160 |
830*490*1160 |
1110*490*1260 |
1110*490*1260 |
1450*740*1150 |
1580*855*1200 |
1500*800*1515 |
1850*1000*1950 |
2000*1100*2080 |
|
Packing dimension |
mm |
900*500*1320 |
900*500*1320 |
1160*500*1410 |
1160*500*1410 |
1540*820*1320 |
1700*950*1470 |
1600*980*1760 |
1940*1100*2180 |
2090*1200*2260 |
|
Fan motor |
|
90W*1 |
90W*1 |
90W*2 |
90W*2 |
250W*2 |
250W*2 |
550W*2 |
800W*2 |
1150W*2 |
