Prod Model: |
JC-013 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Average Power Consumption: |
350W / Sqm |
Size: |
Can Be Customized by The Request of Customer |
Cabinet: |
Sample Cabinet, Frame and Water-Proof Cabinet |
Color Options: |
Single Color, 7 Colors and Full Color |
Communication Port: |
USB, RS232, Internet Communication Port |
Working Hours: |
100000 Hours |
View Distance: |
5-100m |
Brightness: |
>2300 Nits |
Refresh Frequency: |
>300Hz |
Max. Power Consumption: |
Below 500W |
Tube Chip Color: |
Single Color |
Display Function: |
Image & Text Display |
Pixel Density: |
10,000 dots / m² |
Scanning Mode: |
1/4 Scan |
Display Type: |
LED Dot Matrix Display |
Application: |
Shopping Guide |
Certification: |
ETL |
Pixel Pitch: |
4.75mm, 7.62mm, 10mm, 16mm, 20mm Ect |
Pixel Configuration: |
1r, 1g, 1b, 1W, 1y |
IP Rating: |
IP65 |
Product Description
Product Description

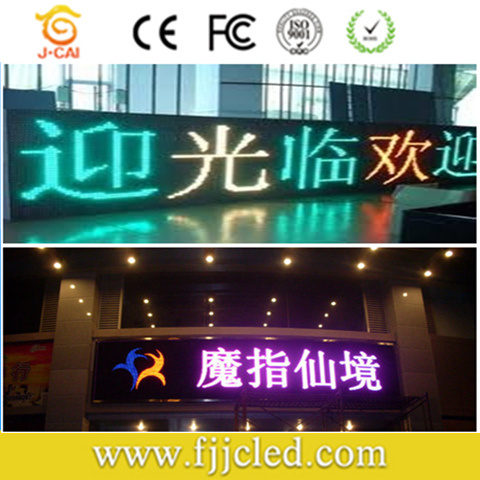

Advertisment designed LED moving message display
1. Pixels: 4.75mm, 7.62mm, 10mm, 16mm, 20mm ect.
2. Display Color: Monochrome tri-color
3. Shops, schools, offices
Usage:
Service propaganda in finances, post offices, telecom, commerce, Advertising, Retail Businesses, Event Listings, Waiting Areas, Hospitals, Safety Awareness, Fund Raising, Point of Purchase, Entertainment Areas, Financial Information, Corporate Communications, Railway station, Subway station and so on.
Specifications:
1. Pixel pitch: 4mm, 4.75mm, 6mm, 7.62mm, 10mm, 12.5mm, 16mm, 20mm, P25mm ect.
2. Display Color: Single, tri-color or full color
3. LED color: Red, Amber, Blue, Red ect.
4. Communication: RS232/RS485 COM port, PC-USB port, or Infra-red remote controland so on.
5. Display English or European characters or multi-language, graphic symbol and simple
Animations.
Optional communication ways:
1. RS232/RS485
2. Remote control
3. USB
4. TCP/IP
5. GPRS
6. GSM
Functions:
1. Discription: Supports world languages, stores various kinds of characters.
2. A lot of lively animation icons are built-in. 50 and more action effects for options; Four-level different brightness.
3. Time clock format, support timing and countdown, temperature and humidity, power input: 220V/110V.
4. Structure: Well appreance frame, professional pendents, standard connectors and other accessories.
5. Accessories: 1 Display / 1 cable for communication / 1 cable for power input / 1 CD Disk (manual built-in) / EPE packing / Netural carton.
Our service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English.
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). Distributer ship are offered for your unique design and some our current models.
5). Protection of your sales area, ideas of design and all your private information
Model: | ø3.0 | ø3.75 | ø5.0 | P10 |
Pixel pitch: | 4mm | 4.75mm | 7.62mm | 10mm |
Density: | 62,500dots/m2 | 44,321dots/m2 | 17,222dots/m2 | 10,000dots/m2 |
Wavelength(R): | 620-625nm | 620-625nm | 620-625nm | 620-625nm |
Wavelength(G): | 520-525nm | 520-525nm | 520-525nm | 520-525nm |
Wavelength(B): | 460-465nm | 460-465nm | 460-465nm | 460-465nm |
View Angle: | 140°(H)/120°(V) | 140°(H)/120°(V) | 140°(H)/120°(V) | 140°(H)/120°(V) |
l ed Package: | dot matrixes | dot matrixes | dot matrixes | DIP |
Color: | 1R/1G/1B | 1R/1G/1B | 1R/1G/1B | 1R/1G/1B |
Brightness: | >600cd/m2 | >650cd/m2 | >650cd/m2 | >1200cd/m2 |
White Balance: | 100 | 100 | 100 | 100 |
Refresh frame frequency: | 60Hz | 60Hz | 60Hz | 60Hz |
Refresh frequency: | 180Hz | 180Hz | 180Hz | 180Hz |
Driver Mode: | 1/16 constant current | 1/16 constant current | 1/16 constant current | 1/4 constant current |
Control Mode: | synchronous/ asynchronous system | synchronous/ asynchronous system | synchronous/ asynchronous system | synchronous/ asynchronous system |
Failed Dot: | <=1/10,000 | <=1/10,000 | <=1/10,000 | <=1/10,000 |
Lifespan: | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |
Module Resolution: | 64*32 | 64*32 | 64*32 | 16*8 |
Module Size: | 256mm*128mm | 304mm*152mm | 488mm*244mm | 320mm*160mm |
Weight: | 30kg/m2 | 30kg/m2 | 30kg/m2 | 35kg/m2 |
Control System: | USB/RS232 | USB/RS232 | USB/RS232 | USB/RS232 |
Installation: | Wall mounted, Ceiling mounting, Floor standing | Wall mounted, Ceiling mounting, Floor standing | Wall mounted, Ceiling mounting, Floor standing | Wall mounted, Ceiling mounting, Floor standing |
Working Voltage: | 220V+10% AC,50Hz or 110V+10% AC, 60Hz | 220V+10% AC,50Hz or 110V+10% AC, 60Hz | 220V+10% AC,50Hz or 110V+10% AC, 60Hz | 220V+10% AC,50Hz or 110V+10% AC, 60Hz |
Max. Power consumption: | 600W/m2 | 400W/m2 | 210W/m2 | 80W/m2 |
Average power consumption: | 350W/m2 | 300W/m2 | 150W/m2 | 35W/m2 |
Application: | Indoor | Indoor | Indoor | Indoor / Outdoor |
Working Temperature: | -10°C--60°C | -10°C--60°C | -10°C--60°C | -10°C--60°C |
Working Humidity: | 10--90% | 10--90% | 10--90% | 10--90% |
