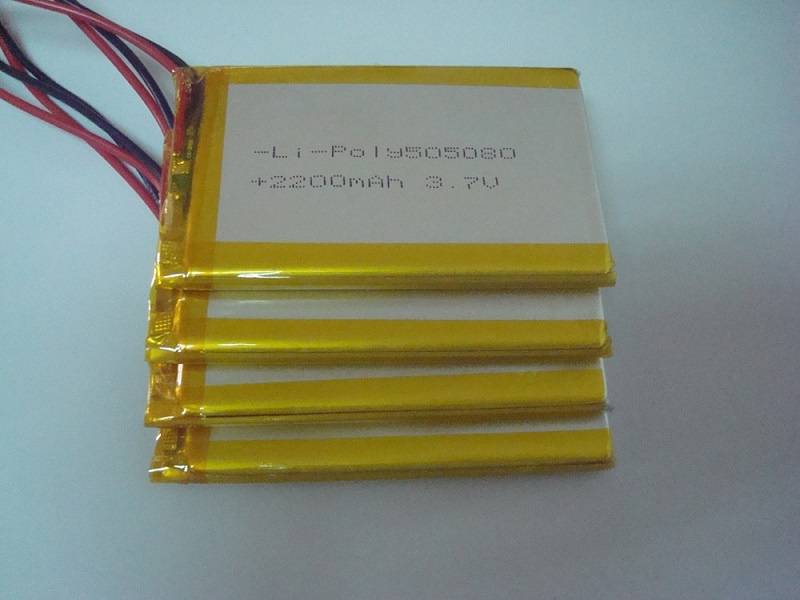

9505080 Cell Lipo 3.7V 2200mAh Polymer Lithium Battery

9505080 Cell Lipo 3.7V 2200mAh Polymer Lithium Battery
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 2000/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: LP0037-2200-LP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type: Lipo Battery
Voltage: 3.7V
Capacity: 2200mAh
Delivery Date: 15days
Warranty: One Year
Type: Lithium-Polymer Battery Pack
Connection Mode: Singel

Product Description

9505080 cell lipo 3.7v 2200mah Polymer lithium battery




Items

Parameter

Battery model9505080
Nominal voltage3V
Minimum capacity2200mAh(0.2C discharge)
Charging voltage4.2V
Discharging cut-off voltage3.0V
Standard charging0.2C /4.2V
Max charging1.0C /4.2V
Standard discharging0.2C/3.0V
Max discharging

continuous discharge

1.0C/3.0V

non-continuous discharge

2.0C/3.0V

Shipment voltage≥3.85V

Battery pack impedance

≤100
Operating temperature

Charging:    0°C ~ 45°C

Discharging: -20°C ~60°C

Storage (At 50% SOC and specified temp,

recoverable capacity in % vs time )

-10ºC~25ºC

(12 months ≥85% )

-10ºC ~45ºC

(6 months  ≥85% )

-10ºC~55ºC

(1 month   ≥90% )

20±5ºC is the recommended storage temperature

Visual Inspection

There should not be any remarkable scratches, cracks,

bolts, cauterization, deformations, swelling, leakage

and so on the surface of the cell.

Reference standard

GB/T 18287-2013,IEC/EN61960, UL1642



Key Features

  1. Intelligent Battery Pack Design
  2. Environmental Friendly Chemistry
  3. High Energy Density
  4. High Power Density
  5. Fast Charge Capability
  6. Excellent Cycle Life

Main Applications

    A.Telecommunications: Cellular phone, interphone, blue tooth earphone, ect.

    B.Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television, electronic cigarettes,    electricity sound box, ect.

    C.Portable Devices: GPS,PDA, E-book ,PMP, PSP, laptop, walkie-talkies , portable medical device, etc.

    D.Illuminate Devices: Miner lamp, search light, ect.

    E.Others: Electric Toys, RC models, model aircraft, backup power, mobile power supply, hand electric drill, ect.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
