| Prod Model: |
GH800480-80M01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Size: |
8.0 Inch(Diagonal) |
| Driver Element: |
a-Si TFT Active Matrix |
| Resolution: |
800 X 3(RGB) X 480 |
| MCU Interface: |
8-Bit/16-Bit 8080 4-Wire Spi |
| Controller IC: |
Ra8875 |
| Active Area: |
176.64 X 99.36mm |
| Module Size: |
207.8X120.9X 9.1mm Max. |
| Color Arrangement: |
RGB-Stripe |
| Screen Size: |
≤17" |
| Application: |
Taxi |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
3D |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description
8" TFT8" TFT LCD Display with Sunreadable hight Brightness
1LCD size 8.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800 X 3(RGB) X 480
4 Display mode Normally White, Transmissive
5 Dot pitch 180.1 x 103.4mm
6 Active area 176.64 x 99.36mm

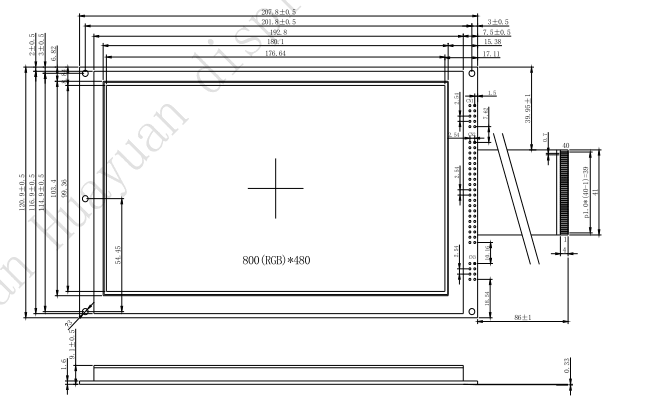

7 Module size 207.8x120.9x 9.1mm Max.
8 Surface treatment Anti-Glare
2 Gerneral Specification8" touch panel tft lcddisplay with sunreadable 1000 brightness
Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan

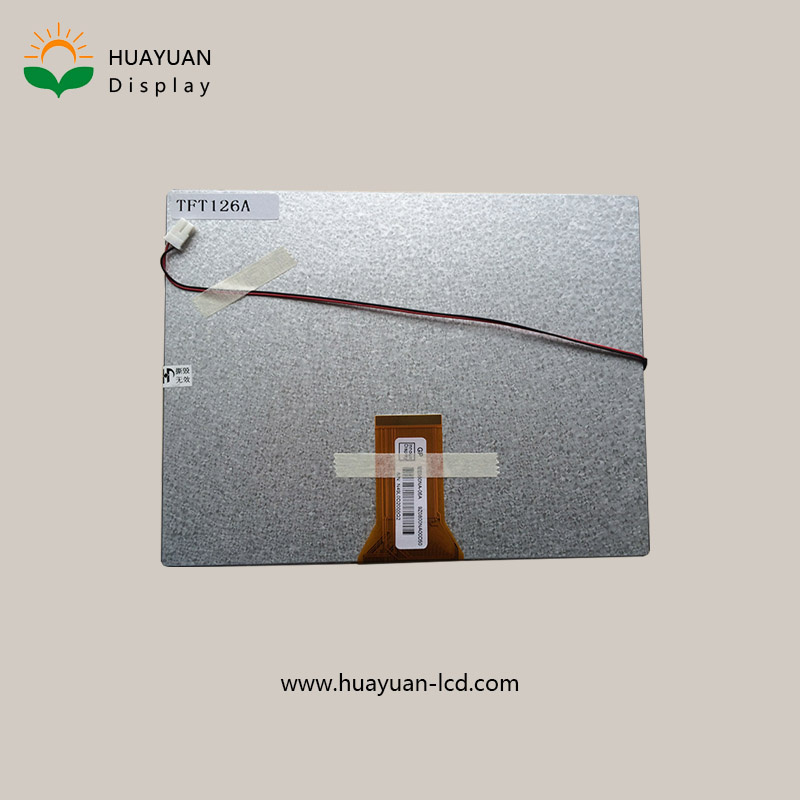

Model Number: TFT126A
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
