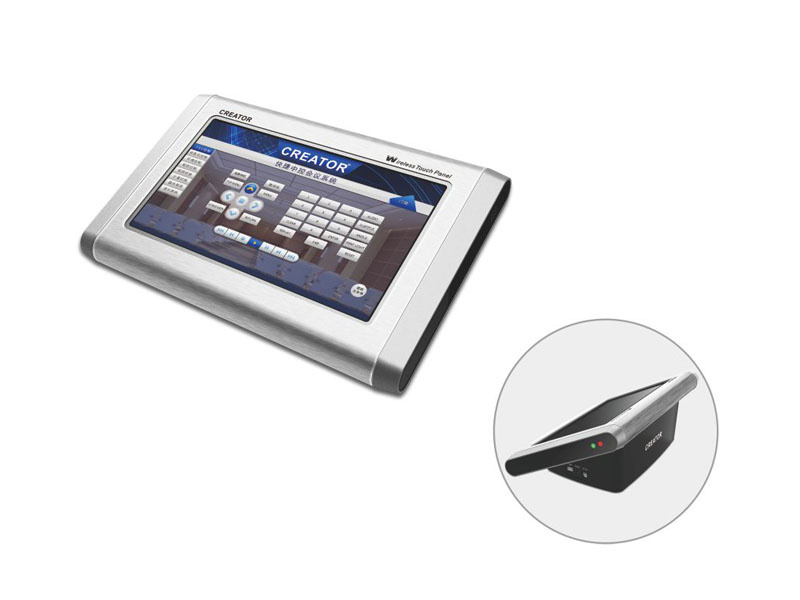

8 Inch Touch Screen

8 Inch Touch Screen
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T
Prod Model: CR-Wireless G7C/G7pip
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ROM: 1GB
Screen Type: Capacitive

Product Description

More products available:
CR-Wireless G8C/G 8pip 10.1 inch handheld wireless programmable touch screen

Features
1) Support barrier-free zone wireless transmission distance up to 50m.
2) Support TFT true color LCD, support 16: 9 high resolution color (18 bit color depth) widescreen for high clear display.
3) Operation interface can be customized by the user, PNG, JPG and other commonly used image format, graphical interface support text, 3D button, polymorphism, irregular button effects, vivid and beautiful user interface.
4) Simply touch screen can realize free control.
5) Support for handhold mobile use.
type
parameters
CR-Wireless G7C   CR-Wireless G7pip CR-Wireless G8C   CR-Wireless G8pip
Display TFT LCD full color TFT LCD full color TFT LCD full color TFT LCD full color
Touch screen resolution 800X480 800X480 1024X600 1024X600
Control mode Wireless Wireless Wireless Wireless
Touch screen size 8inch 8inch 10.1inch 10.1inch
Scope Can access CR-PGM II, CR-PGM III control system  Can access CR-PGM II, CR-PGM III control system Can access CR-PGM II, CR-PGM III control system Can access CR-PGM II, CR-PGM III control system
PIP switch no yes no yes
Communication Interface USB interface USB interface USB interface USB interface
Memory 1G 1G 1G 1G
Wireless transmitter frequency 433MHz 433MHz/5.8GHz 433MHz 433MHz/5.8GHz
Remote control distance
100m (barrier-free)
100m/<100m(barrier-free) 100m 100m/<100m(barrier-free)
External power supply DC 12V/3.3A DC 12V/3.3A DC 12V/3.3A DC 12V/3.3A
Battery
Battery capacity 7.4V/4400mAh 7.4V/4400mAh 7.4V/4400mAh 7.4V/4400mAh
Charge saturation time 5h 5h 5h 5h
Charge the battery temperature 0°C ~50°C 0°C ~50°C 0°C ~50°C 0°C ~50°C
Battery Specifications Lithium-ion rechargeable battery 7.4V

Lithium-ion rechargeable battery 7.4V

Lithium-ion rechargeable battery 7.4V

Lithium-ion rechargeable battery 7.4V

 Other specifications
Dimensions (mm) 236LX154.2WX78H 236LX154.2WX78H 291LX175WX78H 291LX175WX78H
Weight  About 1KG About 1KG About 1.2KG About 1.2KG
