Hunan Huayuan Display Technology Co., Ltd. >> 8" Inch LCD Display with CTP or Rtp

8" Inch LCD Display with CTP or Rtp

8
Price: US $ 19.98-29.8/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: GH800480-80M01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Size: 8.0 Inch(Diagonal)
Driver Element: a-Si TFT Active Matrix
Resolution: 800 X 3(RGB) X 480
MCU Interface: 8-Bit/16-Bit 8080 4-Wire Spi
Controller IC: Ra8875
Active Area: 176.64 X 99.36mm
Module Size: 207.8X120.9X 9.1mm Max.
Color Arrangement: RGB-Stripe
Screen Size: ≤17"
Application: Taxi
Aspect Ratio: 16:10
Feature: Touch Display
Type: TFT
Widescreen: Not Widescreen
Response Time: 6ms
3D: 3D
Optimum Resolution: 800X480
Interface Type: RGB

Product Description

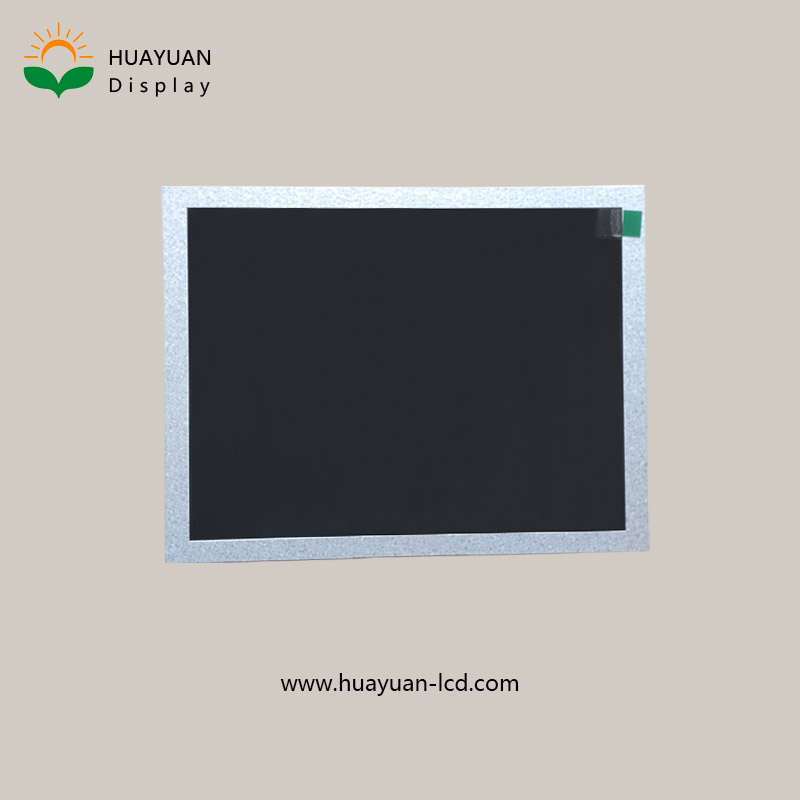

8" inch LCD Display with CTP or RTP

1LCD size  8.0 inch(Diagonal)
2  Driver element    a-Si TFT active matrix
3 Resolution   800 X 3(RGB) X 480
4 Display mode   Normally White, Transmissive
5 Dot pitch   180.1 x 103.4mm
6 Active area   176.64 x 99.36mm
7 Module size   207.8x120.9x 9.1mm Max.
8  Surface treatment  Anti-Glare

2 Gerneral Specification
8" tft lcd display 800x480 dots with CTP or RTP module

Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan
Model Number: TFT126A

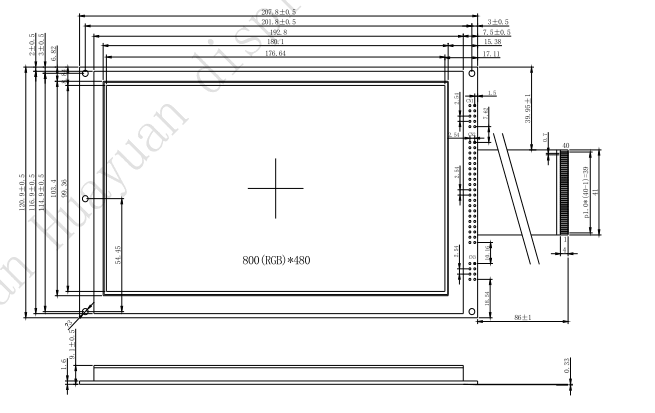

3.Drawing
