| Prod Model: |
ZS-7006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 70": |
Aluminum |
| Black: |
6pts |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
Product Description
Features
High-end Multi-touch experience(truly support 2 4 6 10 12 16 32 40 simultaneous
touch points)
Strong ambient light immunity up to 150,000lux
Fast response
Support remote control and remote diagnosis
Easy integration
HID*plug&play driver free capability
...............................................................................................................................................
Application
Digital Signage \ Kiosk \ Exhibitions \ TV Channels \ Education Whiteboard \ Command Center and Boardroom \ Commercial Transportation
...............................................................................................................................................
Electrical
| Power Supply | Single USB Connection |
| Low Power Consumption | Operating ≤2W, Stand By ≤ 250mW |
| Per EN61000-4-21995; Level 4. |
| ESD | Contact Discharge 8kV,Air Discharge 15kV |
| 15kV on USB Connector pins |
...............................................................................................................................................
Environment
| Temperature | Operating Temperature: -20°C~70°C |
| Storage Temperature: -40°C~85°C |
| Humidity | Operating Humidity: 10%~90%RH(Non-condensing) |
| Storage Humidity: 10%~90%RH |
| Certification | FC CE ROHS |
...............................................................................................................................................

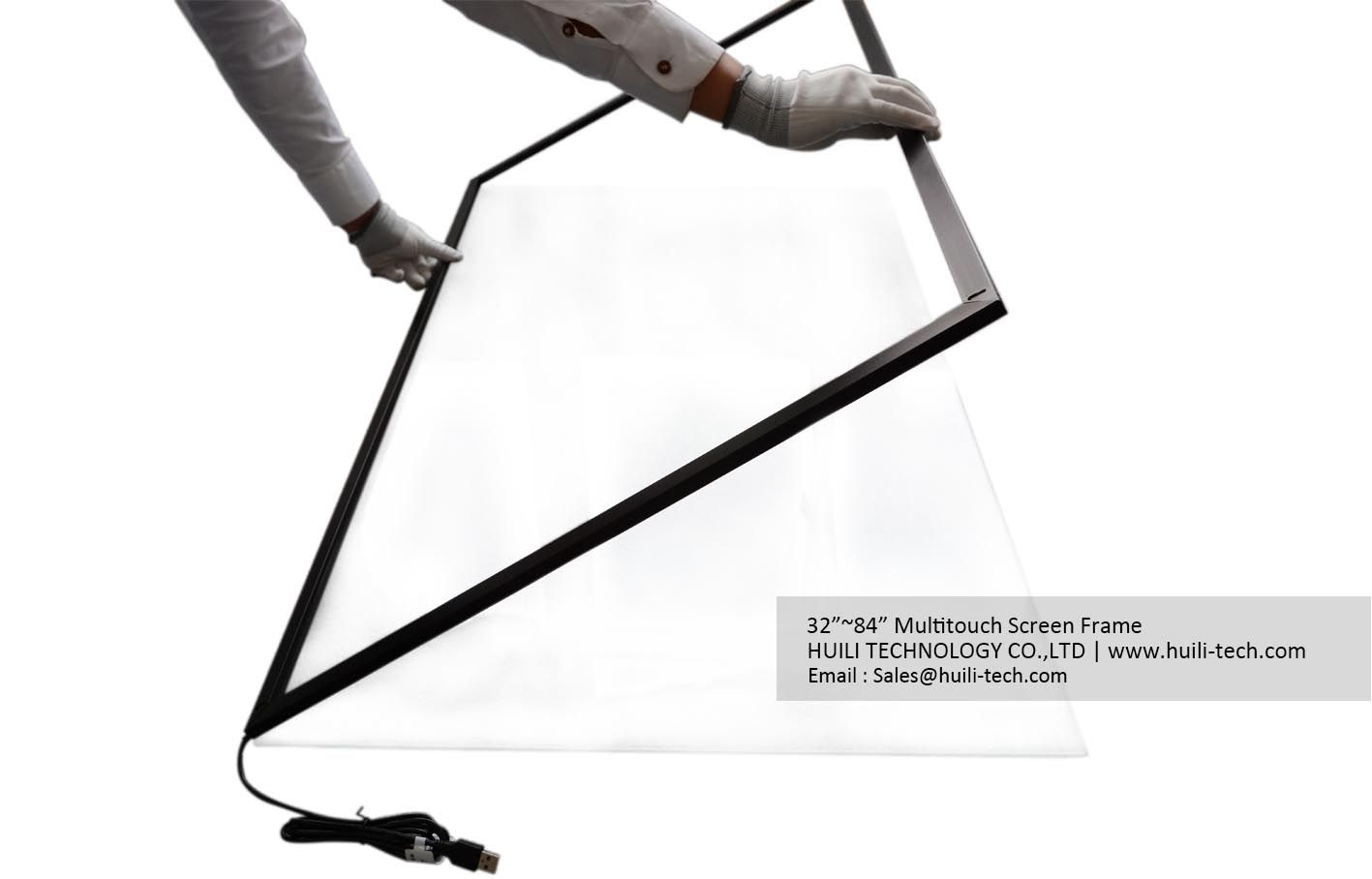

Touch Panel
| Standard Size | 32''- 84'' |
| Dimension | Aluminum : 19mm width, 8.7mm thickness (with frame, without glass)
Plastic : up 17.3mm width, down 19mm with, 8.7mm thickness (with frame, without glass) |
| Number of Touch Points | 2, 4, 6, 10, 12, 16, 32, 40 |
| Minimum Touch Object | 5mm |
| Touch Activation Force | No minimum touch pressure required |
| Touch Durability | 60,000,000 touch/cm² |
| Resolution | 32768*32768 |
| Driver Free | HID* compatible, up to 40 touch points |
| Linearity Deviation | ±1mm |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Frames per Second | Up to 450 fps |
| Typical Response Time | 3-10ms |
| Light Transmission | 100% without glass |
| Operating Systems | Windows®7, Windows®8, Vista, XP, Mac® OS, Linux, Android |
| Protocols | HID, TUIO, Flash |
| Re-development | Provide free SDK, support C/C++, C#, Java etc. |
| Warranty** | 2 years limited warranty on parts and labor |
Shippment:
1. All ordered units will be shipped out within 48 hours via FedEx or DHL after order confirmation and payment.
2.We could guarantee the lead time within 48 hours for regular size, while we couldn't promise the delivery time on international shipment due to customs clearing time in different countries.
3.Packing:tube shape
HUILI TECHNOLOGY Co., Ltd(HUILI TECH for short)is a creator and supplier of IR Multitouch Overlay and Kiosk. We concentrated development and promotion on interaction application technology. We have got CE, FCC, IP65 and RoHS certificates.
HUILI TECH is a comprehensive high-tech enterprise which is integrated with manufacturing, sale and service. We provide 15"~98" IR Multitouch Overlay, super size multi-touch splicing wall and kiosk.
HUILI TECH gives media companies, advertisers, event and exhibition organizers the ability to display digital contents in various public locations, including museums, science centers, amusement parks, tradeshows, retail locations, bars & nightclubs, real estate presentation centers, corporate showrooms, boardrooms and airports.
Welcome new and old customers from all walks of life to contact us for future busniess relationships and mutual success!
