| Prod Model: |
HL-CTS-55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass: |
Yes |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Public Information Inquiry System |
| Screen Type: |
Capacitive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description

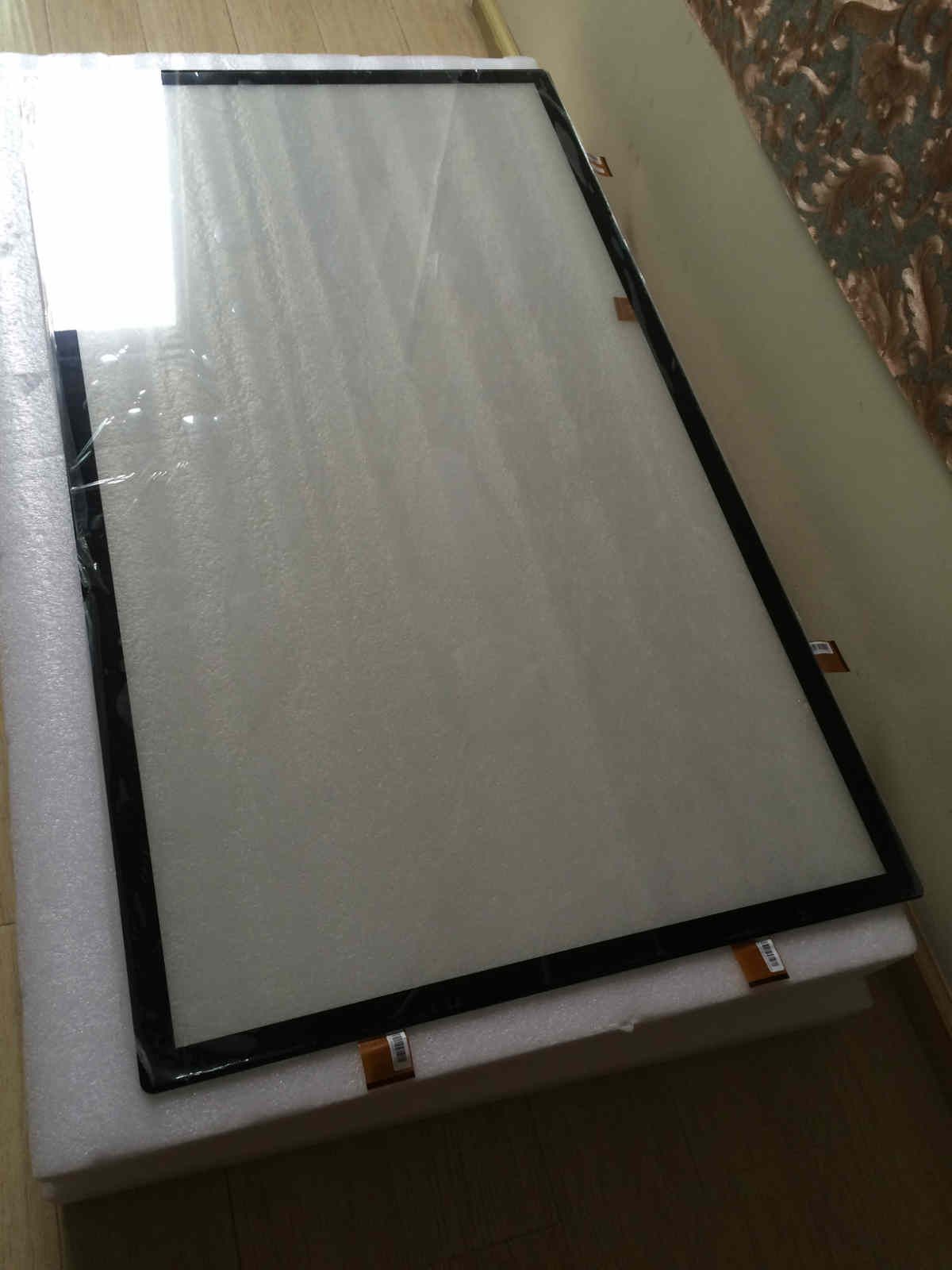

55"Large Format Projected Capacitive Touch Screen
CTS420010F Product Specification Sheet
| General Specifications |
| Product Name | 55inch Capacitive Touch Screen |
| Product Part Number | CTS550010F |
| Module Substrate | Optical Grade PET Film / Film on Glass |
| Multi-Point Support | YES |
| Basic Features |
| Dimensions | |
| Outline Dimensions(mm) | 1267.00(H)*738.00(V) ±1.0 |
| Viewing Area(mm) | 1207.00(H)*678.00(V) ±1.0 |
| Module Thickness(mm) | 2.475 - 2.550 |
| Module Construction | |
| Glass Thickness(mm) | 2.80 ±0.25 |
| Glass Corner Radius(mm) | 10.0 x4 |
| Glass Edge Bevel(mm) | 0.30 ±0.05 |
| Front Layer Thickness-OCA(mm) | 0.125 - 0.175 |
| Second Layer Thickness-Film(mm) | 0.125 |
| Third Layer Thickness-OCA(mm) | 0.100 - 0.125 |
| Fourth Layer Thickness-Film(mm) | 0.125 |
| Optical Characteristics |
| Total Transmittance | 75%±3% |
| Haze | <5% |
| Display Recommendations |
| AUO | P550HVN02.0 |
| LG | LD550DUN-TGB1 |
| Control Board Electrical Characteristics |
| Interface | Standard Full Speed USB;USB2.0 and above compliant |
| Power Supply | +5Vdc <500mA(via USB connection) |
| Device Driver | Windows:Win8 Retail Version,Win7,XP* |
| | IOS*:Mac OS(Mavericks) |
| | Android:5.0,4.0 - 4.4 |
| | *Limited to single-points touch |
| Dimensions(mm) | 280*60 |
| Operating Temperature | Industrial Temperature Grade (-40ºC to +85ºC) |
| Regulatory and Environmental |
| Electrostatic Discharge Immunity(ESD) | Air Discharge:±8kv ; Direct Contact Discharge:±4kv |
| Electromagnetic Interference Immunity(EMI) | FCC CFR Part 15 Subpart B&C
EN55022(CISPR 22)classB |
