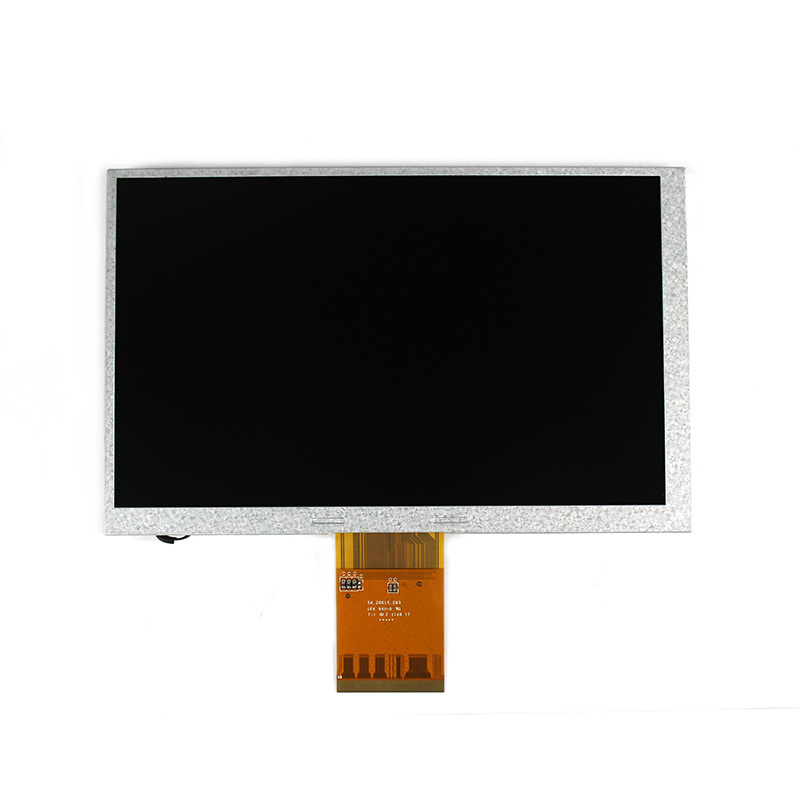

7'' TFT LCD Display for Industrial Instruments
| Price: |
US $ 35-50/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
J070WVNN0101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
800X480 |
| Active Area(Mm): |
152.4X91.44 |
| Interface: |
Digital(RGB 24bits) |
| Type: |
TFT |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
800X480 |
| Screen Size: |
7.0 |
| Interface Type: |
Can Be Customized |
Product Description
Product Name
7 inch TFT LCD display for industrial instruments
Product discription
Product Advantages
1. Use 5.7'' TFT standar interface, can take place other 5.7'' TFT compatibly.
2. Provide colorful display solution for industrial instruments.
Product Packing
Product Parameter
ItemSpecification
Screen Size7''
Resolution800x480
Luminance(cd/m)500
Contrast Ratio500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR50/70/70/70 deg
Response Time35ms
Module Size(mm)165.0x104.0x5.5
Active area(mm)152.4x91.44
Dot Pitch(mm)0.1905(W) x0.1905(H)
InterfaceDigital(RGB 24bits)
Power Consumption0.278W
Operation Temperature -20~70 °C
Storage Temperature -30~80 °C
Item
Specification
Screen Size
7''
Resolution
800x480
Luminance(cd/m)
500
Contrast Ratio
500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR
50/70/70/70 deg
Response Time
35ms
Module Size(mm)
165.0x104.0x5.5
Active area(mm)
152.4x91.44
Dot Pitch(mm)
0.1905(W) x0.1905(H)
Interface
Digital(RGB 24bits)
Power Consumption
0.278W
Operation Temperature
-20~70 °C
Storage Temperature
-30~80 °C
Voltage and current
Item
Conditions
Min
Typ
Max
Unit
Power Voltage
TFT panel
3
3.3
3.6
Backligt
8.85
9.75
10.35
V
Operation Current
TFT panel
TBD
mA
Backligt
170
180
220
mA
lid
Reliablitity test
Item
Conditions
Min
Typ
Max
Unit
Working Temperature
-30
25
85
°C
Storage Temperature
-30
25
85
°C
Working Humidity
5%
-
95%
%
