| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
800X480 |
| Active Area(Mm): |
152.4X91.44 |
| Interface: |
Digital(RGB 24bits) |
| Type: |
TFT |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
800X480 |
| Screen Size: |
7.0 |
| Interface Type: |
Can Be Customized |
Product Description
Product Name

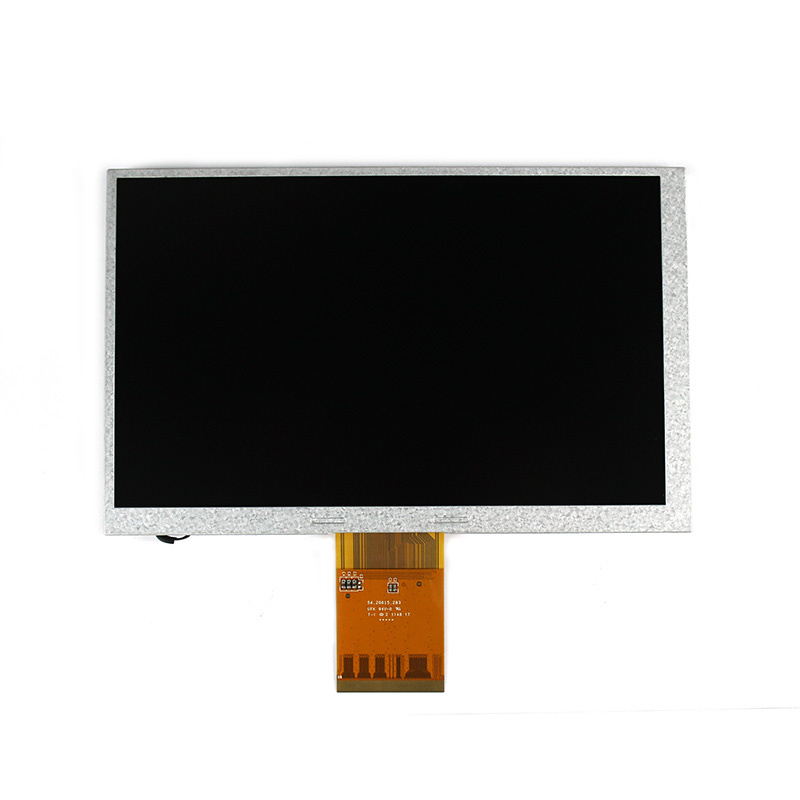

industrial instruments 7 inch TFT LCD display
Product discription
Product Advantages
1. Use 5.7'' TFT standar interface, can take place other 5.7'' TFT compatibly.
2. Provide colorful display solution for industrial instruments.
Product Parameter
ItemSpecification
Screen Size7''
Resolution800x480
Luminance(cd/m)500
Contrast Ratio500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR50/70/70/70 deg
Response Time35ms
Module Size(mm)165.0x104.0x5.5
Active area(mm)152.4x91.44
Dot Pitch(mm)0.1905(W) x0.1905(H)
InterfaceDigital(RGB 24bits)
Power Consumption0.278W
Operation Temperature -20~70 °C
Storage Temperature -30~80 °C
Item
Specification
Screen Size
7''
Resolution
800x480
Luminance(cd/m)
500
Contrast Ratio
500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR
50/70/70/70 deg
Response Time
35ms
Module Size(mm)
165.0x104.0x5.5
Active area(mm)
152.4x91.44
Dot Pitch(mm)
0.1905(W) x0.1905(H)
Interface
Digital(RGB 24bits)
Power Consumption
0.278W
Operation Temperature
-20~70 °C
Storage Temperature
-30~80 °C
Voltage and current
Item
Conditions
Min
Typ
Max
Unit
Power Voltage
TFT panel
3
3.3
3.6
Backligt
8.85
9.75
10.35
V
Operation Current
TFT panel
TBD
mA
Backligt
170
180
220
mA
lid
Reliablitity test
Item
Conditions
Min
Typ
Max
Unit
Working Temperature
-30
25
85
°C
Storage Temperature
-30
25
85
°C
Working Humidity
5%
-
95%
%
Shenzhen Jinghua Displays Co., Ltd was established in 1987 as a professional LCD, LCM, Touch Panel and Cover Lens manufacturer. We also provide SMT / OEM / ODM services. Our strategic positioning is to be a professional supplier for human-machine interface. We have already become China National High-Tech Enterprise and the Vice President of China LCD Industry Association.
Innovation, High Quality, Trust, Environment Protection, Service, Safety, those are our Value orientation. Our customers are those enterprises who are looking for high quality, unique products, innovated technology and valued service. As we have stable finance status and excellent management group, a rich variety of new products, good service, and as we keep promises, follow environmental protection law, take social responsibility, we have a very good reputation. In this way, we have won praise from our customers all over the world.
We JHD have a stable design and development team for 30 years to provide our customers a completed ODM and OEM industrial product design and manufacture service. We can also provide a total solution service, from product concept, component structure design, mold making to embedded software custom developing and finished sample delivery. We keep developing new materials, searching new technology, pushing new products and applying for technology patent. Now we can provide a completed custom Human-machine interface solution, in automotive, Medical, industrial area, etc.
At our high-tech plants. Our advanced production, processing and on-line inspection systems are imported from Japan and the U. S. A. Monthly production capacity is in excess of four million LCD panels and modules.
We were certificated ISO9001 compliant by SGS in April 1997. We guarantee on-time delivery and excellent customer service to meet the demands of our clients. We will continue to place our main emphasis on technological innovation, product improvement and quality assurance.
