| Prod Model: |
CS076A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LCD Matrix |
| Probe Number: |
2 |
| Alarming Distance: |
2.5-0.35m |
| Probe Diameter: |
18.8mm |
| Function: |
Night Vision |
| Definition: |
420tvl |
| Brightness: |
400CD/M2 |
| Resolution: |
800 (H) ×3(RGB)×480 (V) |
| Screen Ratio: |
16:9 |
| Net Weight: |
390g |
Product Description
Specifications
Camera 7 Inch LCD Rear ViewSecurity System Monitor Specifications: . Screen size: 7 inch Digital panel (16: 9)

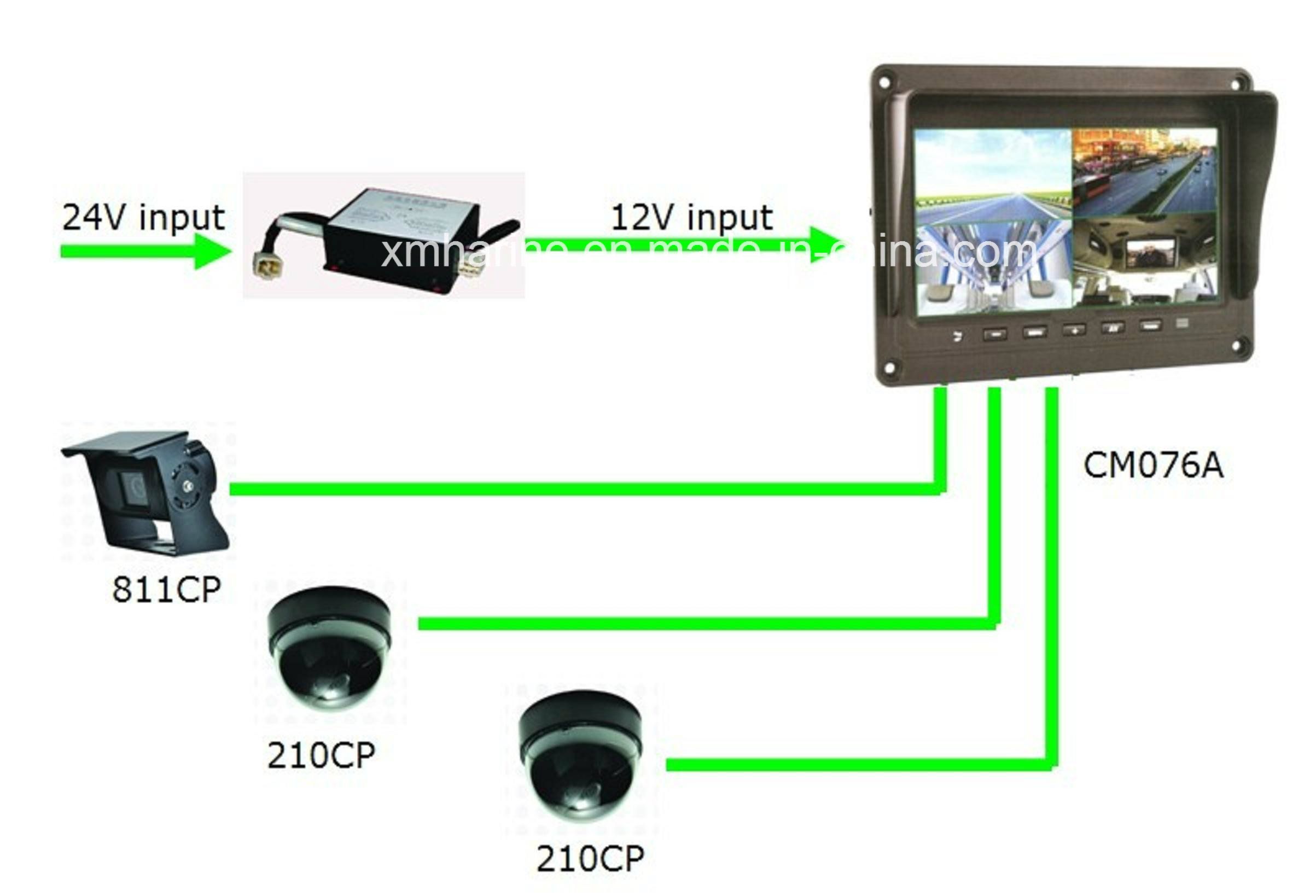

1.Two way video input,can be switched by key-press(can extend to four way video)
2. with sunshine cover,more clearly to see
Technical information:
| Screen size | 7 inch |
| Screen | TFT LCD screen |
| Screen Ratio | 16:9 |
| Resolution | 800 (H) ×3(RGB)×480 (V) |
| Contrast | 300:1 |
| Brightness | 400cd/m 2 |
| View Angle | U:50/D:70 L/R:70 |
| Color System | PAL/NTSC |
| Power Supply | DC 12V |
| Net Weight | 390g |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~85 |
| Power Consumption | 5 W |
Feature:
1.3-CH video input,can be switched by key-press
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of supply voltage, DC12V±20%
5.Vehicle disturb shielding line and RS765-4 plug for signal transmit
6.Radar distance detect and alarm module for options
