| Prod Model: |
89221301012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Size(Mm): |
87.4(L)*51.3(W)*2.01(T) |
| Active Area(Mm): |
79.084(W) X 19.756(H) |
| Viewing Angle Range: |
160° |
| Color: |
White |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Type: |
Graphic |
| Usage: |
Monitor LCM |
| Viewing Angle: |
TN＋FILM |
| Customized: |
Customized |
| Touch Screen Type: |
Customized |
| Display Technology: |
OLED |
Product Description
Product Name:

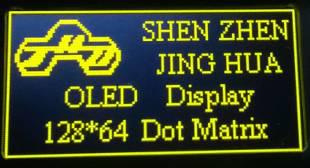

3.2 inch OLED display for industrial application
Product No. :
89221301012
Product Discription:
Product Advantages:
1. Self-lighting display, without backlight, being positive or negative, visible in dark condition
2. higher contrast than traditional display device
3. Be visible with any orientation
4. Higher response speed than traditional display, the response speed won't change with low temperature, whose response time is 1/1000 of LCD
5. Wider operating temperature, advantageous for extreme condition, especially for super low temperature
6. No liquid material ,be better anti-shocking and anti-throwing
7. Not only monochrome display but also colorful display as TFT
Product Delivery:
Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Product Parameter:
Size 3.2"
Model 89221301012
outline size(mm) 87.4(L)*51.3(W)*2.01(T)
Active Area(mm) 79.084(W) x 19.756(H)
matri x256x64
viewing angle range 160°
dot size 0.289mm x 0.289mm
color WHITE
response speed 10uS
contrast 2000 : 1
storage temperature -40~+85°C
operating temperature -40~+70°C
module weight 11.03±10%g
interface 8Bit 6800/800parallel port,SPI3/4serial port
Interface PIN and PITCH34pin 0.5mm
luminance 70 CD/m²
consumption 616mW
Life time (luminance decrease to less than 50% of initial)13000 Hrs
Packaging & Shipping:
Packaging: In general, foam or anti-static tray inside, carton outside
Delivery: For mass production, the delivery time is around 4-6 weeks.
Competitive advantages:
1)Over 27 years of production experience
2)Top quality with RoHS, REACH, Lead Free
3)ISO9001 certificated Factory supplied
4)Competitive price and Short lead-time
5)In stock, samples lead-time: 3~7 days.
Specifically, the main products include:
1) TN/STN/FSTN/ASTN LCD panels
2) Segment LCD modules
3) Character and graphic LCD modules
4) 2.5~7.0 inches color TFT-LCM
Presently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
|
Size |
3.2" |
|
Model |
89221301012 |
|
outline size(mm) |
87.4(L)*51.3(W)*2.01(T) |
|
Active Area(mm) |
79.084(W) x 19.756(H) |
|
matrix |
256x64 |
|
viewing angle range |
160° |
|
dot size |
0.289mm x 0.289mm |
|
color |
WHITE |
|
response speed |
10uS |
|
contrast |
2000 : 1 |
|
storage temperature |
-40~+85°C |
|
operating temperature |
-40~+70°C |
|
module weight |
11.03±10%g |
|
interface |
8Bit 6800/800parallel port\SPI3/4serial port |
|
Interface PIN and PITCH |
34pin 0.5mm |
|
luminance |
70 CD/m² |
|
consumption |
616mW |
|
Life time(luminance decrease to less than 50% of initial) |
13000 Hrs |
