| Prod Model: |
DMT80480C070_02W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inch |
| Type: |
Color |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

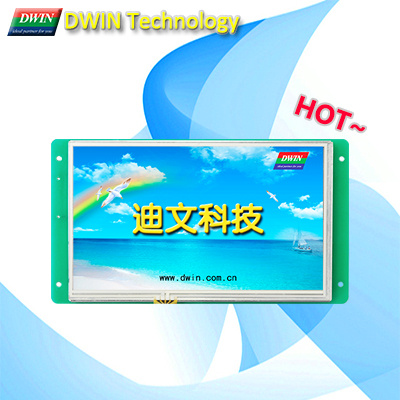

Smart UART-interface, TFT LCD Module with RS232 serial communication; It could be controlled by any normal MCU with serial interface.
Up to 65K colors display, which could make your products more attractive.
Reliable performance with wide temperature/voltage range achieve it's various application whatever in industry or consumer field.
Supporting new DWIN DGUS system, offering clients easy programing to achieve colorful GUI function.
|
Item |
Parameter |
Description |
|
Color |
65K (65536) colors |
16 bit color 5R6G5B |
|
Active Area (A.A.) |
154.1mm (W) ×85.9mm (H) |
800*480 |
|
View Area (V.A.) |
155.3mm (W) ×88.0mm (H) |
800*480 |
|
Resolution |
800 x 480 |
90° rotated display (480x800) |
|
Backlight |
LED |
- |
|
Brightness |
250 nit (DMT80480C070_02WN) |
64 levels adjustment |
|
200 nit (DMT80480C070_02WT) |
64 levels adjustment |
| Voltage & Current
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Power Voltage |
- |
3.3 |
5.0 |
6.0 |
V |
|
Operation Current |
VCC = +5V, Backlight on |
- |
450 |
- |
mA |
|
VCC = +5V, Backlight off |
- |
230 |
- |
mA |
|
Recommended power supply: 5V 1A DC |
| Reliability Test
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Working Temperature |
60%RH at 5V voltage |
-20 |
25 |
60 |
o C |
|
Storage Temperature |
- |
-30 |
25 |
70 |
o C |
|
Working Humidity |
25 o C |
10% |
60% |
90% |
RH |
|
Protective Paint |
- |
- |
None |
- |
- |
|
Aging Test |
- |
- |
None |
- |
H |
| Interface
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Baudrate |
Standard |
1200 |
115200 |
921600 |
bps |
|
User set |
1200 |
- |
1000000 |
bps |
Output Voltage
(TXD, BUSY) |
Output 1, Iout = 1mA |
3.0 |
3.2 |
- |
V |
|
Output 0, Iout = -1mA |
- |
0.1 |
0.2 |
V |
Input Voltage
(RXD, I/O0) |
Input 1, Iin = 1mA |
2.0 |
3.3 |
5.0 |
V |
|
Input 0, Iin = -1mA |
-0.7 |
0.0 |
1.3 |
V |
|
Interface |
8N1, 3.3V TTL/CMOS |
|
Socket |
10Pin_1.0mm FCC |
|
USB |
None |
|
SD Slot |
Yes (SD/SDHC, FAT32 file format) |
| Memory
|
Item |
Parameter |
Min |
Typ |
Max |
Unit |
|
Flash |
Space of Font |
- |
32 |
- |
MB |
|
Picture Storage (256MB) |
- |
- |
236 |
Pcs |
|
Picture Storage (2GB) |
- |
- |
2485 |
Pcs |
|
RAM |
Variable Storage Space |
- |
56 |
- |
KB |
| Peripherals
|
Peripheral Acquired |
|
Peripherals |
DMT80480C070_02WN : RTC
DMT80480C070_02WT : 4-wire resistance touchscreen, RTC |
