| Prod Model: |
DMT80600T080_07WT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.0 Inch |
| Ratio: |
4:3 |
| Communication: |
Serial RS232/Ttl |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

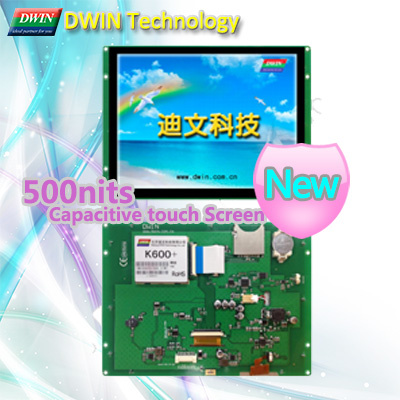

Smart UART-interface, TFT LCD Module with RS232 / TTL serial communication; It could be controlled by any normal MCU with serial interface.
Up to 65K color (16-bit) true color display, which could make your products more attractive.
Reliable performance with wide temperature/voltage range achieve it's various application whatever in industrial & consumer field.
With self designed DGUS_SDK software and pre-installed commands, anyone could design their idea interface.
|
Item |
Parameter |
Description |
|
Color |
65K (65536) colors |
16-bit color 5R6G5B |
|
Active Area (A.A.) |
162.0mm (W) ×121.5mm (H) |
800*600 |
|
View Area (V.A.) |
164.8mm (W) ×124.3mm (H) |
800*600 |
|
Resolution |
800*600 |
90° rotation by using command 0xE0 (600*800) |
|
Backlight |
LED |
- |
|
Brightness |
500 nit (DMT80600T080_07WN) |
64 levels adjustment by using command 0x5F |
|
450 nit (DMT80600T080_07WT) |
64 levels adjustment by using command 0x5F |
l Voltage & Current
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Power Voltage |
|
|
|
|
|
|
|
5.0 |
12.0 |
15 |
V |
|
Operation Current |
VCC = +12V, Backlight on |
- |
700 |
- |
mA |
|
VCC = +12V, Backlight off |
- |
180 |
- |
mA |
|
Recommended power supply: 12V 1A DC |
l Reliability Test
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Working Temperature |
60%RH at 12V voltage |
-30 |
25 |
60 |
o C |
|
Storage Temperature |
- |
-30 |
25 |
85 |
o C |
|
Working Humidity |
25 o C |
10% |
60% |
90% |
RH |
|
Protective Paint |
- |
- |
None |
- |
- |
|
Aging Test |
- |
- |
24 |
- |
H |
l Interface
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Baudrate |
I/O0=1 (High Voltage) |
1200 |
115200 |
691200 |
bps |
|
I/O0=0 (Low Voltage) |
- |
921600 |
- |
bps |
Output Voltage
(TXD, BUSY) |
Output 1, Iout = 1mA |
3.0 |
3.2 |
- |
V |
|
Output 0, Iout = -1mA |
- |
0.1 |
0.2 |
V |
Input Voltage
(RXD, I/O0) |
Input 1, Iin = 1mA |
2.0 |
3.3 |
15.0 |
V |
|
Input 0, Iin = -1mA |
-15.0 |
0.0 |
0.3 |
V |
|
Buffer |
- |
- |
24 |
- |
Frame |
|
Interface |
Mode is determined by Jumper: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232 |
|
Socket |
8Pin_2.00mm with lock catch |
|
USB |
None |
|
SD slot |
Yes (SD/SDHC, FAT32 file format) |
l Memory
|
Item |
Parameter |
Min |
Typ |
Max |
Unit |
|
Flash |
Space of Font |
- |
32 |
- |
MB |
|
Picture Storage (256MB) |
- |
- |
209 |
Pcs |
|
Picture Storage (2GB) |
- |
- |
1896 |
Pcs |
|
User Memory |
|
|
|
|
|
RAM |
Variable Storage Space |
- |
56 |
- |
KB |
l Peripherals
|
Peripherals Acquired |
|
Peripherals |
DMT80480T080_07WN : RTC,Buzzer,128 Segment of Audio playback
DMT80480T080_07WT : Capacitive touch screen, RTC,Buzzer,128 Segment of Audio playback |
