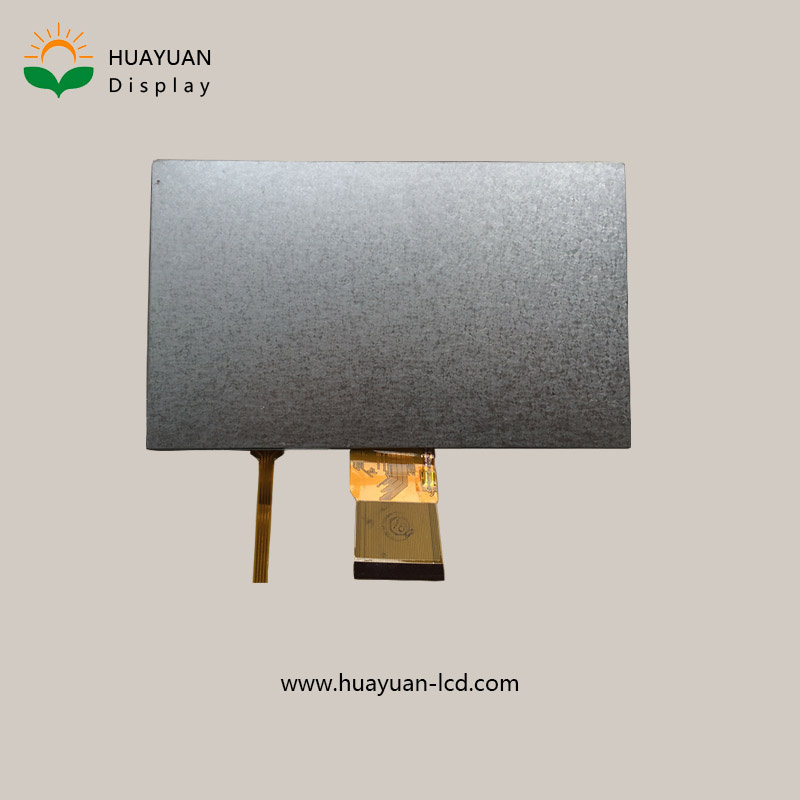

| Prod Model: |
TFT178A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Size: |
7.0 Inch(Diagonal) |
| Display Resolution (Pixel): |
800(H) X 480(V) |
| Driver Element: |
a-Si TFT Active Matrix |
| Display Mode: |
Normally White, Transmissive |
| Active Area (mm): |
154.08(H) X 85.92(V) |
| Screen Size (Inch): |
7 Inches Diagonal |
| Pixel Pitch (mm): |
0.1926(H) X 0.1790(V) |
| Color Configuration: |
R, G, B Vertical Stripe |
| Panel Outline (mm): |
162.5 (W) X 96.62 (H) X1.43 (Pol) (D) |
| Weight (G): |
45 (Typ.) |
| Screen Size: |
≤17" |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:10 |
| Feature: |
50 Pin |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
5ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description
| Specifications | LCD Type: 7.0 inch
Display resolution (pixel): 800(H) x 480(V)
Driver element:A-si TFT active matrix
Display mode: Normally White, Transmissive
Active area (mm):154.08(H) x 85.92(V)
Screen size (inch): 7 inches diagonal
Pixel pitch (mm):0.1926(H) x 0.1790(V)
Color configuration: R, G, B vertical Stripe
Panel outline (mm):162.5 (W) x 96.62 (H) x1.43 (Pol) (D)
Weight (g):45 (Typ.)
Surface treatment:Anti-Glare
Color saturation:50%
Optimum viewing direction:6 o'clock
Glass thickness (mm):0.5
Transmittance: 5.11%
Input signal: 8 bit RGB
Panel Power consumption: 0.226W (Typ.) |
| Delivery | 2~7 days for sample and 20~30 days for mass production |

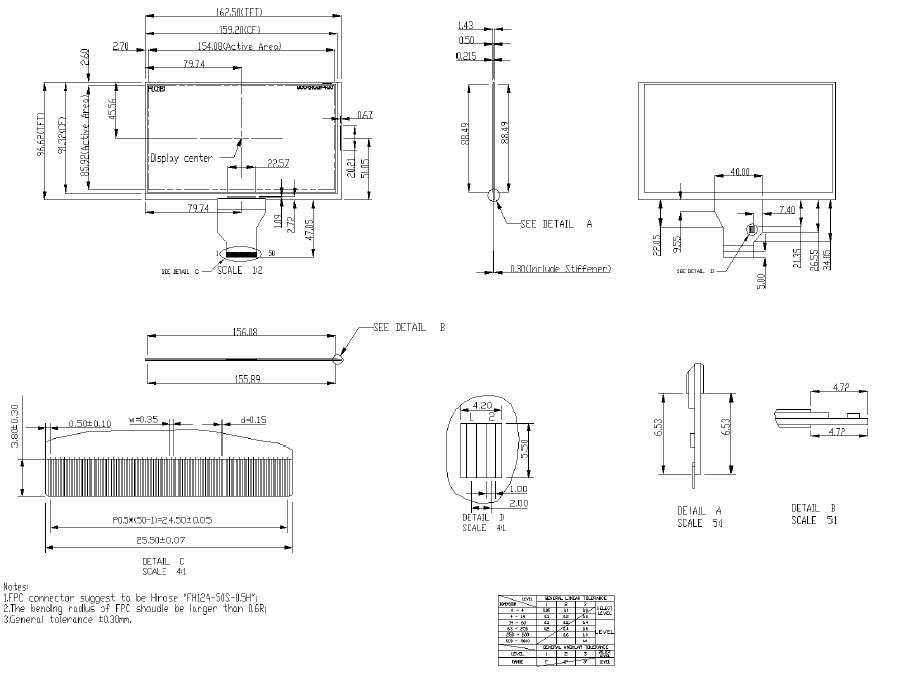

Mechanical drawing:
Workshop View:
Application area
Related products : 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17"
LCD Module application: Game Machine,Car Audio DVD,GPS,cash register,Industial Automation,Office Automation,MedicalEquipment,LCD Monitor,DVDPlayer,POS machine. etc.
Additional Info.:
Trademark: Huayuan display
Package:Carton Box
Standard: ISO9001
Production Capacity:100000 PCS/M
Origin:China
Packaging & Delivery
Packaging Details: each in an anti-statics bag, pack in carton or according to the customer's requirement.
Delivery Detail: 7 days for sample and 20-30 days for mass production
Payment: T/T,paypal,WU etc.
Contact Us: Send inquiry for us to get newest quotation & information.
Tel: 86-731-28668968
Fax: 86-731-28660280
How to place an order? We could produce according to customer's request.
Step1.Send us your original drawing, samples or photos. If you don't have these information, just tell us your idea.
Step2.According to your details, we will give you some advise and competitive price.
Step3.After confirm the technical datas, we will send you exact quotation.
Step4.Arrange the tooling charge from your side.(If it is costomerized product)
Step5.We will send you the final drawing and wait for your confirmation.
Step6.We will make new samples within two weeks for you to test.
Step7.After samples confirmed and we get your deposit, we will run the mass production.
Step8.We will send products to the port once get your balance.
We sincerely hope to establish a long-term business relationship with your company.
If you have any questions or queries, please do not hesitate to contact us
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
