| Prod Model: |
TFT055A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inch |
| Resolution: |
800*480 |
| LED Numbers: |
21 LEDs |
| Color Depth: |
24bit |
| Module Size(W*H*T): |
164.9*100*5.5 |
| Backlight: |
White LED |
| With/Without Tp: |
with and Without Tp |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| Driver IC: |
Hx8264+Hx8664 |
| 7 Inch HD TFT Display LCD Screen: |
7 Inch HD TFT Display LCD Screen |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
3ms |
| 3D: |
Not 3D |
| Interface Type: |
RGB and Lvds |
| Screen Size: |
7 Inch |
| Optimum Resolution: |
800*480 |
Product Description

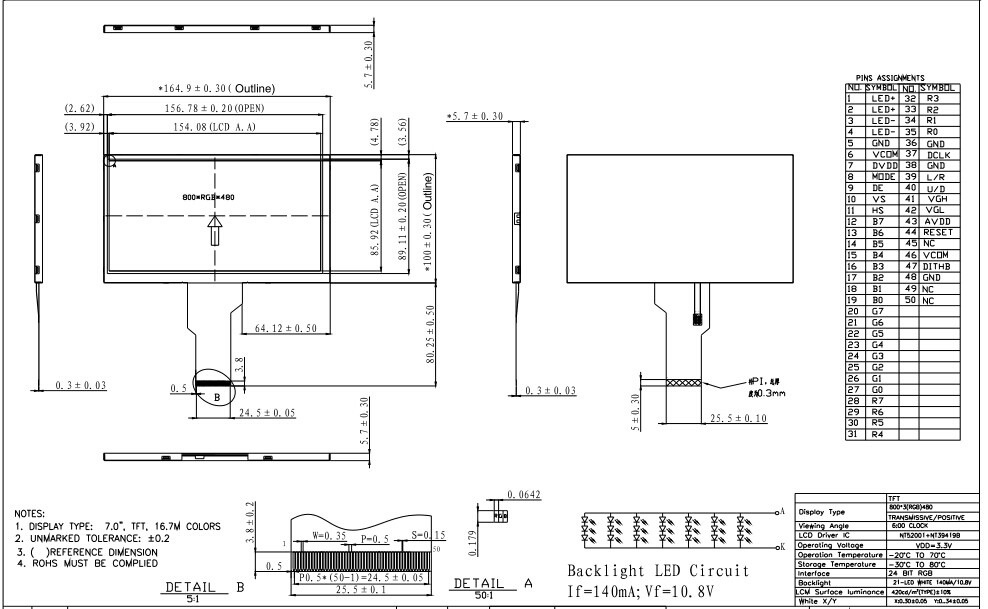

DATA SHEET

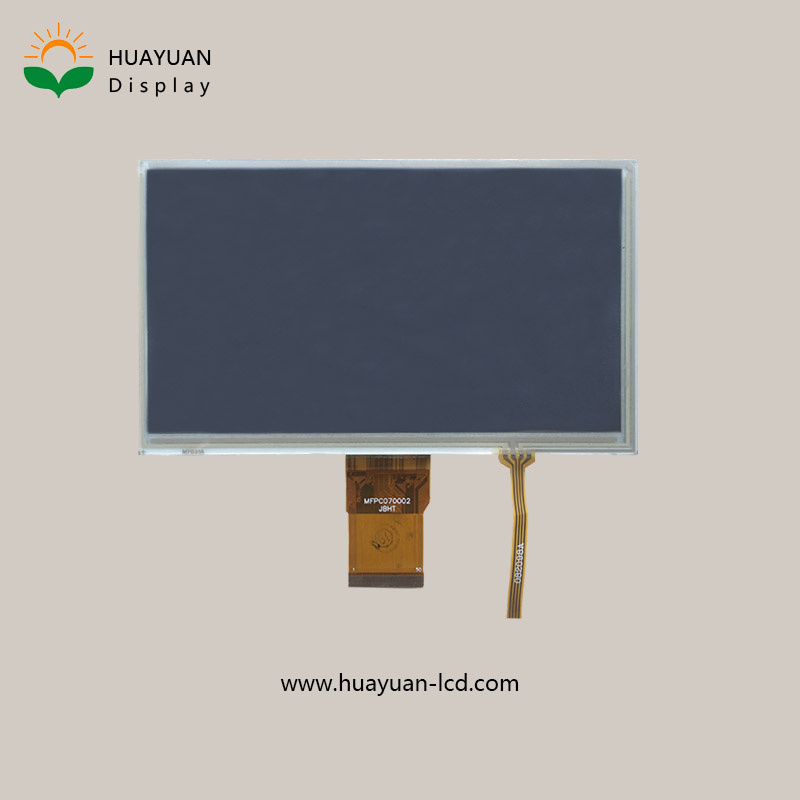

7 inch hd TFT Display LCD Screen

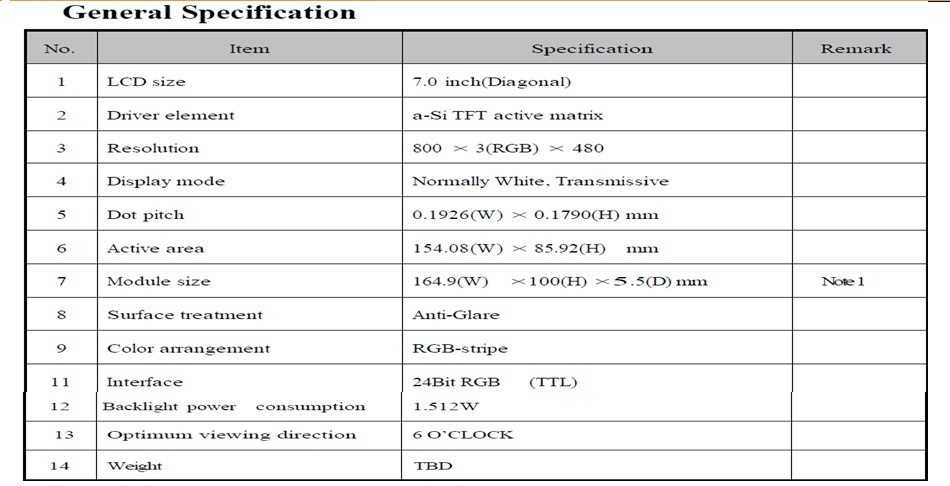

Quick Details
Model NO. : TFT055A
LCD Size : 7.0 inch
Size:Length*Width*Highth : 164.9*100*5.5
Interface : RGB
Resolution : 800*480
(luminance)cd/m² : 350 cd/m²
with or without touch panel (TP) : /
LED light : 21LED
FPC PINs : 50
Diver IC : HX8264+HX8664
Operating Voltage : VDD=3.3
Work Temp : -20 To +70c
Storage Temp : -30 To +80c
Viewing Angle : 6 O' Clock
Related products : 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17"
LCD Module application
Game Machine.Car Audio DVD.GPS.cash register.Industial Automation.Office Automation.MedicalEquipment.LCD Monitor.DVDPlayer.POS machine. Etc.
Additional Info.
Trademark: Huayuan display
Packing:Carton Box
Standard: ROHS ISO9001
Origin:China
Production Capacity:10000PCS/M
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
Payment: T/T,paypal,WU etc
Packaging
| FAQ |
| Q:Are you a factory or trading company? | A: We are manufacturer.
Please refer to our company show |
Q:Where is your factory located?
How can I visit there? | A:Our factory is located in Hunan Province, China.
Welcome to visit our factory.
|
| Q:How can I get some samples? | A:We don't provide free one,
but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
Q:How does your factory do
regarding quality control? | A:Quality is the priority.
We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001 RoHS SGS certification. |
| Packaging & Delivery | Packaging Details: in an anti-statics bag packed in carton
or according to the customer's requirement
Delivery Detail: 5-7 days for sample and 25-30 days for mass production |
| Cooperate Supplier | Tianma, Innolux, Sumsung, LG, Varitronix, CPT, BOE,HSD,Chi mei |
| Company development plan | Our company prepared attend electronics show in Munich, Germany, 2016 |
| Related products: | Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5",
5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd LED backlight panel
All kinds of LCD Module can customized. |
Application:
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance),
Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics |
Contact Us: Send inquiry to us to get newest price and information!
Tel: 86-731-28668968
Fax: 86-731-28660280
|
How to running the orders with customers ? And we can be custom-order per custom-request
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are your best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of our other items. We are glad to help you!
vian wong
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
