| Prod Model: |
GH800480-62M01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6.2 Inch |
| Resolution: |
800(RGB)*480 |
| Interface: |
8bits 16 Bits 8080\6800 , ,3 Wire 4 Wire Spi,I2c |
| Temperature Range: |
-30 Oc ---- +70oc |
| View Area: |
140.7 X 80.4mm |
| Module Size: |
171.2X88.0X7.6mm Max. |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Screen Size: |
6.2inch |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description

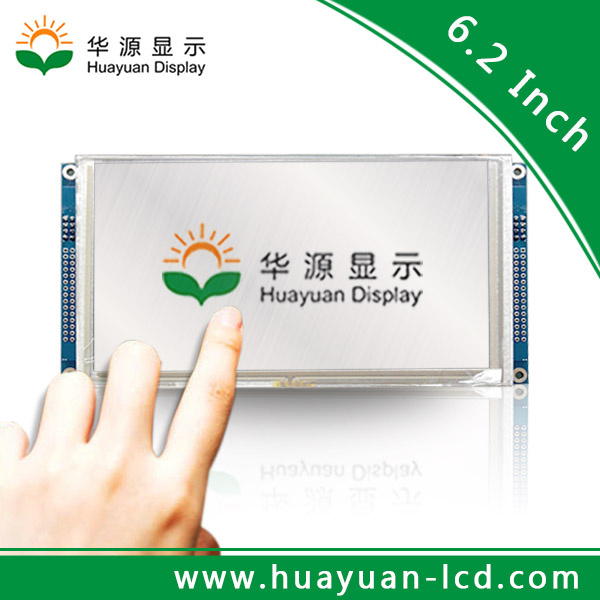

6.2inch lcd Touch Screen with Multi Touch Points
1. Gerneral SpecificationModel Number:GH800480-62M01
Type:TFT
Size: 6.2 inch tft touch display
Resolution: 800x RGB x 480Backlight: 12 LEDs in Series
Viewing direction: 6 O'Clock
Driver: HX8238
Interface: 8bits 16 bits 8080\6800 , ,3 wire 4 wire SPI,I2C
Outline dimension:171.2x88.0x7.6mm Max.
Customized:Available
Brand Name:Huayuan
2. Outline Drawing

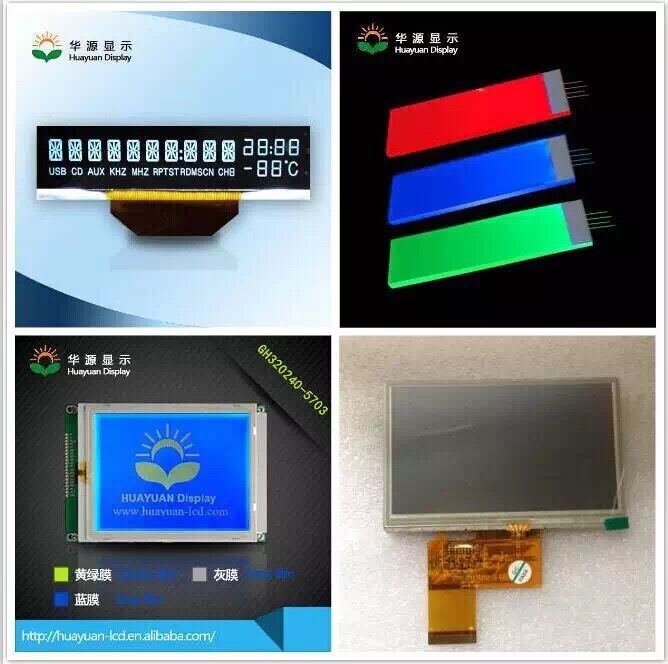

We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
