| Prod Model: |
GH800480-62M01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
800(RGB)*480 |
| Interface: |
8bits 16 Bits 8080\6800 , ,3 Wire 4 Wire Spi,I2c |
| Temperature Range: |
-30 Oc ---- +70oc |
| View Area: |
140.7 X 80.4mm |
| Module Size: |
171.2X88.0X7.6mm Max. |
| Type: |
LCD Monitor |
| Color: |
Color |
| HDMI Format: |
480P |
| Application: |
ATM |
| Feature: |
Touch Display |
| Certification: |
ISO9001: 2000 |
| Interface Type: |
HDMI |
| Horizontal Resolution: |
650tvl |
| Screen: |
General Screen |
| Scanning: |
Line by Line Scan |
| Material: |
LCD |
| Sensor: |
CCD |
| Size: |
6.2inch |
Product Description

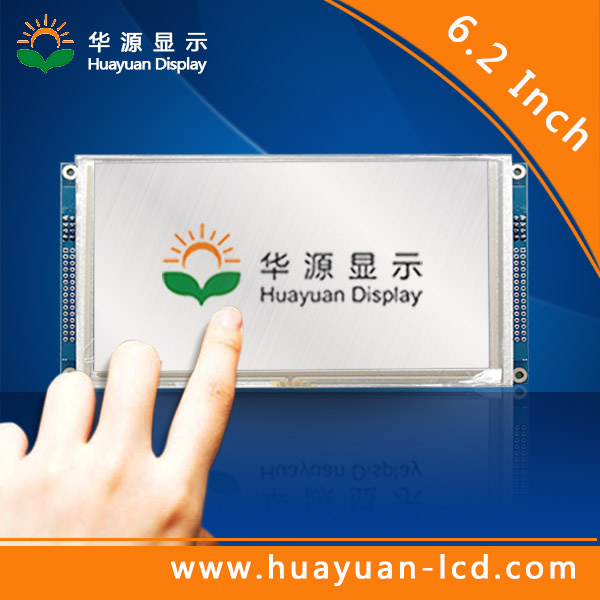

6.2inch lcd Panel DVD Player Display
1. Gerneral SpecificationPlace of Origin:Guangdong China (MainlandBrand Name:Huayuan
Model Number:GH800480-62M01
Type:TFT
Size: 6.2 inch tft touch display
Resolution: 800x RGB x 480 Backlight: 12 LEDs in Series
Viewing direction: 6 O'Clock
Driver: HX8238
Interface: 8bits 16 bits 8080\6800 , ,3 wire 4 wire SPI,I2C

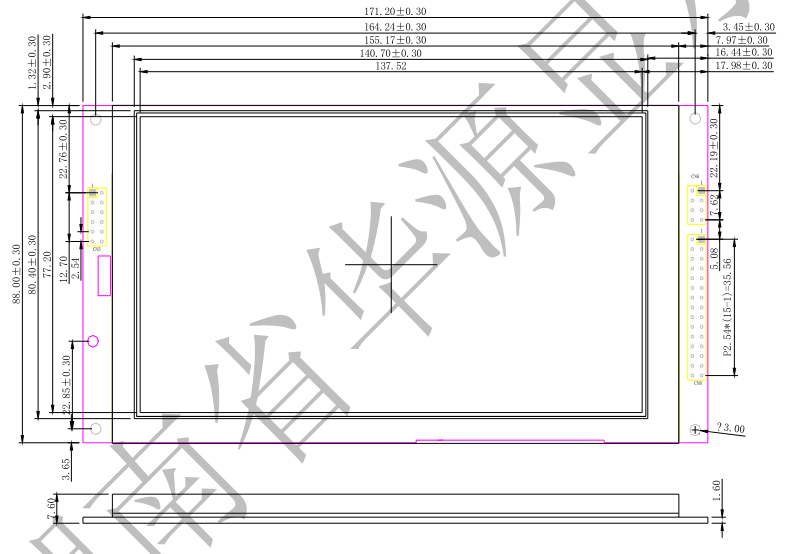

Outline dimension:171.2x88.0x7.6mm Max.
Customized:Available
Absolute Maximum Ratings and Power Protection Circu
1. Do not exceed the absolute maximum rating values, such as the supply voltage
variation, input voltage variation, variation in parts' parameters, environmental
temperature, etc., otherwise LCD module may be damaged.
2. Please do not leave LCD module in the environment of high humidity and high
temperature for a long time.
3. It's recommended to employ protection circuit for power supply.
Operation
1 Do not touch, push or rub the polarizer with anything harder than HB pencil lead.
2 Use fingerstalls of soft gloves in order to keep clean display quality, when persons
handle the LCD module for incoming inspection or assembly.
3 When the surface is dusty, please wipe gently with absorbent cotton or other soft
material
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.

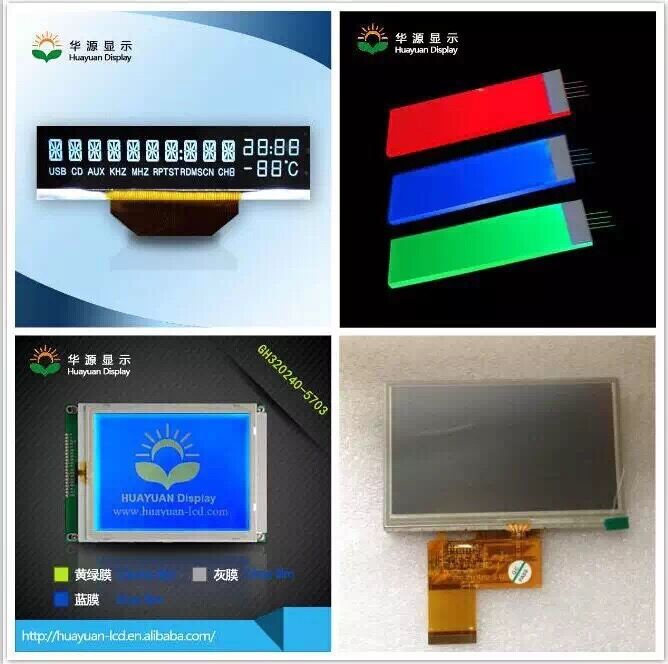

The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
