| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Combination: |
GPS |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
| Video Output: |
Video |
| Audio Output: |
Digital Optical Output |
Product Description

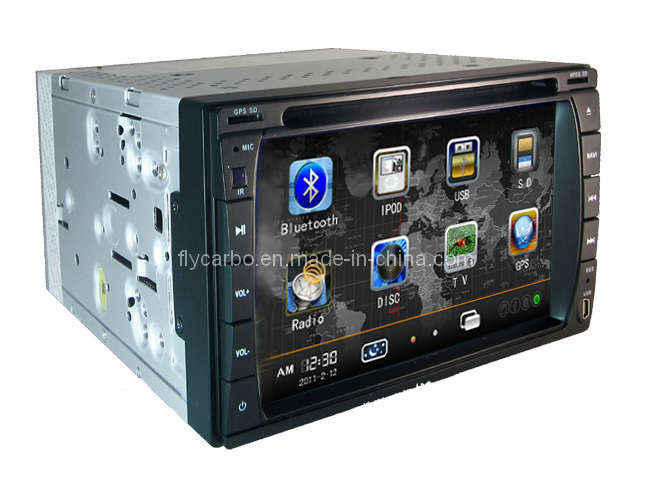

6.2 Inch 3d screen 2-DIN High Definition Car DVD Player System with DVB-T and GPS Navigator (FLY-U-6203D)
Specifications:
Primary Function: 2-DIN High Definition 6.2 Inch True Touchscreen Car DVD Player System with DVB-T and GPS Navigator and detachable security panel
Car navigation on-board processor: Samsung industrial grade S3C2440A CPU
Processor speed: 400MHz
DDR SDRAM: 64 MB
Internal Flash Memory: 128 MB
External Memory (SD card support): Up to 8GB (free 2GB SD card included)
Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
GPS specifications:
GPS receiving chip: Atheros AR1511
Advanced tracking: YES (-160dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage where the GPS was not possible before)
Receiver Type: L1 frequency band, C/A code, 20-channels
Tracking: -160dBm
Acquisition: -144dBm
Position: 3.0m CEP50 without SA (Typical Open Sky)
Velocity: 0.1m/s without SA
Timing (PPS): 60ns RMS
Cold Start: 36s (Typical Open Sky)
Warm Start: 30s
Hot Start: 2s
Re-Acquisition: <1s
Tracking: 35mA @3V Vcc (Typical)
Acquisition: 35mA
Navigation data update rate: 1Hz
Altitude: Max 18, 000m
Velocity: Max 515m/s
Acceleration: Less than 4g
GUI Interface: YES - 3D type
Touchscreen Interface: YES
Operating Environment: WIN CE 5.0
PIP (Picture in Picture) Function
Dual Zone Function
GPS Menu Languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Danish, Norwegian, Finnish, Czech, Greek (Actual voice and display language depends on GPS software package)
Disc compatibility: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
Media Formats Supported:
Video: DIVX 3 AVI, DIVX 5 AVI, DIVX 5 DIVX, MPEG 1/2, VOB, XVID AVI, XVID MP4, DAT
Audio: MP3, WMA, AAC, M4A
Picture: JPEG
External Memory:
USB Drive: YES (max 8 GB)
SD Card: YES (max 8 GB)
Operation: Touch Screen or Remote Control
Display Information:
Screen: 6.2 Inch TFT LCD
Resolution: 800 x 480
Video Systems: PAL, NTSC, AUTO
Audio Information:
Max Audio Output: 60W x 4
Signal-To-Noise Ratio (SNR): >85dB
User adjustable EQ: Bass, Treble, Balance, and Fade
DVD Information:
PIP (Picture in Picture) Function
Auto Play ON/OFF
16: 9, 4: 3 PS, 4: 3 LB
DVD Menu Languages: English, Chinese, German, Spanish, French, Italian, Russian
DVB-T Information:
DVB-T receiving standard: MPEG-2
Automatic and Manual Search
Display: 16: 9, 4: 3
PIP (Picture in Picture) Function
AM/FM Radio Tuner Information:
AM Frequency Range: 522~1710KHz (Worldwide)
FM Tuning Range: 87.5~108.0MHz (Worldwide)
RDS System: YES
PTY (Program Type), AF (Alternative Frequencies), TA (Traffic Announcements), Local DX Switch
Bluetooth Information:
Pair with mobile phone - then use touchscreen interface
Dial, Answer, Stop Call
Call History (Dialed, Received, Missed)
Volume Control
Touchscreen Keypad
Pair with your cellphone and play music from your phone through your car speakers
Media Inputs:
DVD/CD disc slot (above touchscreen)
SD/MMC card slot (under detachable panel)
GPS TF/microSD card slot (under detachable panel)
Mini USB input (front)
AUX input (front)
GPS Antenna (rear)
DVB-T Antenna (rear)
Front Panel Controls:
Power Button
Mode Button
AM/FM
GPS Button
Mute
Panel Eject Button
Disk Eject Button
Remote Control Sensor
Microphone
Tuning/Select Tracks
Mini-USB Port
Reset Button
AUX-IN
Volume Adjust
Primary AV Cables / Wires:
DVB-T antenna port IN
GPS antenna port IN
IPOD connector
Rearview CCD Camera IN
Video IN
Video OUT x2
Aux-L IN
Aux-R IN
Subwoofer
RCA Audio OUT x2 (front L and R)
RCA Audio OUT x2 (rear L and R)
Left Front Speaker x2
Right Front Speaker x2
Left Rear Speaker x2
Right Rear Speaker x2
Flycarbo electronic originally called feigeda electronics Co., Ltd (Chinese name feigeda), which founded in January 2005, is engaged in the design, production, marketing and sale of various types of small to medium sized liquid crystal display ("LCDs") and liquid crystal display modules ("LCMs").In the last several years, we got involved in manufacturing car electroni products, and have achieved a great success.
We focuses on produces monochrome twisted nematic ("TN"), monochrome super-twisted nematic ("STN"), monochrome film compensated STN ("FSTN"), color super-twisted nematic ("CSTN") LCD and thin film transistor ("TFT") LCDs panels and modules.These products are incorporated into a wide variety of products, including MP3/MP4 players, cellular telephones, digital cameras, digital photo frames, portable navigation displays, car DVD players, industrial controls and instruments and vehicle dashboard displays.We produces standard LCD and LCM products, as well as customized products designed and produced for specific customers.
Thus far, our car electronic products have been exported to America, Canada, South America, Europe and Southeast Asia etc.
Flycarbo has experienced management team, dedicated R&D team, sophisticated manufacturing experience, advanced equipments and reliable production technology.What's more, Flycarbo's reasonable products prices, timely delivery and stringent quality control systems make flycarbo one of the top suppliers of LCDs and LCMs in China, as well as car electronic products in near future we have big belief!
