| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Combination: |
GPS |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
| Video Output: |
Video |
| Audio Output: |
Digital Optical Output |
Product Description

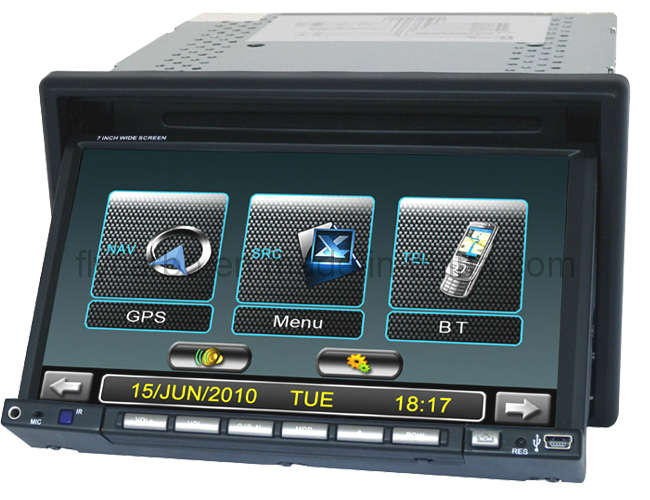

2-DIN High Definition 7 Inch True Touchscreen Car DVD Player System with DVB-T and GPS Navigator and 3D screen (FLY-U-7006D)
Specifications:
Car Navigation on-board Processor: Samsung industrial grade S3C2440A CPU
Processor Speed: 400MHz
DDR SDRAM: 64 MB
Internal Flash Memory: 128 MB
External Memory (SD card support): Up to 8GB (free 2GB SD card included)
Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
Disc compatibility: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
Operation: Touch Screen or Remote Control
OSD Languages: English, Simplified Chinese, Traditional Chinese, Arabic, Russian, Spanish, Vietnamese, Thai
Dimensions: 178 x 100 x 160 mm/7.00 x 3.93 x 6.29in(W x H x D) (with front panel: 180 mm) Subwoofer Output: FR/FL/RR/RL 4-channel RCA output (2V Preout)
GPS Specifications:
Dual Zone Function
GPS Menu Languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Danish, Norwegian, Finnish, Czech, Greek (Actual voice and display language depends on GPS software package)
GPS Receiving Chip: Advanced tracking: YES (-160dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage where the GPS was not possible before)
Receiver Type: L1 frequency band, C/A code, 20-channels
Tracking: -160dBm
Acquisition: -144dBm
Position: 3.0m CEP50 without SA (Typical Open Sky)
Velocity: 0.1m/s without SA
Timing (PPS): 60ns RMS
Cold Start: 36s (Typical Open Sky)
Warm Start: 30s
Hot Start: 2s
Re-Acquisition: <1s
Tracking: 35mA @3V Vcc (Typical)
Acquisition: 35mA
Navigation Data Update Rate: 1Hz
Altitude: Max 18, 000m
Velocity: Max 515m/s
Acceleration: Less than 4g
GUI Interface: YES - 3D type
Touchscreen Interface: YES
Operating Environment: WIN CE 5.0
PIP (Picture in Picture) Function
Media Formats Supported:
Video: DIVX 3 AVI, DIVX 5 AVI, DIVX 5 DIVX, MPEG 1/2, VOB, XVID AVI, XVID MP4, DAT
Audio: MP3, WMA, AAC, M4A
Picture: JPEG
External Memory:
USB Drive: YES (max 8 GB)
SD Card: YES (max 8 GB)
Display Information:
Screen: 7 Inch TFT LCD
Resolution: 800 x 480
Angle: 0-90 (Motorized sliding display panel)
Video Systems: PAL, NTSC, AUTO
Audio Information:
Max Audio Output: 60W x 4
Signal-To-Noise Ratio (SNR): >85dB
User adjustable EQ: Bass, Treble, Balance, and Fade
DVD Information:
This Auto DVD Player has PIP (Picture in Picture) Function
Auto Play ON/OFF Automobile DVD Player
16: 9, 4: 3 PS, 4: 3 LB
DVD Menu Languages: English, Chinese, German, Spanish, French, Italian, Russian
DVB-T Information:
DVB-T Receiving Standard: MPEG-2
Automatic and Manual Search
Display: 16: 9, 4: 3
PIP (Picture in Picture) Function
AM/FM Radio Tuner Information:
PTY (Program Type), AF (Alternative Frequencies), TA (Traffic Announcements), Local DX Switch
AM Frequency Range: 522~1710KHz (Worldwide)
FM Tuning Range: 87.5~108.0MHz (Worldwide)
RDS System: YES
Bluetooth Information:
Pair with mobile phone - then use touchscreen interface
Dial, Answer, Stop Call
Call History (Dialed, Received, Missed)
Volume Control
Touchscreen Keypad
Pair with your cellphone and play music from your phone through your car speakers
Media Inputs:
DVD/CD disc slot (behind touchscreen)
SD/MMC card slot (behind touchscreen)
GPS card slot (behind touchscreen)
Mini USB input (front)
AUX input (front)
GPS Antenna (rear)
DVB-T Antenna (rear)
Front Panel Controls:
Microphone
Power Button
Remote Control Sensor
Mini-USB Port
Reset Button
AUX-IN
Eject Button
Tuning/Select Tracks
Volume Adjust
Mute/GPS
Band Button
Mode Button
Primary AV Cables / Wires:
DVB-T antenna port IN
GPS antenna port IN
IPOD connector
Rearview CCD Camera IN
Video IN
Video OUT x2
Subwoofer
