5000 Series 46inch LCD Video Wall Display
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
5046-LSNB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
450nits |
Full HD Resolution: |
1920x1080p |
Display Mode: |
Single and Full Screen Display;Mxn Display |
Seam: |
5.7mm |
Panel Type: |
Samsung Did Industry AA Panel |
Advantage 1st.: |
DVI Digital Signal Transmission |
Advantage 2ND.: |
Embedded Imaging Processor Design |
Control Ways: |
IR Remote Controller, RS232 of Software |
Special Function: |
4-Channels Signal Splicing |
Type: |
TFT |
Application: |
Surveillance |
Aspect Ratio: |
16:9 |
Feature: |
LED Backlight Display |
Screen Size: |
46" |
Interface Type: |
HDMI, VGA, S-Video, Ypb/Pr, AV |
Product Description
Features:
1. Support M x N Group (Including: VGA, DVI, AV, Y/C, YPrPb, HDMI) video signal input at the same time.
2. Realize the multiple splcing by Matrix.
Display Mode:
Built-in Matrix.

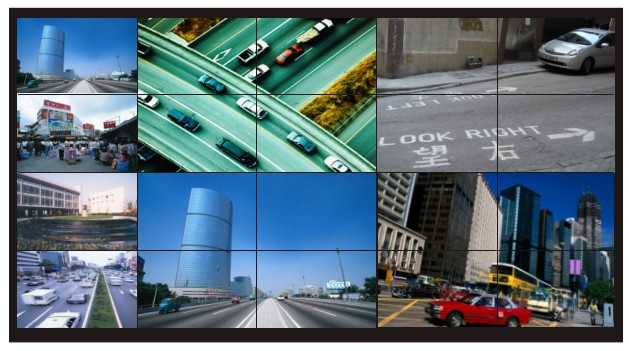

1. Splicing to full screen display by M x N.
2. Splicing display by any screen. Any four screens can multiple splicing display.
3. Realized more than four screens multiple splicing by external Matrix.
4. Each screen with different video.
Application Places:
1. Security Monitoring System: Support multi-channel videos by Matrix.
2. Command Center: Convention, Sport Event..
3. Information Management Center: Airport, Station, Exhibition Hall.
4. Video Conference Center: Group Company.
5. Distributed Management Center: Gas Station, Police Station.
Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows.
Products overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700cd, 3000:1 contrast ratio and 97% color saturation. having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° in horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.
Full HD DID LCD screen with built-in FPGA hardware control system which works smoothly and with package function. Equipped with composite video, Ypb/Pr, S-VIDEO, VGA, HDMI, TV and AV port. Full HD 1920X1080P is supported. DID LCD screen is an integrated entity, free of external accessories. easy for transportation and operation like building blocks. Any quantity LCD screens can be combined as per your needs.such as 2×2,4×4,2 ×4,...M×N.
Display Function Summarize:
Manual/Timing/Cruise/Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display.
Image Processing Technique:
An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing
Application:
LCD splicing display wall is widely used in surveillance command system, video conferencing system, advertising industry and news press. Ect
Applicative for 5000 series.
Pictures of Office,factory,production,QC.,Packing
Parameter |
Model: 5046-SNB |
Screen Diagonal |
46" |
Size(WxHxD)mm |
1025.9x580x100 |
Screen resolution |
1920x1080P |
Active display(HxV) |
1018.1X572.7 |
Color Saturation |
97% |
Brightness |
450nits |
Contrast |
3500: 1 |
Back light |
LED |
Refresh Frequency |
60HZ |
Display Color |
16.7M(8-bit) |
View Angle |
178° |
Seam |
5.7mm(gap between two screens) |
Input Interface |
HDMI, AV, YPr/Pb, S-VIDEO, VGA |
Signal Format |
NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P |
Control Interface |
RS232 and IR remote controller |
Image Processing Technique |
An original creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen. De-interlacing Technique will eliminate flash. Dynamic value compensate, 3D dynamic digital reduce sound, 3D pectination filtration, 10 digital brightness and increase color, image frame can select compensate and cover, full high definition signal real time processing |
Matrix Configuration |
Built-in digital matrix, need external matrix if signal Qty. more than screen Qty. |
Work Temperature |
0-50° |
Work Humidity |
15-75% |
Power Supply. |
AC220V-AC240V |
Average Power |
130W |
Net weight |
17KG |
Install way |
Wall hanging, Floor stand, Cabinet |
Recommend Use Location |
Security, control center, entertainment places, advertising, meeting center any indoor place you like. |
Display Function Summarize |
Manual/Timing/Cruise/Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display. |
Free accessories included: DIV cables, RS232 cables, AC power cables, IR remote, IR receiver, Controlling software DC, screws for installing bracket and display, user manual. |
