| Prod Model: |
DHF |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Blade Material: |
Stainless Steel |
Product Description

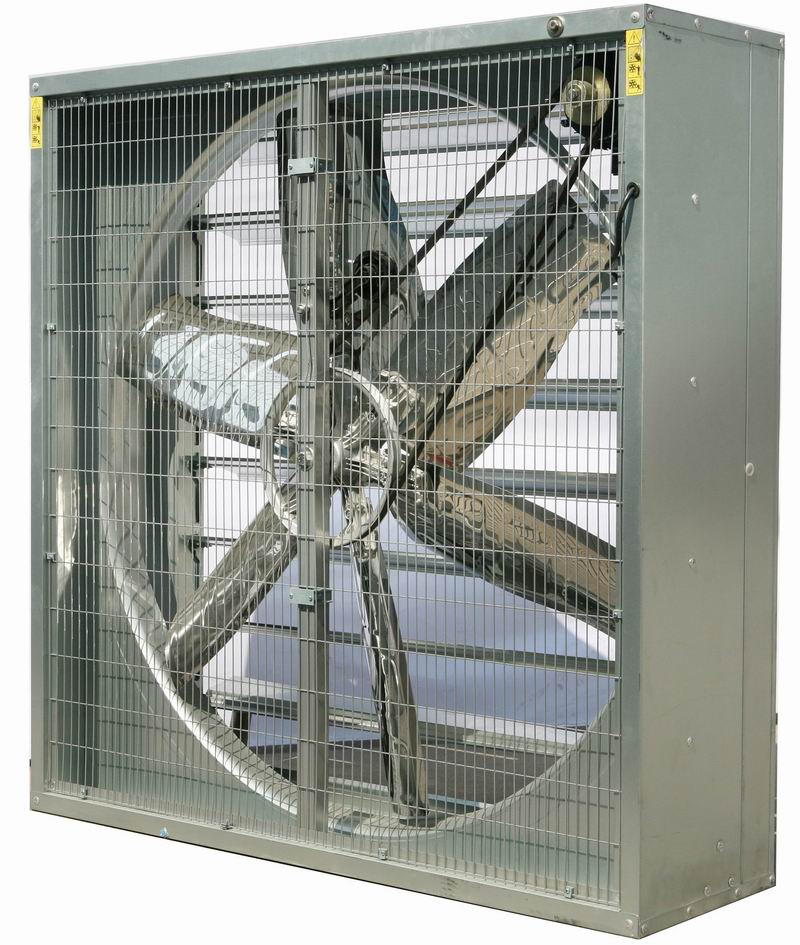

Brief Instroduction: Heavy duty fan is a further development of the well-recognized and provenHeavy duty fan and is the ideal exhaust fan whenever extra high airflow capacity is required. The unique propeller design is self-cleaning and allows the highest efficiency to be reached, features which characterize the high quality and excellent performance E-line product segment.
Ø Fan size: 1380mm× 1380mm× 400mm
Ø Frame: Hot galvanized sheet, high anti-corrosive durability. Frame thickness: 1.00
Ø Motor: China motor, CE certificate
Motor technical data: 380 Vor 220 1.5HP 50Hz
Motor protection grade: IP55, Insulation class F
Motor RPM: 1440r/min
Ø Noise: ≤ 64dB
Ø Blade diameter: φ 1250mm
Blade No.: 6
Blade material: 430BA stainless steel, Thickness 1.2mm
Blade RPM: 460r/min
Ø Heavy Hammer: Using high strength nylon pendulum opening device, shutters opening and closing flexible stable.
Ø Bearing: High strength, lower noise, and waterproof.
Ø Housing: Galvanized. Thickness 1mm
Ø Belt pulley: Aluminum alloy, light weight, high-strength
Ø Air flow: 42000m3/h
|
The Technical Data of Heavy Hammer Fan/Exhaust Fan/Cooling pad |
|
Model |
Diameter blade/mm |
Diameter No.s |
Frequency/ HZ |
Air volume/ m 3 /h |
Power/kw |
Noise(db) |
Voltage/v |
Size (mm) |
|
DHF-800 |
710 |
6 |
50 |
16000 |
0.37 |
≤64 |
380 |
800x800x400 |
|
DHF-900 |
750 |
6 |
50 |
18000 |
0.55 |
≤64 |
380 |
900x900x400 |
|
DHF-1000 |
900 |
6 |
50 |
20800 |
0.55 |
≤64 |
380 |
1000x1000x400 |
|
DHF-1100 |
1000 |
6 |
50 |
28000 |
0.75 |
≤64 |
380 |
1100x1100x400 |
|
DHF-1220 |
1100 |
6 |
50 |
34000 |
0.75 |
≤64 |
380 |
1220x1220x400 |
|
DHF-1380 |
1250 |
6 |
50 |
40000 |
1.1 |
≤64 |
380 |
1380x1380x400 |
|
DHF-1530 |
1400 |
6 |
50 |
48000 |
1.5 |
≤64 |
380 |
1530x15300x400
|
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
