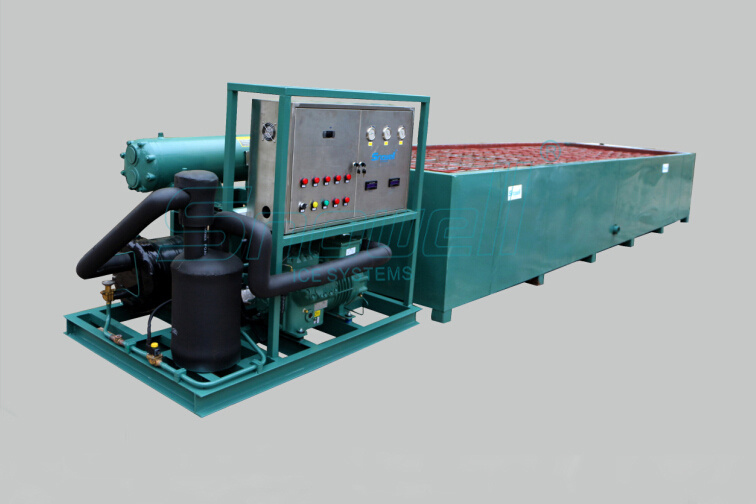

5 Ton Capacity of Block Ice Machine with Bock Compressor
| Price: |
US $ 25000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
B-5TR4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
Product Description
SNOWELL series of ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania. This machinery units adopt the integrated design, easy to install, just need connect the power.
1, Production: 1ton per day to 100tons per day.
2, Ice design: Ice block machine for produce big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg.
3, Application: For some country, specially, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
4, Installation: Just need connect the water pipes and power for the machine, the compressor unit and birne tank are be ready in our factory, customer just need accessamble the cooling tower as the installtion book.| ZB-5T Block Ice Machine Specification: |
| NO. | Block ice specification | Ice can (PCS) | Making-icetime
(H) | Qty/24h
(PCS) | Weight
(Kg/PC) |
| 1 | L200mm*W100mm*H600mm | 126 | 6 | 504 | 10 |
| ZB-5T Block Ice Machine Operation Condition: |
| 1,Max ambient temp. | +400C |
| 2. Related humidity | 85% |
| 3. Water temp. | 160C |
| 4. Supply power | 380V~420V/3Phase/50Hz |
| 5. Refrigerant | R404A |
| 6.Compressor | Screw compressor |
| 7. Cooled mode | Water cooled |
3. ZB-5T Block Ice Machine Technical date:| No. | Specifiction | Date |
| 1 | Description | Block ice machine |
| 2 | Model | ZB-5T |
| 3 | Qty | 1Set |
| 4 | Daily capacity | 5T/D |
| 5 | Machine weight | 6200kg |
| 6 | Size | Brine pool:40'(1 PC) |
| 7 | Power line | 40mm²Cu |
| 8 | Refrigerant | R404A |
| 9 | Evaporative temp. | -20ºC |
| 10 | Condensing temp. | 35ºC |
| 11 | Refrigerant capacity | 50kw |
| 12 | Inlet water temp. | 16ºC |
| 13 | Ambient temp. | 35ºC |
| 14 |

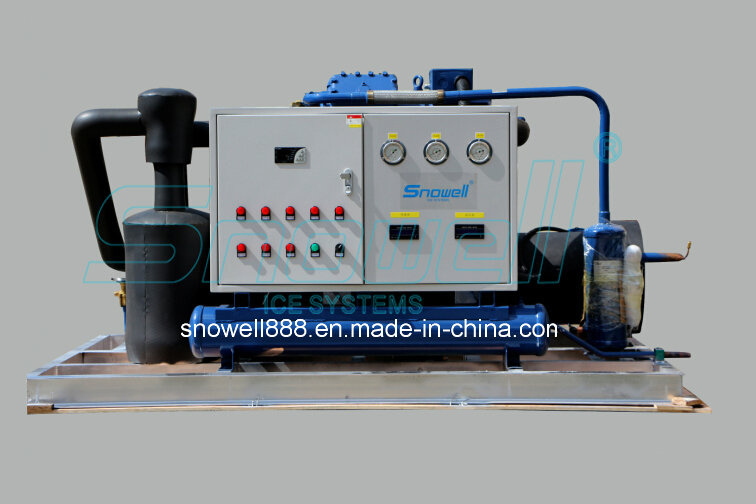

Compressor
| Mode | Screw compressor |
| Brand | Taiwan hanbell |
| Model | RC2-B-Z |
| Power | 19kW |
| Qty | 1 PC |
| 19 | Blender motor power | 2.2KW |
20 | Ice can | Size | L200mm * W100mm*H600mm |
| Qty | 126PCS |
| Material | 1.5mm galvanized panel |
| 21 | Ice weight | 10kg/pc |
| 22 | Ice temp. | -14ºC |
| | Ice density | 900~950kg/m3 |
| 23 | Noise | 72dBA |
4. ZB-5T Main Equipment :| No | Description | Brand | Origin |
| 1 | Compressor | BITZER | CHINA |
| 2 | Evaporator | SNOWELL |
CHIAN |
| 3 | Condenser | LIANHE |
| 4 | Expansion valve | DANFOSS | DANMARK |
| 5 | solenoid valve | DANFOSS | DANMARK |
| 6 | Electrical equipment | LS(LG) | KOREA |
| 7 | Other refrigeration equipment | DANFOSS | DANMARK |
5. ZB-5T Mian Assistance Equipment:| No. | Description | Qty | Material |
| 1 | Lifting crane | 1 PC | / |
| 2 | Automtic pour water device | 1 Set | Steel panel antisepsis treat |
| 3 | Automtic out ice device | 1Set | Steel panel antisepsis treat |
| 4 | Water pump | 4 PCS | / |
| 5 | Ice clamp | 1 PCS | / |
Note:Above date only for reference, The specification date is according to machine require.
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
